owners manual Volvo XC60

all ratings: 0 average rating: 5

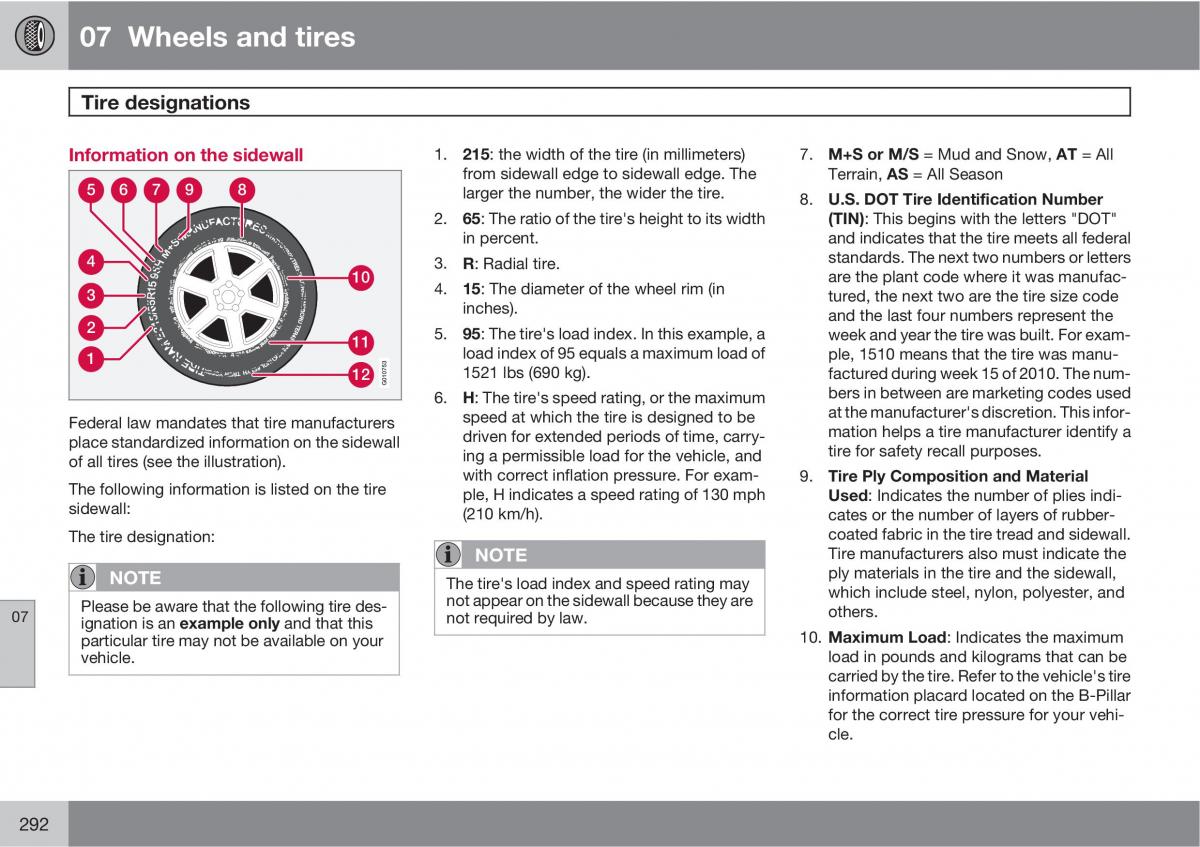

07 Wheels and tires Tire designations Information on the sidewall 1. 215: the width of the tire (in millimeters) 7. M+S or M/S = Mud and Snow, AT = All from sidewall edge to sidewall edge. The Terrain, AS = All Season 5 6 7 9 8 larger the number, the wider the tire. 8. U.S. DOT Tire Identification Number 2. 65: The ratio of the tire's height to its width (TIN): This begins with the letters "DOT" in percent. and indicates that the tire meets all federal 4 3. R: Radial tire. standards. The next two numbers or letters 10 4. 15: The diameter of the wheel rim (in are the plant code where it was manufac- 3 inches). tured, the next two are the tire size code 2 and the last four numbers represent the 11 5. 95: The tire's load index. In this example, a week and year the tire was built. For exam- 1 load index of 95 equals a maximum load of ple, 1510 means that the tire was manu- 12 1521 lbs (690 kg). factured during week 15 of 2010. The num- G010753 bers in between are marketing codes used 6. H: The tire's speed rating, or the maximum at the manufacturer's discretion. This infor- Federal law mandates that tire manufacturers speed at which the tire is designed to be mation helps a tire manufacturer identify a place standardized information on the sidewall driven for extended periods of time, carry- tire for safety recall purposes. of all tires (see the illustration). ing a permissible load for the vehicle, and The following information is listed on the tire with correct inflation pressure. For exam- 9. Tire Ply Composition and Material sidewall: ple, H indicates a speed rating of 130 mph Used: Indicates the number of plies indi- (210 km/h). cates or the number of layers of rubber- The tire designation: coated fabric in the tire tread and sidewall. NOTE Tire manufacturers also must indicate the NOTE The tire's load index and speed rating may ply materials in the tire and the sidewall, Please be aware that the following tire des- not appear on the sidewall because they are which include steel, nylon, polyester, and 07 ignation is an example only and that this not required by law. others. particular tire may not be available on your 10. Maximum Load: Indicates the maximum vehicle. load in pounds and kilograms that can be carried by the tire. Refer to the vehicle's tire information placard located on the B-Pillar for the correct tire pressure for your vehi- cle. 292
