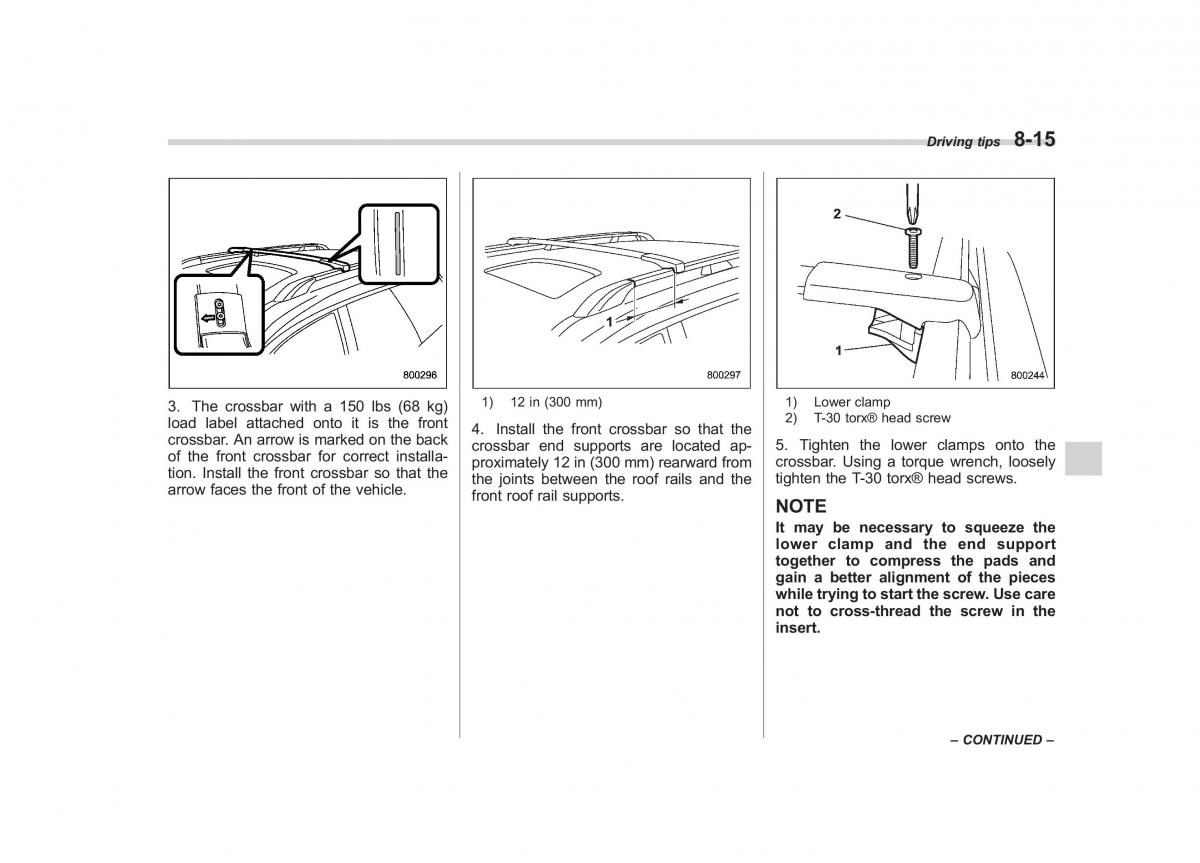

Driving tips8-15
3. The crossbar with a 150 lbs (68 kg)1)12 in (300 mm) 1) Lower clamp
load label attached onto it is the front 2) T-30 torx® head screw
crossbar. An arrow is marked on the back4. Install the front crossbar so that the
crossbar end supports are located ap-5. Tighten the lower clamps onto the
of the front crossbar for correct installa-proximately 12 in (300 mm) rearward fromcrossbar. Using a torque wrench, loosely
tion. Install the front crossbar so that thethe joints between the roof rails and thetighten the T-30 torx® head screws.
arrow faces the front of the vehicle.front roof rail supports.
NOTE
It may be necessary to squeeze the
lower clamp and the end support
together to compress the pads and
gain a better alignment of the pieces
while trying to start the screw. Use care
not to cross-thread the screw in the
insert.
– CONTINUED –
