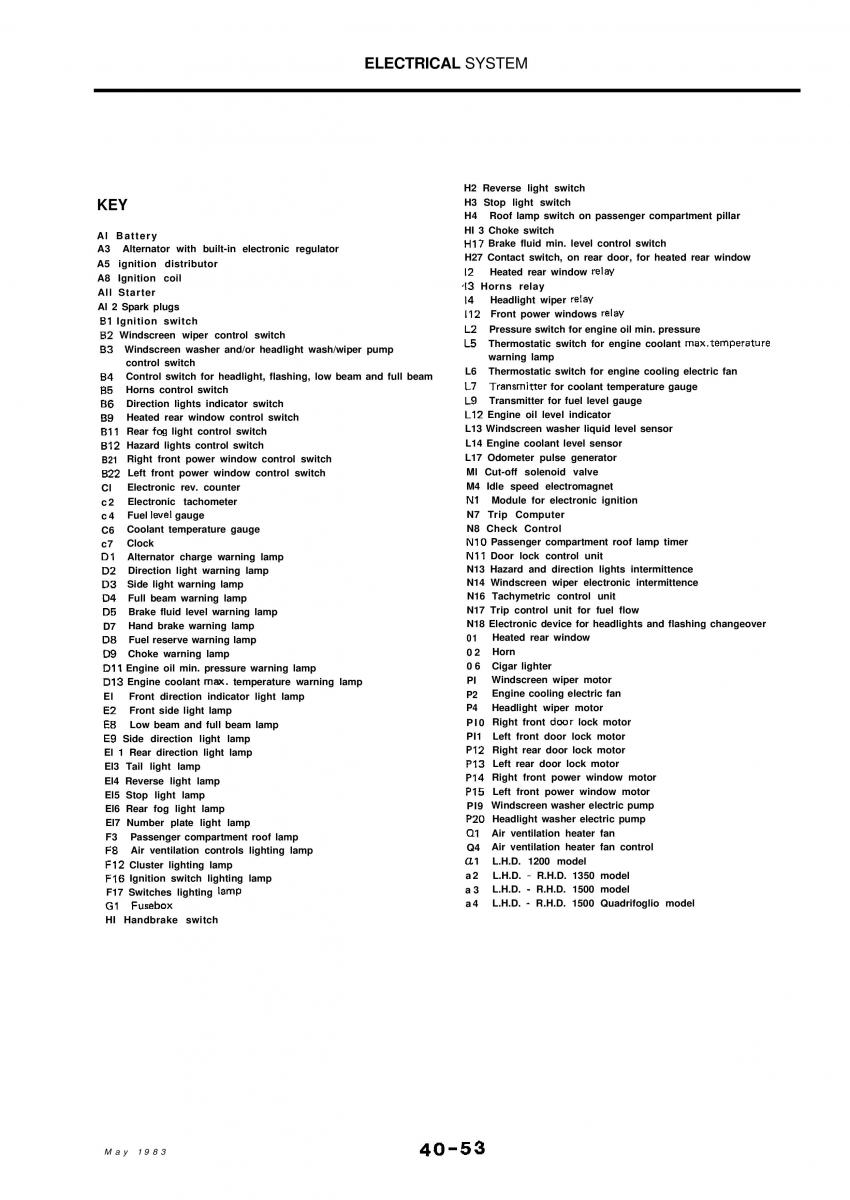

ELECTRICAL SYSTEM H2 Reverse light switch KEY H3 Stop light switch H4 Roof lamp switch on passenger compartment pillar Al Battery HI 3 Choke switch HI7 Brake fluid min. level control switch A3 Alternator with built-in electronic regulator A5 ignition distributor H27 Contact switch, on rear door, for heated rear window A8 Ignition coil I2 Heated rear windowrelay All Starter ,I3 Horns relay Al 2 Spark plugs 14 Headlight wiperrelay Bl Ignition switch I12 Front power windowsrelay L2 Pressure switch for engine oil min. pressure 82 Windscreen wiper control switch L5 Thermostatic switch for engine coolantmax.temperature 83 Windscreen washer and/or headlight wash/wiper pump control switch warning lamp L6 Thermostatic switch for engine cooling electric fan 84 Control switch for headlight, flashing, low beam and full beam 85 Horns control switch L7 Transmirter for coolant temperature gauge B6 Direction lights indicator switch L9 Transmitter for fuel level gauge B9 Heated rear window control switch L12 Engine oil level indicator I311Rear fog light control switch L13 Windscreen washer liquid level sensor 812 Hazard lights control switch L14 Engine coolant level sensor L17 Odometer pulse generator B21 Right front power window control switch Ml Cut-off solenoid valve 822 Left front power window control switch Cl Electronic rev. counter M4 Idle speed electromagnet c2 Electronic tachometer Nl Module for electronic ignition c4 Fuel lwel gauge N7 Trip Computer C6 Coolant temperature gauge N8 Check Control c7 Clock NlO Passenger compartment roof lamp timer Dl Alternator charge warning lamp Nil Door lock control unit 02 Direction light warning lamp N13 Hazard and direction lights intermittence 03 Side light warning lamp N14 Windscreen wiper electronic intermittence 04 Full beam warning lamp N16 Tachymetric control unit 05 Brake fluid level warning lamp N17 Trip control unit for fuel flow D7 Hand brake warning lamp N18 Electronic device for headlights and flashing changeover 08 Fuel reserve warning lamp 01 Heated rear window 09 Choke warning lamp 02 Horn 06 Cigar lighter Dll Engine oil min. pressure warning lamp 013 Engine coolantmBy. temperature warning lamp PI Windscreen wiper motor P2 Engine cooling electric fan El Front direction indicator light lamp E2 Front side light lamp P4 Headlight wiper motor ES Low beam and full beam lamp PI0 Right frontdoor lock motor PI1 Left front door lock motor E9 Side direction light lamp El 1 Rear direction light lamp PI2 Right rear door lock motor El3 Tail light lamp PI3 Left rear door lock motor El4 Reverse light lamp PI4 Right front power window motor El5 Stop light lamp PI5 Left front power window motor El6 Rear fog light lamp PI9 Windscreen washer electric pump El7 Number plate light lamp P20 Headlight washer electric pump F3 Passenger compartment roof lamp Cl1 Air ventilation heater fan Q4 Air ventilation heater fan control F8 Air ventilation controls lighting lamp F12 Cluster lighting lamp ai L.H.D. 1200 model F16 Ignition switch lighting lamp a2 L.H.D. - R.H.D. 1350 model F17 Switches lightinglamp a3 L.H.D. - R.H.D. 1500 model Gl Fusebox a4 L.H.D. - R.H.D. 1500 Quadrifoglio model HI Handbrake switch May 1983 40-53
