text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

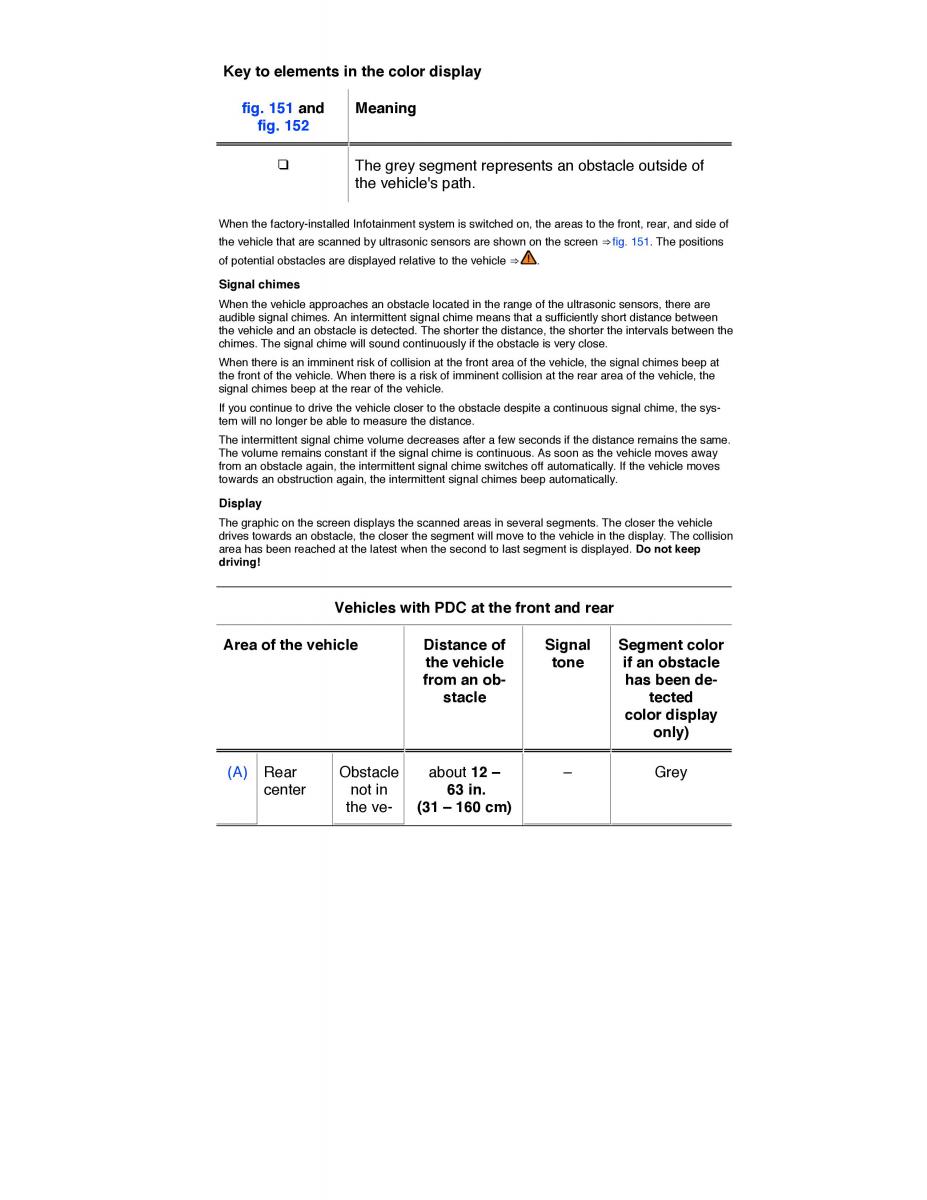

Key to elements in the color display fig. 151 and Meaning fig. 152 c The grey segment represents an obstacle outside of the vehicle's path. When the factory-installed Infotainment system is switched on, the areas to the front, rear, and side of the vehicle that are scanned by ultrasonic sensors are shown on the screen ⇒ fig. 151. The positions of potential obstacles are displayed relative to the vehicle ⇒ . Signal chimes When the vehicle approaches an obstacle located in the range of the ultrasonic sensors, there are audible signal chimes. An intermittent signal chime means that a sufficiently short distance between the vehicle and an obstacle is detected. The shorter the distance, the shorter the intervals between the chimes. The signal chime will sound continuously if the obstacle is very close. When there is an imminent risk of collision at the front area of the vehicle, the signal chimes beep at the front of the vehicle. When there is a risk of imminent collision at the rear area of the vehicle, the signal chimes beep at the rear of the vehicle. If you continue to drive the vehicle closer to the obstacle despite a continuous signal chime, the sys- tem will no longer be able to measure the distance. The intermittent signal chime volume decreases after a few seconds if the distance remains the same. The volume remains constant if the signal chime is continuous. As soon as the vehicle moves away from an obstacle again, the intermittent signal chime switches off automatically. If the vehicle moves towards an obstruction again, the intermittent signal chimes beep automatically. Display The graphic on the screen displays the scanned areas in several segments. The closer the vehicle drives towards an obstacle, the closer the segment will move to the vehicle in the display. The collision area has been reached at the latest when the second to last segment is displayed. Do not keep driving! Vehicles with PDC at the front and rear Area of the vehicle Distance of Signal Segment color the vehicle tone if an obstacle from an ob- has been de- stacle tected color display only) (A) Rear Obstacle about 12 –– Grey center not in 63 in. the ve-(31 – 160 cm)
