L

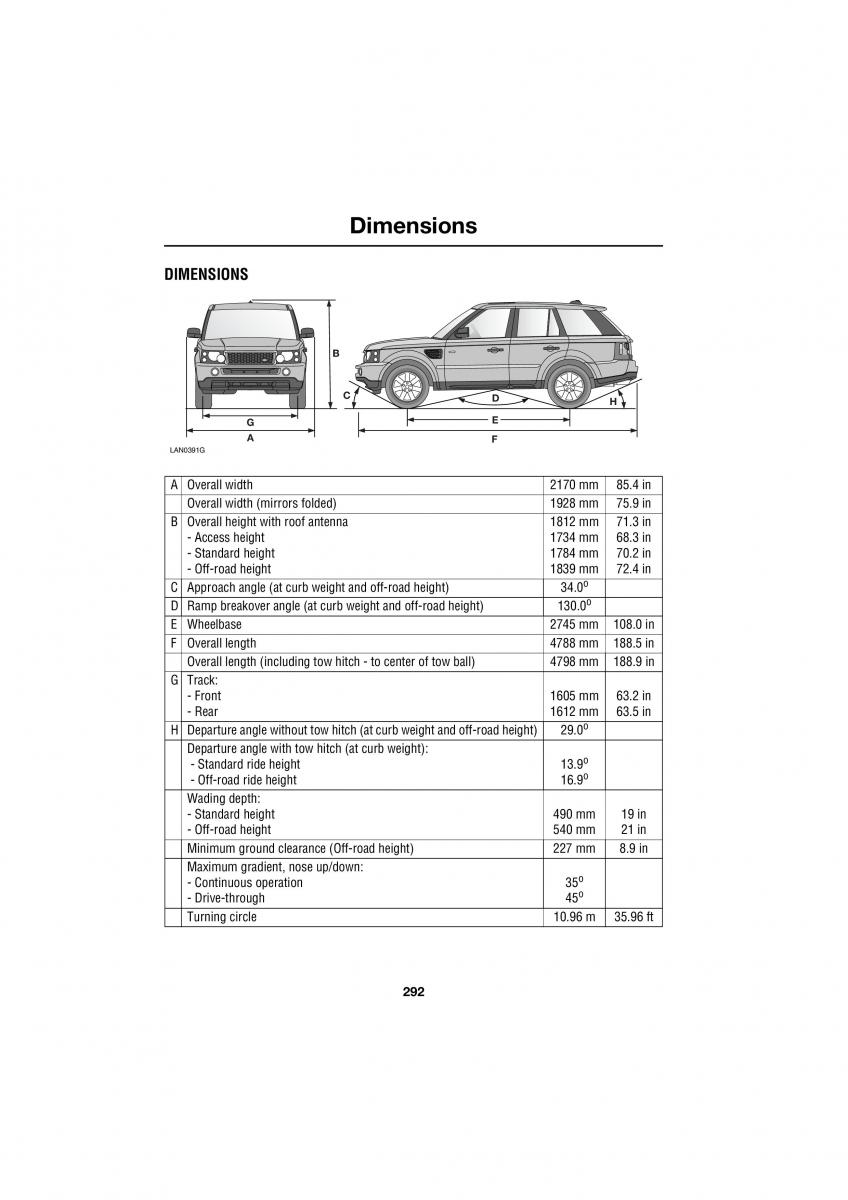

Dimensions
Dimensions
DIMENSIONS
B
C D H
G E
A F
LAN0391G
A Overall width 2170 mm 85.4 in
Overall width (mirrors folded) 1928 mm 75.9 in
B Overall height with roof antenna 1812 mm 71.3 in
- Access height 1734 mm 68.3 in
- Standard height 1784 mm 70.2 in
- Off-road height 1839 mm 72.4 in
C Approach angle (at curb weight and off-road height) 34.0o
D Ramp breakover angle (at curb weight and off-road height) 130.0o
E Wheelbase 2745 mm 108.0 in
F Overall length 4788 mm 188.5 in
Overall length (including tow hitch - to center of tow ball) 4798 mm 188.9 in
GTrack:
- Front 1605 mm 63.2 in
- Rear 1612 mm 63.5 in
H Departure angle without tow hitch (at curb weight and o ff-road height) 29.0 o
Departure angle with tow hitch (at curb weight):
- Standard ride height 13.9o
- Off-road ride height 16.9o
Wading depth:
- Standard height 490 mm 19 in
- Off-road height 540 mm 21 in
Minimum ground clearance (Off-road height) 227 mm 8.9 in
Maximum gradient, nose up/down:
o
- Continuous operation 35
o
- Drive-through 45
Turning circle 10.96 m 35.96 ft
292
