owners manual Chevrolet Camaro

owners manual Chevrolet Camaro - year of production: 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002 - Chevrolet Camaro IV 4 owners manual EN

Document: pdf (21.11 MB) 404 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Chevrolet Camaro, year of production 1993 - 2002:

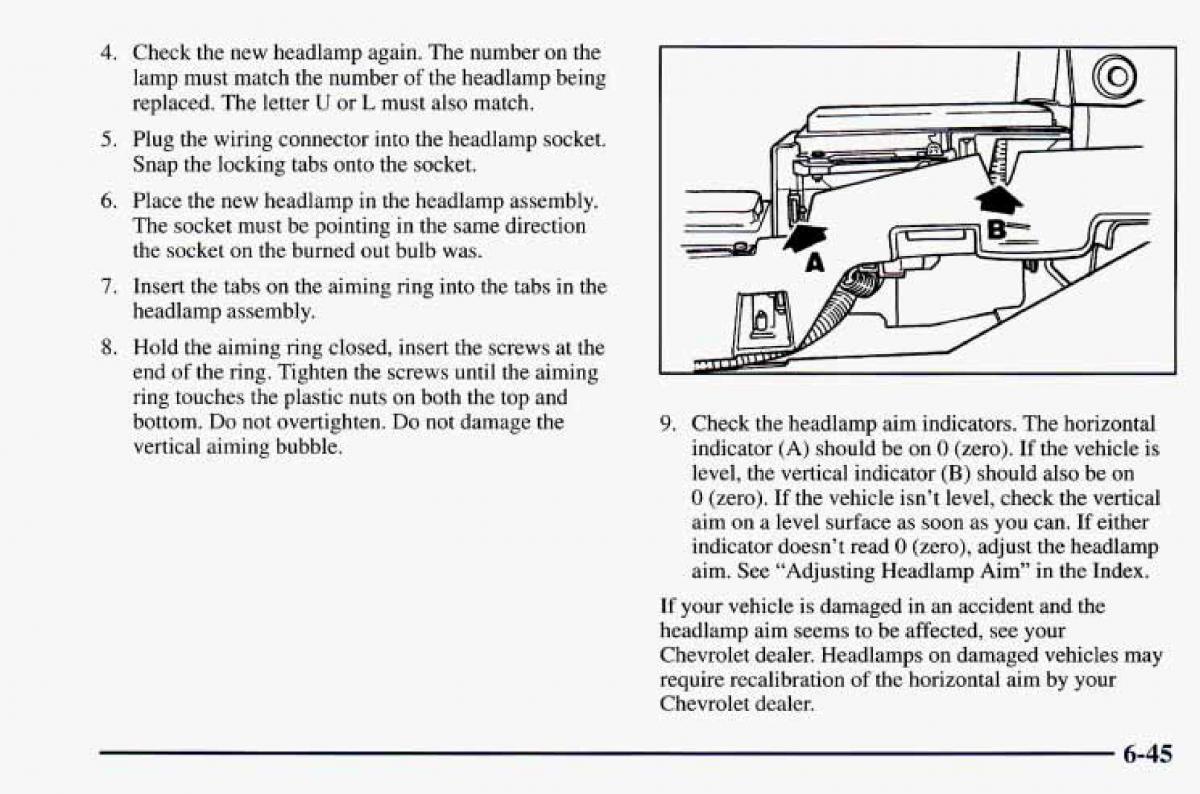

4. Check the new headlamp again. The number on the lamp must match the number of the headlamp being replaced. The letter U or L must also match. zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA 5. Plug the wiring connector into the headlamp socket. Snap the locking tabs onto the socket. 6. Place the new headlamp in the headlamp assembly. The socket must be pointing in the same direction the socket on the burned out bulb was. 7. Insert the tabs on the aiming ring into the tabs in the zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA headlamp assembly. 8. Hold the aiming ring closed, insert the screws at the end of the ring. Tighten the screws until the aiming ring touches the plastic nuts on both the top and bottom. Do not overtighten. Do not damage the 9. Check the headlamp aim indicators. The horizontal vertical aiming bubble. indicator (A) should be on 0 (zero). If the vehicle is level, the vertical indicator (B) should also be on 0 (zero). If the vehicle isn’t level, check the vertical If either aim on a level surface as soon as you can. indicator doesn’t read 0 (zero), adjust the headlamp aim. See “Adjusting Headlamp Aim’’ in the Index. If your vehicle is damaged in an accident and the headlamp aim seems to be affected, see your Chevrolet dealer. Headlamps on damaged vehicles may require recalibration of the horizontal aim by your Chevrolet dealer. zyxwvutsrqponmlkjihgfedcbaZYXWVUTSRQPONMLKJIHGFEDCBA 6-45
