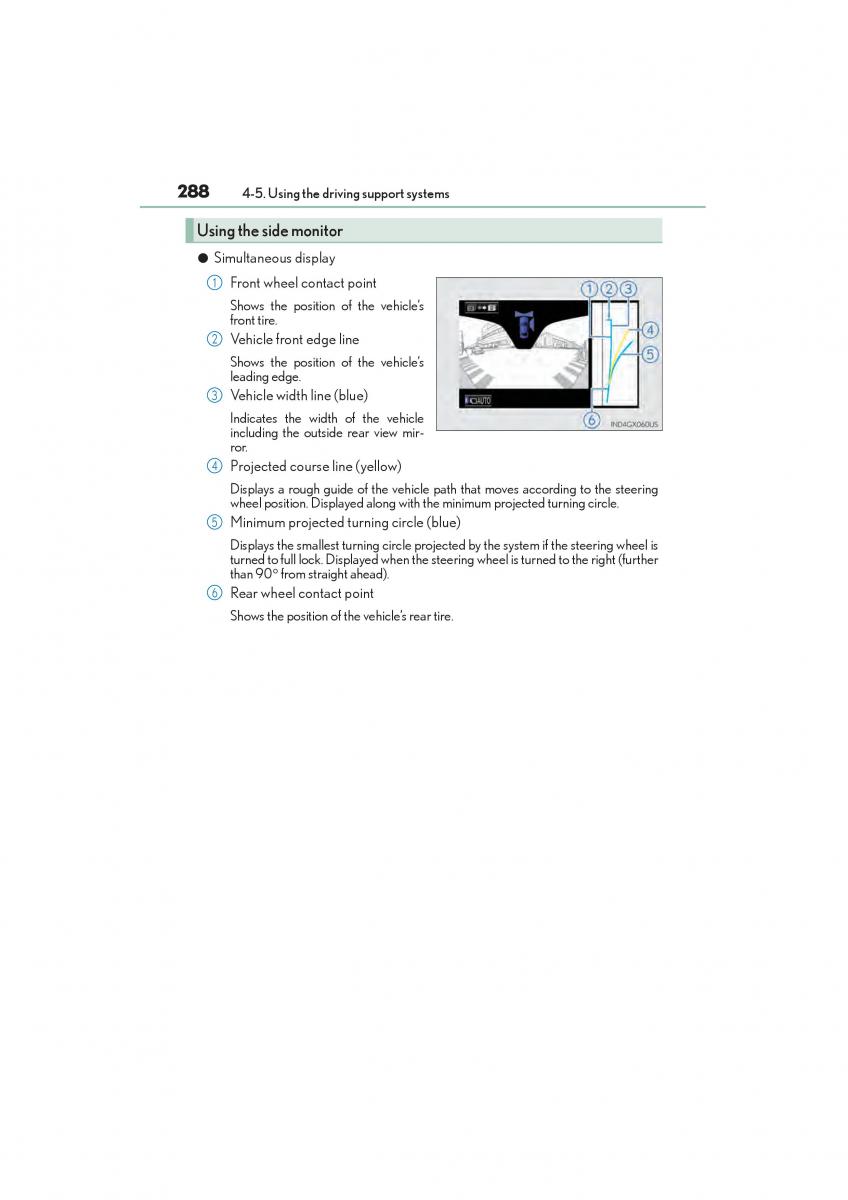

GX460_OM_OM60L72U_(U).book Page 288 Friday, May 16, 2014 3:03 PM 288 4-5. Using the driving support systems Using the side monitor ● Simultaneous display 1 Front wheel contact point Shows the position of the vehicle’s front tire. 2 Vehicle front edge line Shows the position of the vehicle’s leading edge. 3 Vehicle width line (blue) Indicates the width of the vehicle including the outside rear view mir- ror. 4 Projected course line (yellow) Displays a rough guide of the vehicle path that moves according to the steering wheel position. Displayed along with the minimum projected turning circle. 5 Minimum projected turning circle (blue) Displays the smallest turning circle projected by the system if the steering wheel is turned to full lock. Displayed when the steering wheel is turned to the right (further than 90° from straight ahead). 6 Rear wheel contact point Shows the position of the vehicle’s rear tire. GX460_OM_OM60L72U_(U)
