text version of content this owner's manual page from owners manual to the vehicle Audi A5, year of production 2007:

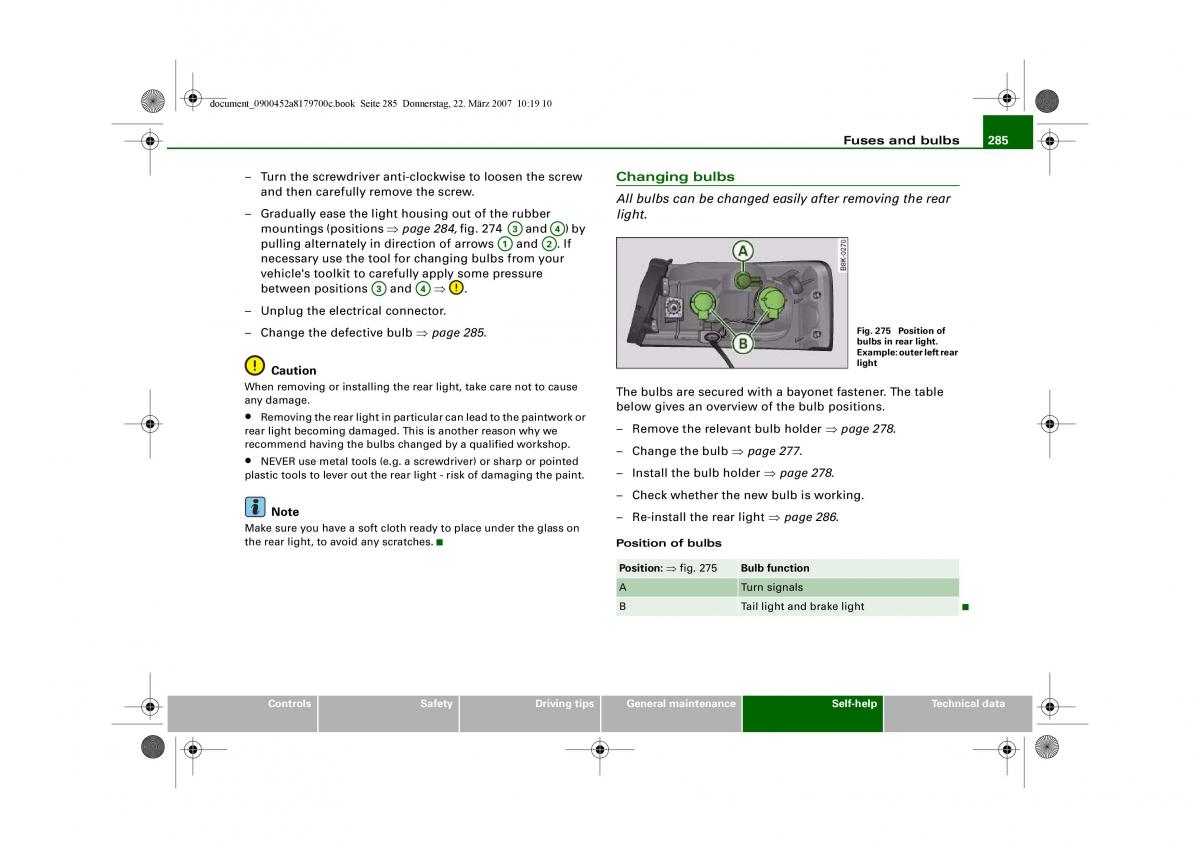

document_0900452a8179700c.book Seite 285 Donnerstag, 22. März 2007 10:19 10 Fuses and bulbs 285 – Turn the screwdriver anti-clockwise to loosen the screw Changing bulbs and then carefully remove the screw. All bulbs can be changed easily after removing the rear – Gradually ease the light housing out of the rubber light. mountings (positions ⇒ page 284, fig. 274 3 and 4) by A A pulling alternately in direction of arrows 1 and 2 . If A A necessary use the tool for changing bulbs from your vehicle's toolkit to carefully apply some pressure between positions 3 and 4 ⇒ . A A – Unplug the electrical connector. – Change the defective bulb ⇒ page 285. Fig. 275 Position of bulbs in rear light. Example: outer left rear Caution light When removing or installing the rear light, take care not to cause The bulbs are secured with a bayonet fastener. The table any damage. below gives an overview of the bulb positions. • Removing the rear light in particul ar can lead to the paintwork or rear light becoming damaged. This is another reason why we – Remove the relevant bulb holder ⇒ page 278. recommend having the bulbs changed by a qualified workshop.–Change the bulb⇒ page 277. • NEVER use metal tools (e.g. a screwdriver) or sharp or pointed plastic tools to lever out the rear light - risk of damaging the paint.– Install the bulb holder ⇒ page 278. – Check whether the new bulb is working. Note – Re-install the rear light ⇒ page 286. Make sure you have a soft cloth ready to place under the glass on the rear light, to avoid any scratches. Position of bulbs Position: ⇒ fig. 275Bulb function A Turn signals B Tail light and brake light Controls Safety Driving tips General maintenance Self-help Technical data
