volvo S80 II 2 owners manual page 287

text version of content this owner's manual page from owners manual to the vehicle Volvo S80, year of production 2006 - 2015:

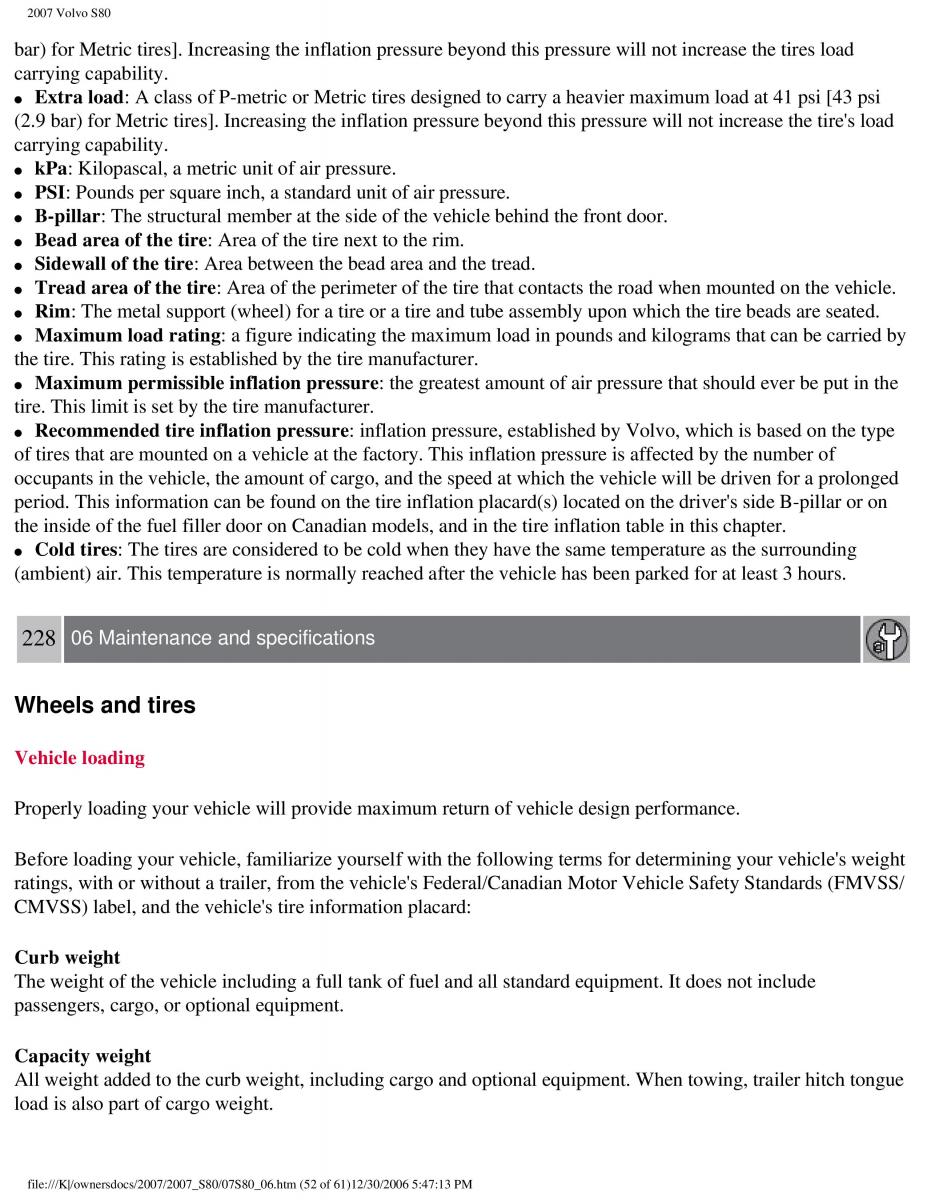

2007 Volvo S80 bar) for Metric tires]. Increasing the inflation pressure beyond this pressure will not increase the tires load carrying capability. ● Extra load: A class of P-metric or Metric tires designed to carry a heavier maximum load at 41 psi [43 psi (2.9 bar) for Metric tires]. Increasing the inflation pressure beyond this pressure will not increase the tire's load carrying capability. ● kPa: Kilopascal, a metric unit of air pressure. ● PSI: Pounds per square inch, a standard unit of air pressure. ● B-pillar: The structural member at the side of the vehicle behind the front door. ● Bead area of the tire: Area of the tire next to the rim. ● Sidewall of the tire: Area between the bead area and the tread. ● Tread area of the tire: Area of the perimeter of the tire that contacts the road when mounted on the vehicle. ● Rim: The metal support (wheel) for a tire or a tire and tube assembly upon which the tire beads are seated. ● Maximum load rating: a figure indicating the maximum load in pounds and kilograms that can be carried by the tire. This rating is established by the tire manufacturer. ● Maximum permissible inflation pressure: the greatest amount of air pressure that should ever be put in the tire. This limit is set by the tire manufacturer. ● Recommended tire inflation pressure: inflation pressure, established by Volvo, which is based on the type of tires that are mounted on a vehicle at the factory. This inflation pressure is affected by the number of occupants in the vehicle, the amount of cargo, and the speed at which the vehicle will be driven for a prolonged period. This information can be found on the tire inflation placard(s) located on the driver's side B-pillar or on the inside of the fuel filler door on Canadian models, and in the tire inflation table in this chapter. ● Cold tires: The tires are considered to be cold when they have the same temperature as the surrounding (ambient) air. This temperature is normally reached after the vehicle has been parked for at least 3 hours. 228 06 Maintenance and specifications Wheels and tires Vehicle loading Properly loading your vehicle will provide maximum return of vehicle design performance. Before loading your vehicle, familiarize yourself with the following terms for determining your vehicle's weight ratings, with or without a trailer, from the vehicle's Federal/Canadian Motor Vehicle Safety Standards (FMVSS/ CMVSS) label, and the vehicle's tire information placard: Curb weight The weight of the vehicle including a full tank of fuel and all standard equipment. It does not include passengers, cargo, or optional equipment. Capacity weight All weight added to the curb weight, including cargo and optional equipment. When towing, trailer hitch tongue load is also part of cargo weight. file:///K|/ownersdocs/2007/2007_S80/07S80_06.htm (52 of 61)12/30/2006 5:47:13 PM
