text version of content this owner's manual page from owners manual to the vehicle Chevrolet Astro, year of production 1995 - 2005:

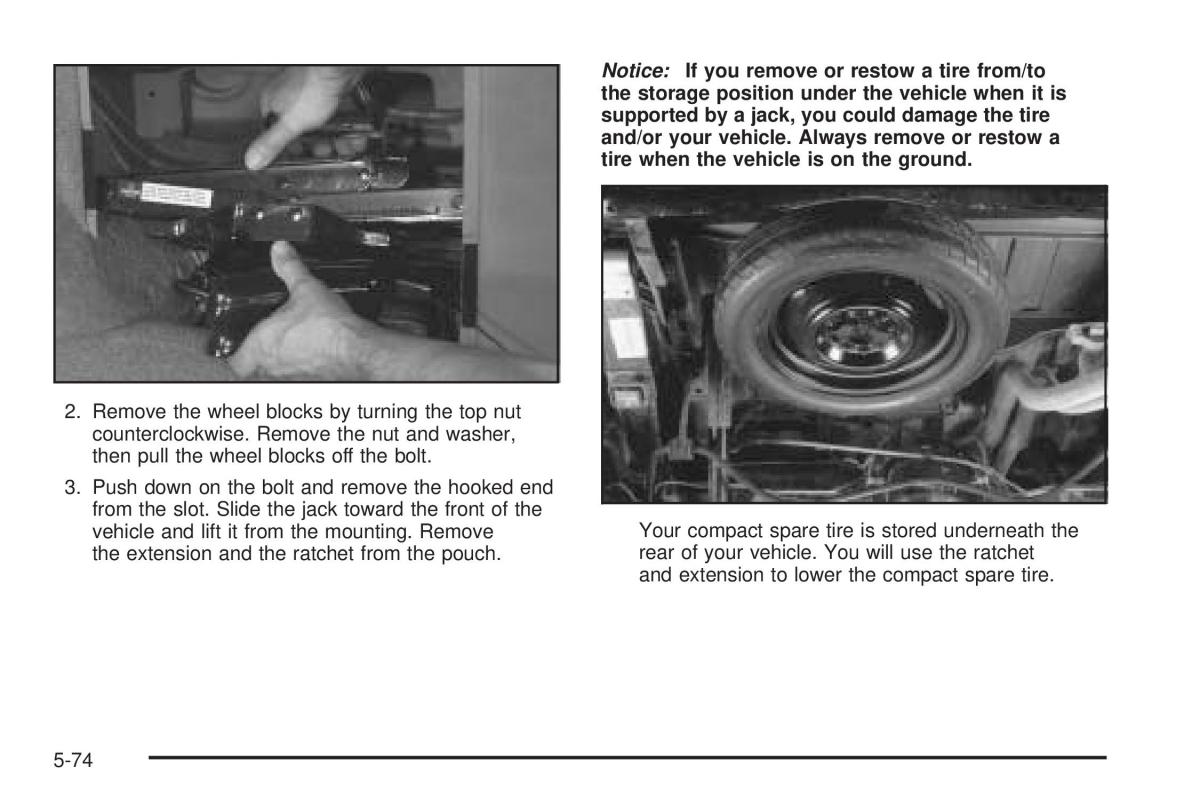

Notice: If you remove or restow a tire from/to the storage position under the vehicle when it is supported by a jack, you could damage the tire and/or your vehicle. Always remove or restow a tire when the vehicle is on the ground. 2. Remove the wheel blocks by turning the top nut counterclockwise. Remove the nut and washer, then pull the wheel blocks off the bolt. 3. Push down on the bolt and remove the hooked end from the slot. Slide the jack toward the front of the vehicle and lift it from the mounting. RemoveYour compact spare tire is stored underneath the the extension and the ratchet from the pouch.rear of your vehicle. You will use the ratchet and extension to lower the compact spare tire. 5-74
