owners manual Peugeot Traveller

owners manual Peugeot Traveller - year of production: 2016 - Peugeot Traveller owners manual EN

Document: pdf (15.01 MB) 607 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Peugeot Traveller, year of production 2016:

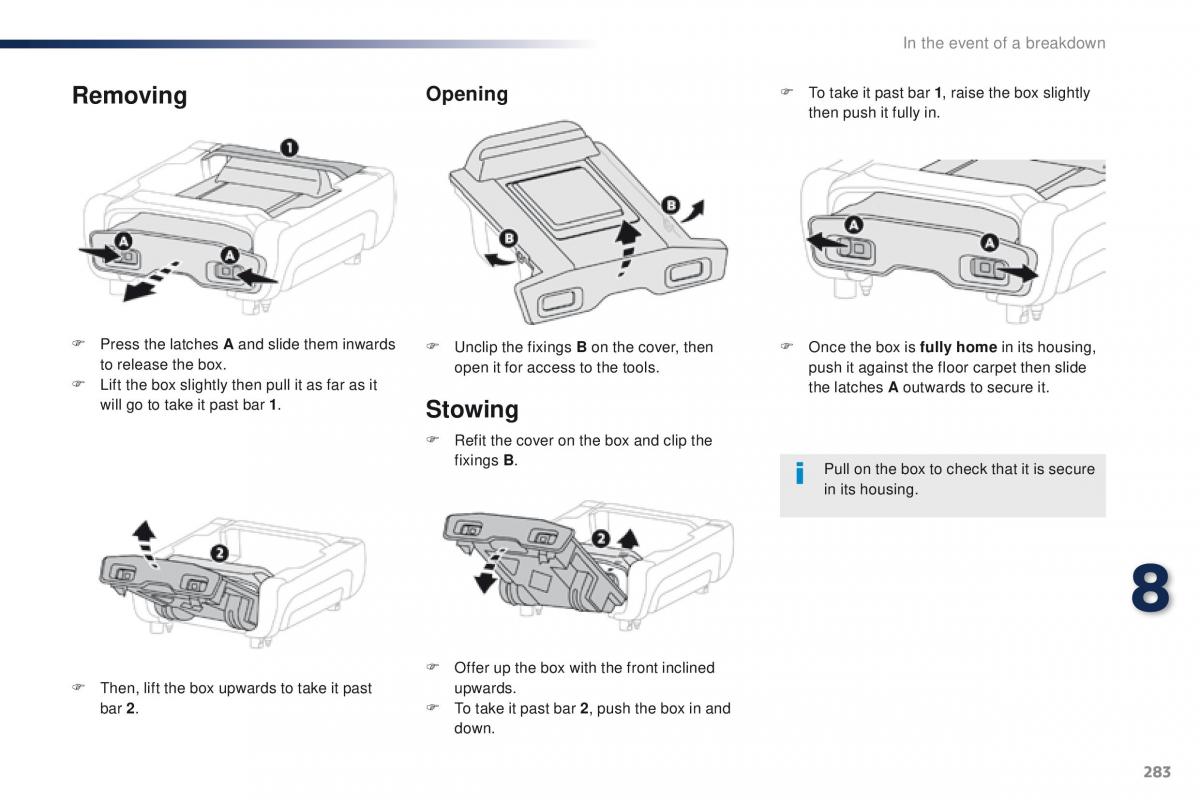

In the event of a breakdown Removing Opening F To take it past bar 1, raise the box slightly then push it fully in. F Press the latches A and slide them inwards F unclip the fixings B on the cover, then F once the box is fully home in its housing, to release the box. open it for access to the tools.push it against the floor carpet then slide F Lift the box slightly then pull it as far as it the latches A outwards to secure it. will go to take it past bar 1.Stowing F Refit the cover on the box and clip the fixings B. Pull on the box to check that it is secure in its housing. 8 F offer up the box with the front inclined F Then, lift the box upwards to take it past upwards. bar 2. F To take it past bar 2, push the box in and down. 283 Traveller-VP_en_Chap08_en-cas-de-panne_ed01-2016

Download PDF

Click here to download a pdf file with an instruction manual for Peugeot Traveller
year of production from: 2016

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Peugeot Traveller owners manual
pages 282 - 288

Peugeot Traveller owners manual
page 285 / 607

this site is maintained by advertising - for view instructions, turn off ad blocking in your browser

Peugeot Traveller owners manual / page 285
