text version of content this owner's manual page from owners manual to the vehicle VW Golf VII, year of production 2012:

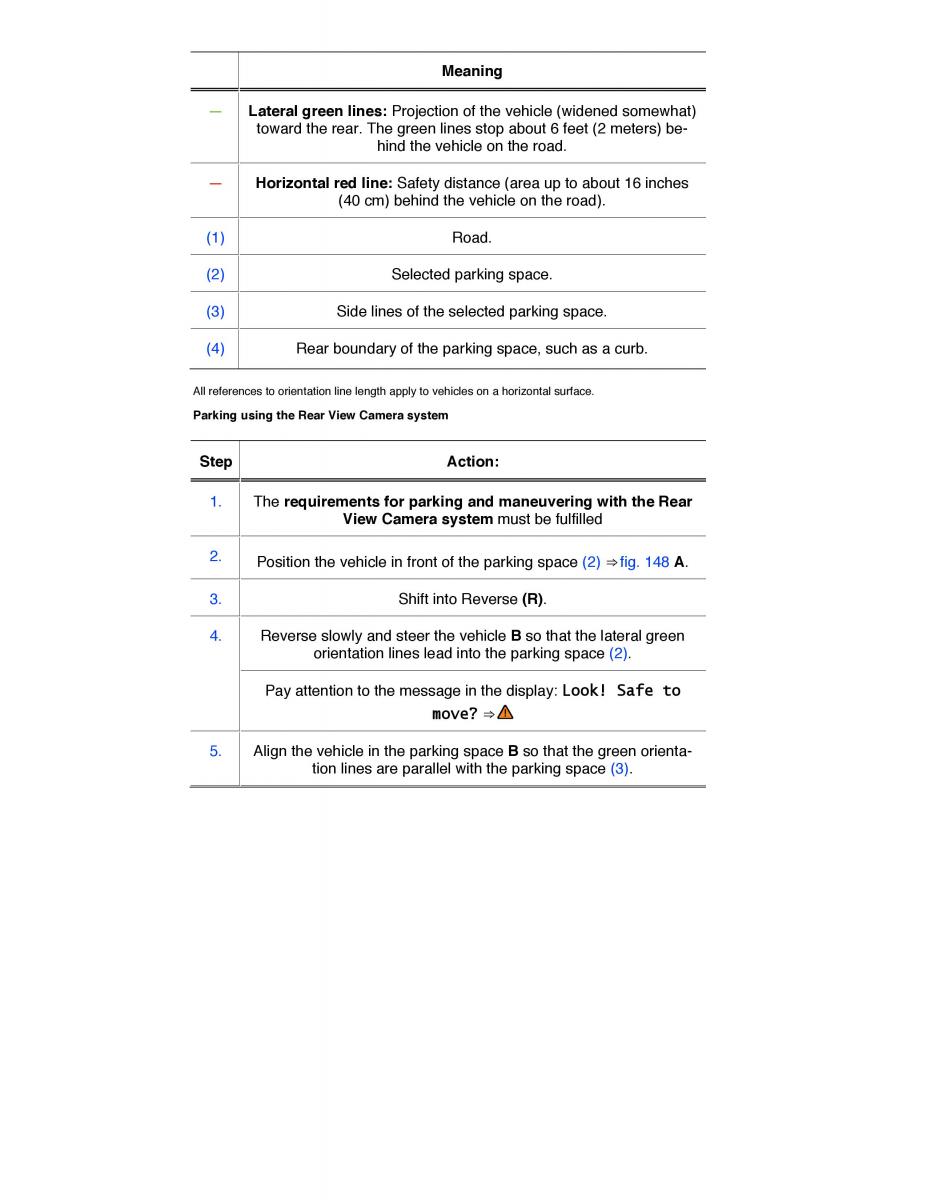

M eaning — Lateral green lines: Projection of the vehicle (widened somewhat) toward the rear. The green lines stop about 6 feet (2 meters) be- hind the vehicle on the road. — Horizontal red line: Safety distance (area up to about 16 inches (40 cm) behind the vehicle on the road). (1) Road. (2) Selected parking space. (3) Side lines of the selected parking space. (4) Rear boundary of the parking space, such as a curb. All references to orientation line length apply to vehicles on a horizontal surface. Parking using the Rear View Camera system Step Action: 1. The requirements for parking and maneuvering with the Rear View Camera system must be fulfilled 2. Position the vehicle in front of the parking space (2) ⇒ fig. 148 A. 3. Shift into Reverse (R). 4. Reverse slowly and steer the vehicle B so that the lateral green orientation lines lead into the parking space (2). Pay attention to the message in the display: Look! Safe to move? ⇒ 5. Align the vehicle in the parking space B so that the green orienta- tion lines are parallel with the parking space (3).
