owners manual Toyota Auris Hybrid

all ratings: 0 average rating: 5

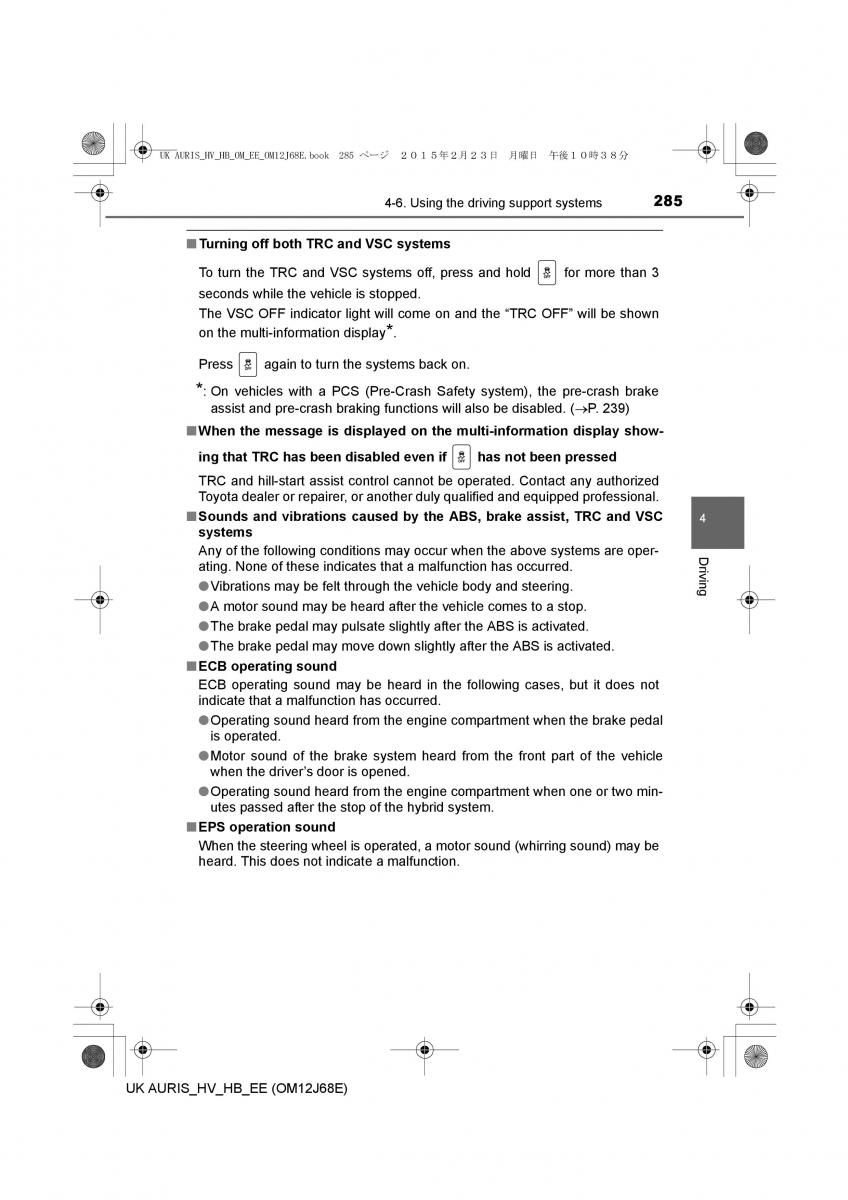

UK AURIS_HV_HB_OM_EE_OM12J68E.book 285 ページ 㧞㧜㧝５年㧞月㧞㧟日　月曜日　午後㧝㧜時㧟８分 4-6. Using the driving support systems285 ■Turning off both TRC and VSC systems To turn the TRC and VSC systems off, press and hold for more than 3 seconds while the vehicle is stopped. The VSC OFF indicator light will come on and the “TRC OFF” will be shown on the multi-information display *. Press again to turn the systems back on. *: On vehicles with a PCS (Pre-Crash Safety system), the pre-crash brake assist and pre-crash braking functions will also be disabled. (→P. 239) ■When the message is displayed oe mn thulti-information display show- ing that TRC has been disabled even if has not been pressed TRC and hill-start assist control cannot be operated. Contact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. ■Sounds and vibrations caused by the ABS, brake assist, TRC and VSC 4 systems Any of the following conditions may occur when the above systems are oper-D r ating. None of these indicates that a malfunction has occurred. iv in ●Vibrations may be felt through the vehicle body and steering. g ●A motor sound may be heard after the vehicle comes to a stop. ●The brake pedal may pulsate slightly after the ABS is activated. ●The brake pedal may move down slightly after the ABS is activated. ■ECB operating sound ECB operating sound may be heard in the following cases, but it does not indicate that a malfunction has occurred. ●Operating sound heard from the engine compartment when the brake pedal is operated. ●Motor sound of the brake system heard from the front part of the vehicle when the driver’s door is opened. ●Operating sound heard from the engine compartment when one or two min- utes passed after the stop of the hybrid system. ■EPS operation sound When the steering wheel is operated, a motor sound (whirring sound) may be heard. This does not indicate a malfunction. UK AURIS_HV_HB_EE (OM12J68E)
