text version of content this owner's manual page from owners manual to the vehicle Mazda 3, year of production 2003 - 2009:

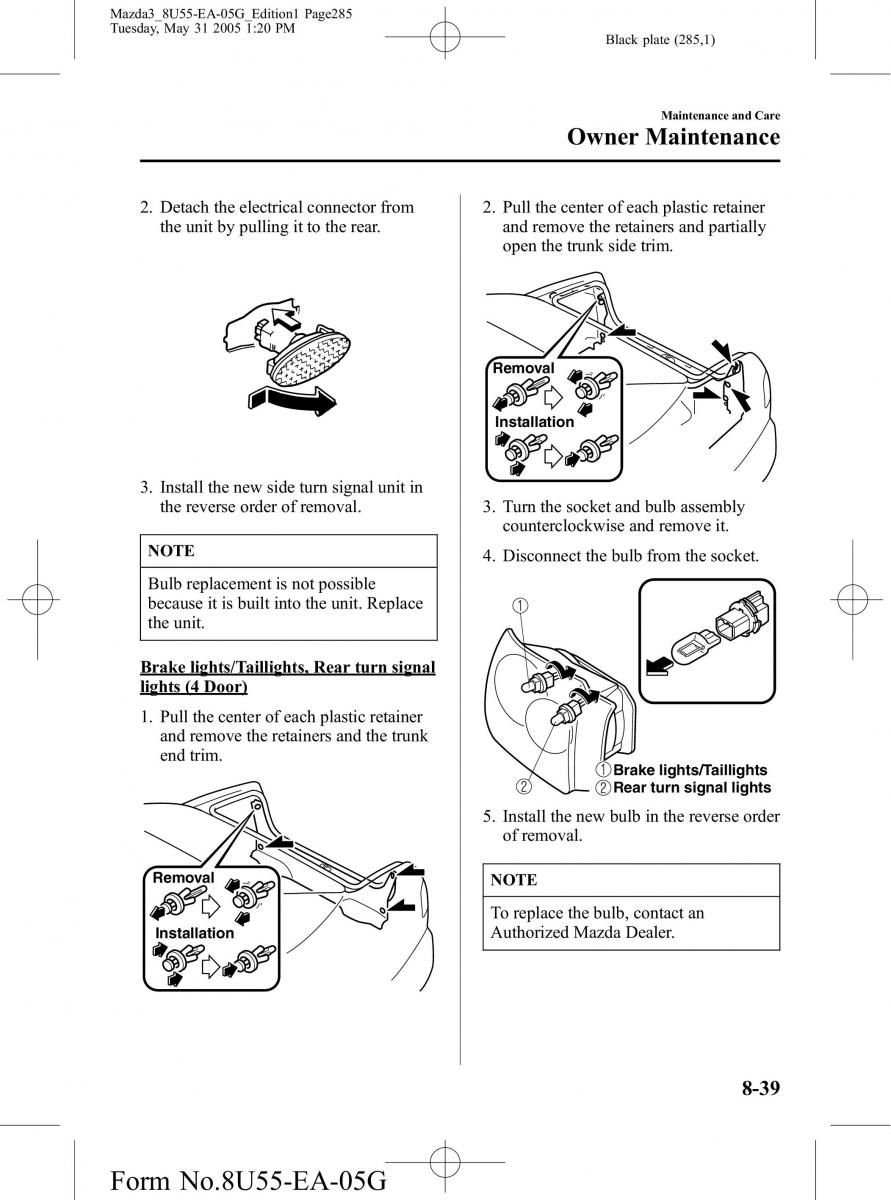

Mazda3_8U55-EA-05G_Edition1 Page285 Tuesday, May 31 2005 1:20 PM Black plate (285,1) Maintenance and Care OwnerMaintenance 2. Detach the electrical connector from2. Pull the center of each plastic retainer the unit by pulling it to the rear. and remove the retainers and partially open the trunk side trim. Removal Installation 3. Install the new side turn signal unit in the reverse order of removal. 3. Turn the socket and bulb assembly counterclockwise and remove it. NOTE 4. Disconnect the bulb from the socket. Bulb replacement is not possible because it is built into the unit. Replace the unit. Brakelights/Taillights, Rear turn signal lights (4 Door) 1. Pull the center of each plastic retainer and remove the retainers and the trunk end trim. Brake lights/Taillights Rear turn signal lights 5. Install the new bulb in the reverse order of removal. Removal NOTE Toreplace the bulb, contact an Installation Authorized Mazda Dealer. 8-39 Form No.8U55-EA-05G
