text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 159, year of production 2005 - 2011:

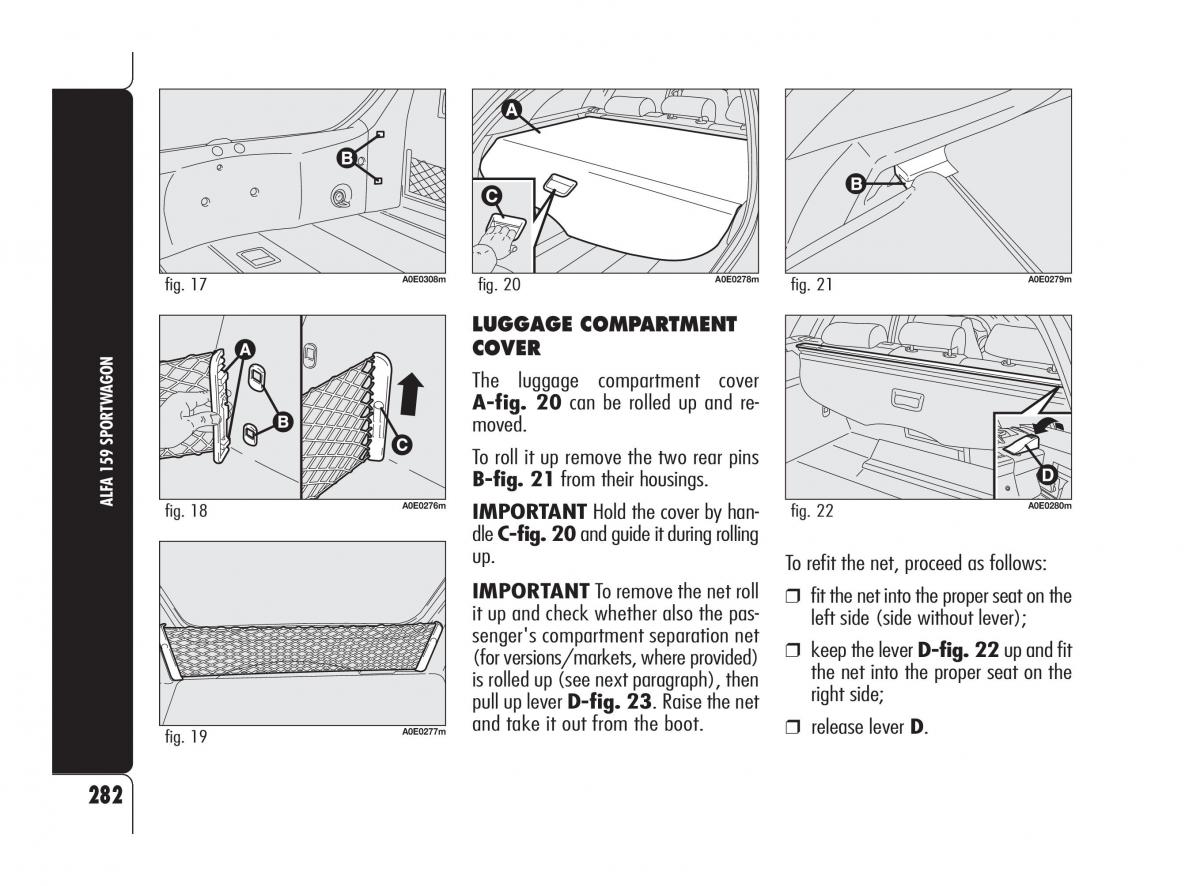

271-292 Alfa 159 GB 8-04-2009 10:55 Pagina 282 fig. 17 A0E0308m fig. 20 A0E0278m fig. 21 A0E0279m LUGGAGE COMPARTMENT COVER AGON The luggage compartment cover TW A-fig. 20can be rolled up and re- moved. To roll it up remove the two rear pins A 159 SPOR B-fig. 21 from their housings. ALF fig. 18 A0E0276m IMPORTANT Hold the cover by han- fig. 22 A0E0280m dle C-fig. 20 and guide it during rolling up. To refit the net, proceed as follows: IMPORTANTTo remove the net roll ❒ fit the net into the proper seat on the it up and check whether also the pas- left side (side without lever); senger's compartment separation net (for versions/markets, where provided) ❒ keep the lever D-fig. 22 up and fit is rolled up (see next paragraph), then the net into the proper seat on the pull up lever D-fig. 23. Raise the net right side; and take it out from the boot. fig. 19 A0E0277m ❒ release lever D. 282
