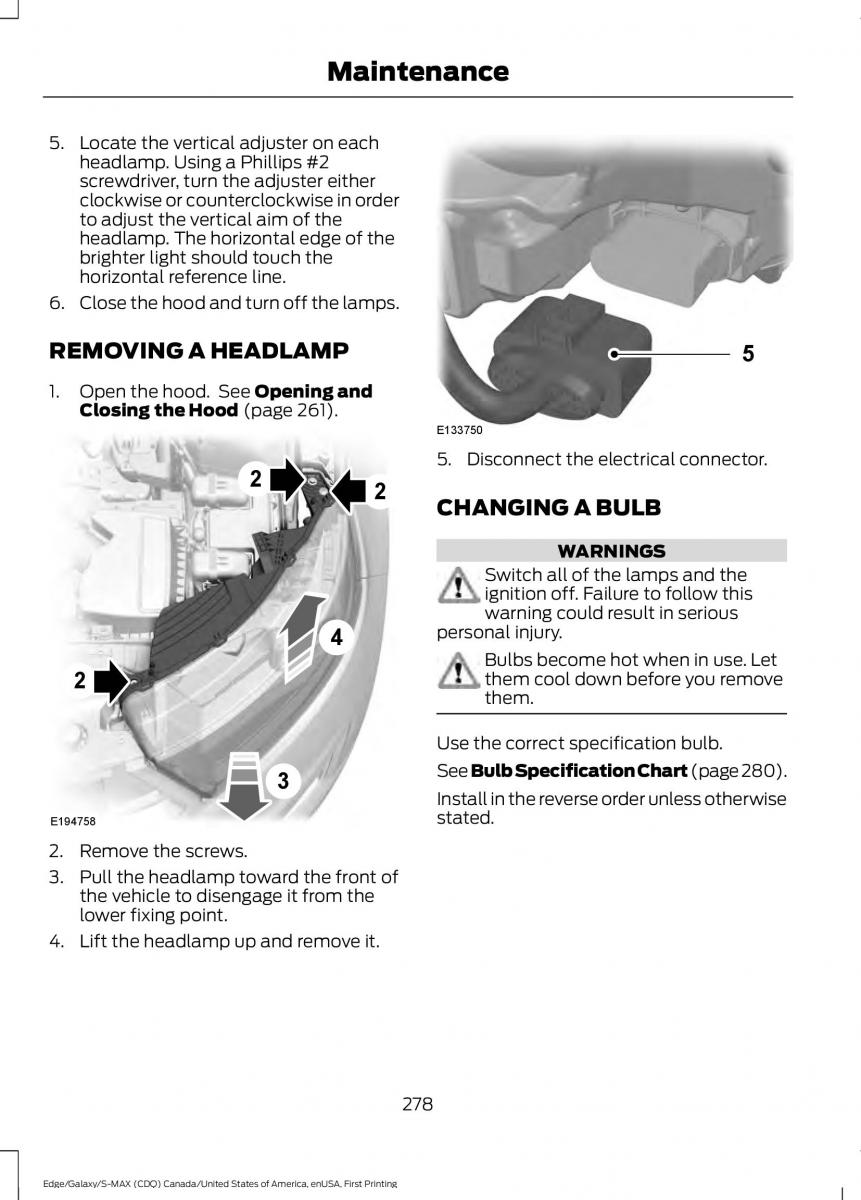

Maintenance
5. Locate the vertical adjuster on each
headlamp. Using a Phillips #2
screwdriver, turn the adjuster either
clockwise or counterclockwise in order
to adjust the vertical aim of the
headlamp. The horizontal edge of the
brighter light should touch the
horizontal reference line.
6. Close the hood and turn off the lamps.
REMOVING A HEADLAMP 5
1. Open the hood. See Opening and
Closing the Hood (page 261).
E133750
5. Disconnect the electrical connector.
2
2 CHANGING A BULB
WARNINGS
Switch all of the lamps and the
ignition off. Failure to follow this
warning could result in serious
personal injury.
4 Bulbs become hot when in use. Let
them cool down before you remove
2 them.
Use the correct specification bulb.
See Bulb Specification Chart (page 280).
3 Install in the reverse order unless otherwise
E194758 stated.
2. Remove the screws.
3. Pull the headlamp toward the front of
the vehicle to disengage it from the
lower fixing point.
4. Lift the headlamp up and remove it.
278
Edge/Galaxy/S-MAX (CDQ) Canada/United States of America, enUSA, First Printing
