owners manual Toyota RAV4

all ratings: 1 average rating: 5

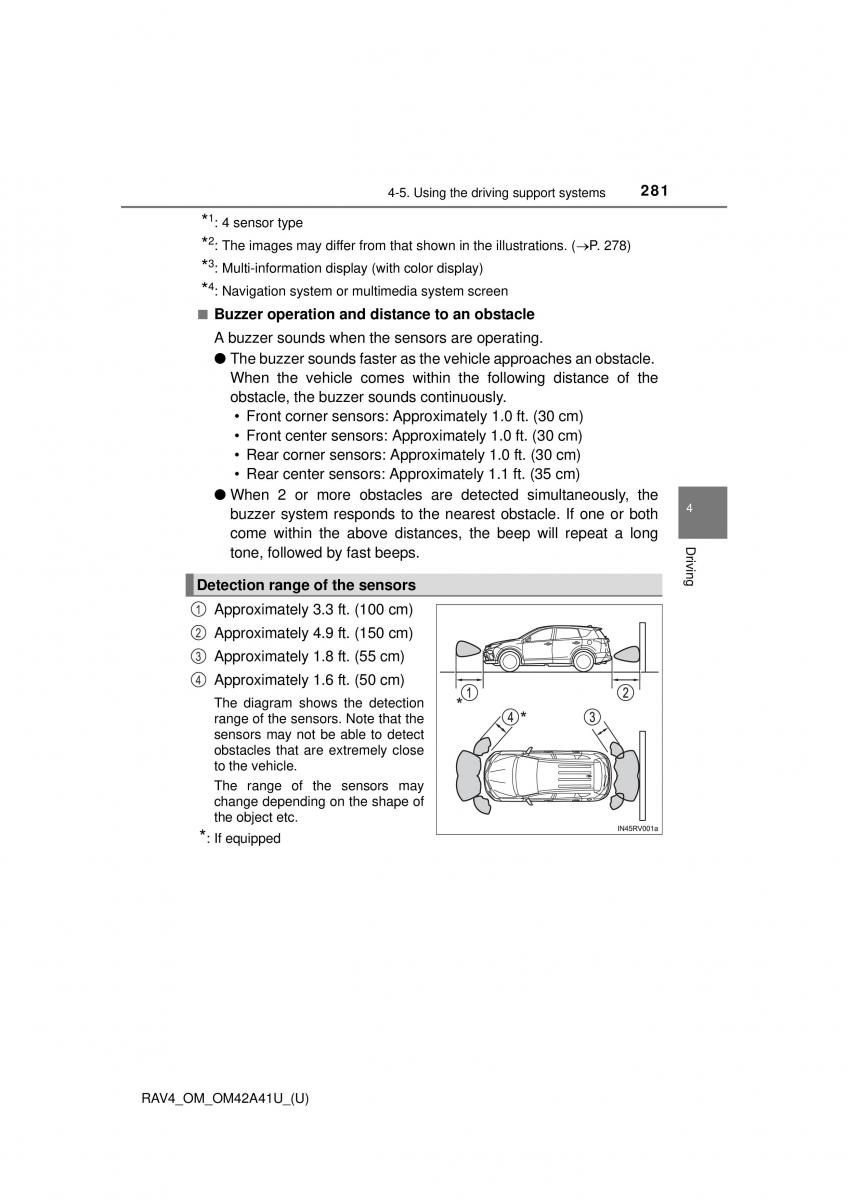

4-5. Using the driving support systems281 1 * : 4 sensor type 2 * : The images may differ from that shown in the illustrations. (P. 278) 3 * : Multi-information display (with color display) 4 * : Navigation system or multimedia system screen ■ Buzzer operation and distance to an obstacle A buzzer sounds when the sensors are operating. ●The buzzer sounds faster as the vehicle approaches an obstacle. When the vehicle comes within the following distance of the obstacle, the buzzer sounds continuously. • Front corner sensors: Approximately 1.0 ft. (30 cm) • Front center sensors: Approximately 1.0 ft. (30 cm) • Rear corner sensors: Approximately 1.0 ft. (30 cm) • Rear center sensors: Approximately 1.1 ft. (35 cm) ●When 2 or more obstacles are detected simultaneously, the 4 buzzer system responds to thene arest obstacle. If one or both come within the above dists, the beep will ance repeat a long tone, followed by fast beeps. Drivin Detection range of the sensors g 1 Approximately 3.3 ft. (100 cm) 2 Approximately 4.9 ft. (150 cm) 3 Approximately 1.8 ft. (55 cm) 4 Approximately 1.6 ft. (50 cm) The diagram shows the detection range of the sensors. Note that the sensors may not be able to detect obstacles that are extremely close to the vehicle. The range of the sensors may change depending on the shape of the object etc. *: If equipped RAV4_OM_OM42A41U_(U)
