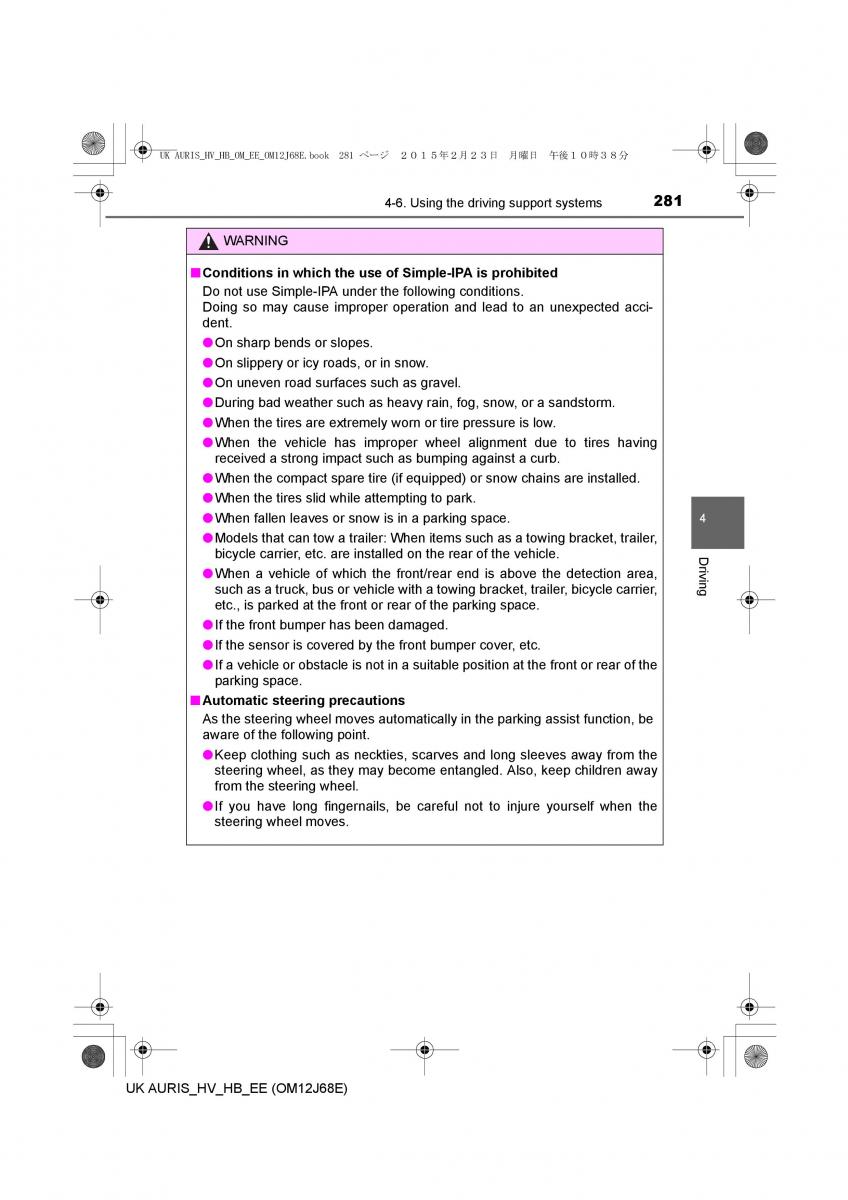

UK AURIS_HV_HB_OM_EE_OM12J68E.book 281 ページ 㧞㧜㧝5年㧞月㧞㧟日 月曜日 午後㧝㧜時㧟8分
4-6. Using the driving support systems281
WARNING
■Conditions in which the use of Simple-IPA is prohibited
Do not use Simple-IPA under the following conditions.
Doing so may cause improper operation and lead to an unexpected acci-
dent.
●On sharp bends or slopes.
●On slippery or icy roads, or in snow.
●On uneven road surfaces such as gravel.
●During bad weather such as heavy rain, fog, snow, or a sandstorm.
●When the tires are extremely worn or tire pressure is low.
●When the vehicle has improper wheel alignment due to tires having
received a strong impact such as bumping against a curb.
●When the compact spare tire (if equipped) or snow chains are installed.
●When the tires slid while attempting to park.
●When fallen leaves or snow is in a parking space. 4
●Models that can tow a trailer: When item s such as a towing bracket, trailer,
bicycle carrier, etc. are installed on the rear of the vehicle. D
r
●When a vehicle of which the front/rear end is above the detection area,iv
in
such as a truck, bus or vehicle with a towing bracket, trailer, bicycle carrier,g
etc., is parked at the front or rear of the parking space.
●If the front bumper has been damaged.
●If the sensor is covered by the front bumper cover, etc.
●If a vehicle or obstacle is not in a suit able position at the front or rear of the
parking space.
■Automatic steering precautions
As the steering wheel moves automatically in the parking assist function, be
aware of the following point.
●Keep clothing such as neckties, scarves and long sleeves away from the
steering wheel, as they may become entangled. Also, keep children away
from the steering wheel.
●If you have long fingernails, be careful not to injure yourself when the
steering wheel moves.
UK AURIS_HV_HB_EE (OM12J68E)
