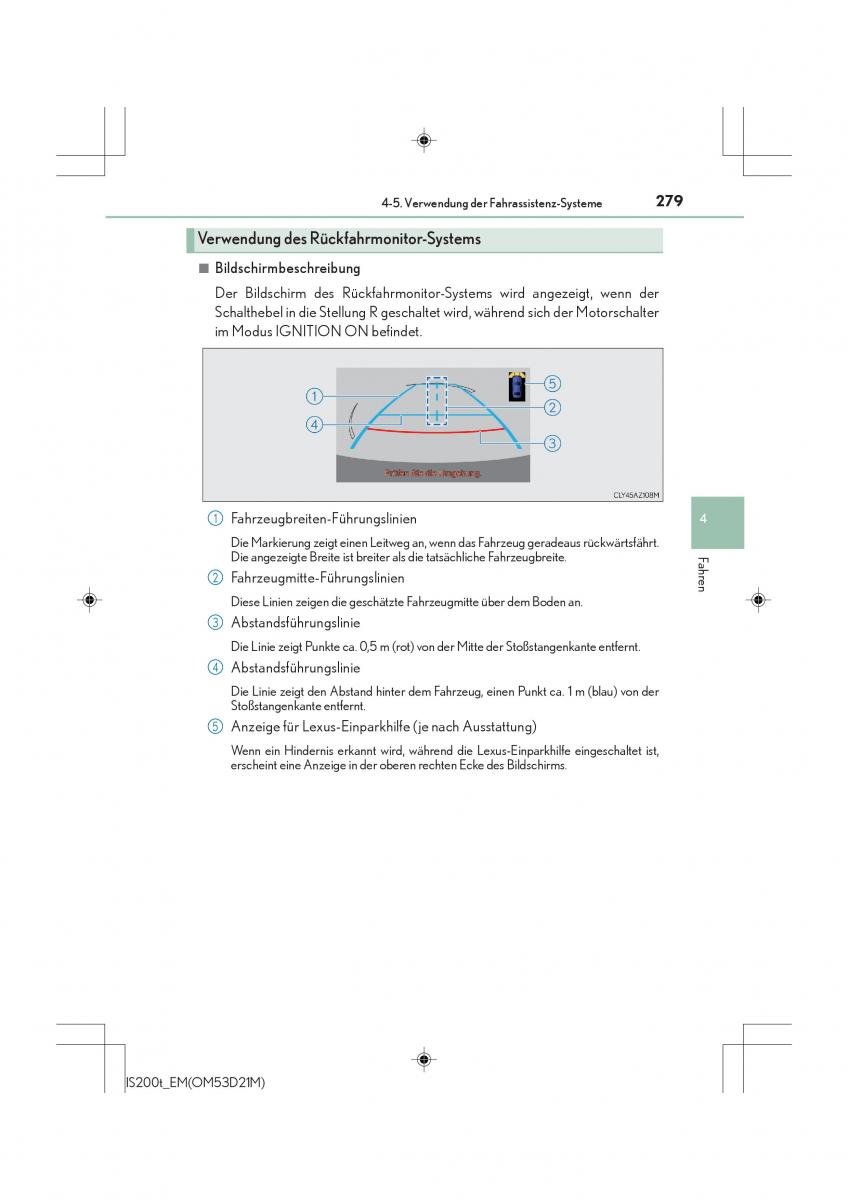

4-5. Verwendung der Fahrassistenz-Systeme279
Verwendung des Rückfahrmonitor-Systems
■ Bildschirmbeschreibung
Der Bildschirm des Rückfahrmonitor-Systems wird angezeigt, wenn der
Schalthebel in die Stellung R geschaltet wird, während sich der Motorschalter
im Modus IGNITION ON befindet.
1 Fahrzeugbreiten-Führungslinien 4
Die Markierung zeigt einen Leitweg an, wenn das Fahrzeug geradeaus rückwärtsfährt.
Die angezeigte Breite ist breiter als die tatsächliche Fahrzeugbreite.Fa
h
r
2 Fahrzeugmitte-Führungslinien e
Diese Linien zeigen die geschätzte Fahrzeugmitte über dem Boden an.n
3 Abstandsführungslinie
Die Linie zeigt Punkte ca. 0,5 m (rot) von der Mitte der Stoßstangenkante entfernt.
4 Abstandsführungslinie
Die Linie zeigt den Abstand hinter dem Fahrzeug, einen Punkt ca. 1 m (blau) von der
Stoßstangenkante entfernt.
5 Anzeige für Lexus-Einparkhilfe (je nach Ausstattung)
Wenn ein Hindernis erkannt wird, während die Lexus-Einparkhilfe eingeschaltet ist,
erscheint eine Anzeige in der oberen rechten Ecke des Bildschirms.
IS200t_EM(OM53D21M)
