owners manual Hyundai i10

owners manual Hyundai i10 - year of production: 2013 - Hyundai i10 II 2 owners manual EN

Document: pdf (9.59 MB) 343 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Hyundai i10, year of production 2013:

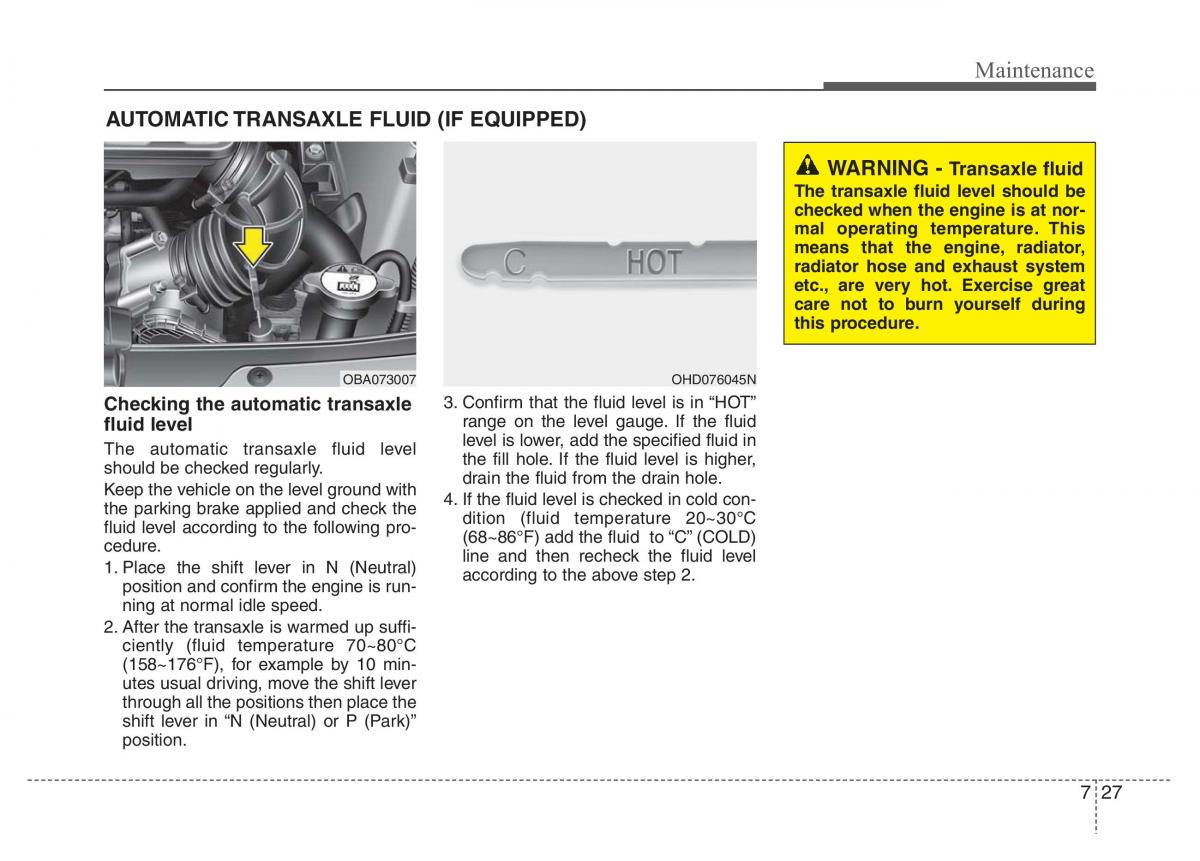

Maintenance AUTOMATIC TRANSAXLE FLUID (IF EQUIPPED) WARNING - Transaxle fluid The transaxle fluid level should be checked when the engine is at nor- mal operating temperature.This means that the engine, radiator, radiator hose and exhaust system etc., are very hot. Exercise great care not to burn yourself during this procedure. OBA073007 OHD076045N Checking the automatic transaxle 3.Confirm that the fluid level is in “HOT” fluid level range on the level gauge. If the fluid level is lower, add the specified fluid in The automatic transaxle fluid level should be checked regularly. the fill hole. If the fluid level is higher, Keep the vehicle on the level ground withdrain the fluid from the drain hole. 4. If the fluid level is checked in cold con- the parking brake applied and check the dition (fluid temperature 20~30°C fluid level according to the following pro- (68~86°F) add the fluid to “C” (COLD) cedure. line and then recheck the fluid level 1. Place the shift lever in N (Neutral) position and confirm the engine is run-according to the above step 2. ning at normal idle speed. 2. After the transaxle is warmed up suffi- ciently (fluid temperature 70~80°C (158~176°F), for example by 10 min- utes usual driving, move the shift lever through all the positions then place the shift lever in “N (Neutral) or P (Park)” position. 727
