212_AKB; 2; 41, en-US 2009-07-17T09:14:21+02:00 - Seite 276
d2ureepe, Version: 2.11.8.1

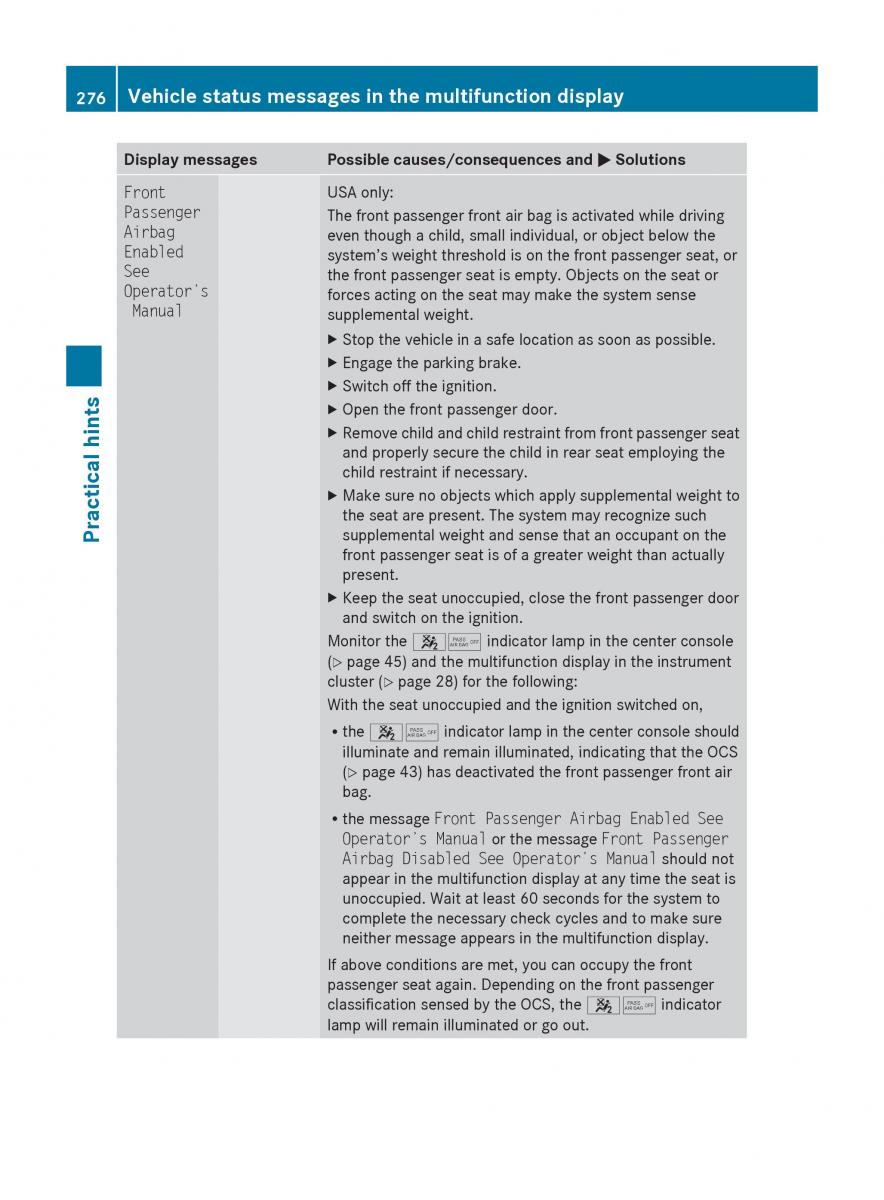

276 Vehicle status messages in the multifunction display
Display messages Possible causes/consequences and M Solutions
Front USA only:
Passenger
The front passenger front air bag is activated while driving
Airbag
even though a child, small individual, or object below the
Enabled
system’s weight threshold is on the front passenger seat, or
See
the front passenger seat is empty. Objects on the seat or
Operator’s
forces acting on the seat may make the system sense
Manual
supplemental weight.
XStop the vehicle in a safe location as soon as possible.
XEngage the parking brake.
XSwitch off the ignition.
XOpen the front passenger door.
XRemove child and child restraint from front passenger seat
and properly secure the child in rear seat employing the
child restraint if necessary.
XMake sure no objects which apply supplemental weight to
the seat are present. The system may recognize such
Practical hints supplemental weight and sense that an occupant on the
front passenger seat is of a greater weight than actually
present.
XKeep the seat unoccupied, close the front passenger door
and switch on the ignition.
Monitor the 45 indicator lamp in the center console
(Y page 45) and the multifunction display in the instrument
cluster (Y page 28) for the following:
With the seat unoccupied and the ignition switched on,
R
the 45 indicator lamp in the center console should
illuminate and remain illuminated, indicating that the OCS
(Y page 43) has deactivated the front passenger front air
bag.
R
the message Front Passenger Airbag Enabled See
Operator’s Manual or the message Front Passenger
Airbag Disabled See Operator’s Manual should not
appear in the multifunction display at any time the seat is
unoccupied. Wait at least 60 seconds for the system to
complete the necessary check cycles and to make sure
neither message appears in the multifunction display.
If above conditions are met, you can occupy the front
passenger seat again. Depending on the front passenger
classification sensed by the OCS, the 45 indicator
lamp will remain illuminated or go out.
