Mazda6_8DQ8-EA-13L_Edition3 Page277
Friday, June 13 2014 6:22 PM
Black plate (277,1)

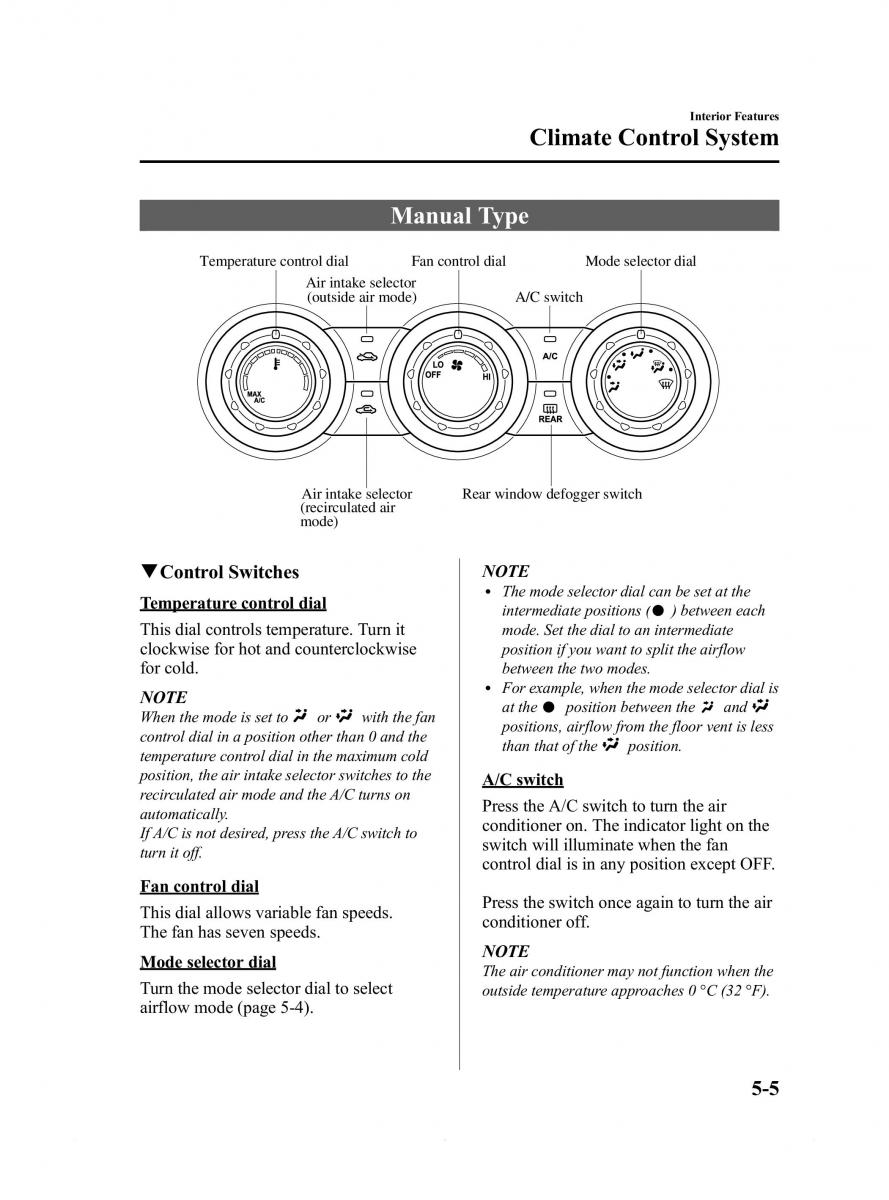

Interior Features
Climate Control System
ManualType
Temperature control dial Fan control dial Mode selector dial
Air intake selector
(outside air mode) A/C switch
Air intake selector Rear window defogger switch
(recirculated air
mode)
qControlSwitches NOTE
Temperaturecontrol dial l Themodeselectordial can be set at the
intermediate positions ( ) between each
This dial controls temperature. Turn it mode. Set the dial to an intermediate
clockwise for hot and counterclockwise position if you want to split the airflow
for cold. between the two modes.
NOTE l Forexample, when the mode selectordial is
Whenthemodeissetto or with the fan at the position between the and
control dial in a position other than 0 and the positions, airflow from the floor vent is less
temperature control dial in the maximum cold than that of the position.
position, the air intake selector switches to the A/Cswitch
recirculated air mode and the A/C turns on Press the A/C switch to turn the air
automatically. conditioner on. The indicator light on the
If A/C is not desired, press the A/C switch to switch will illuminate when the fan
turn it off. control dial is in any position except OFF.
Fancontrol dial
This dial allows variable fan speeds. Press the switch once again to turn the air
Thefan has seven speeds. conditioner off.
Modeselector dial NOTE
The air conditioner may not function when the
Turn the mode selector dial to select outside temperature approaches 0 °C (32 °F).
airflow mode (page 5-4).
5-5
Form No.8DQ8-EA-13L
