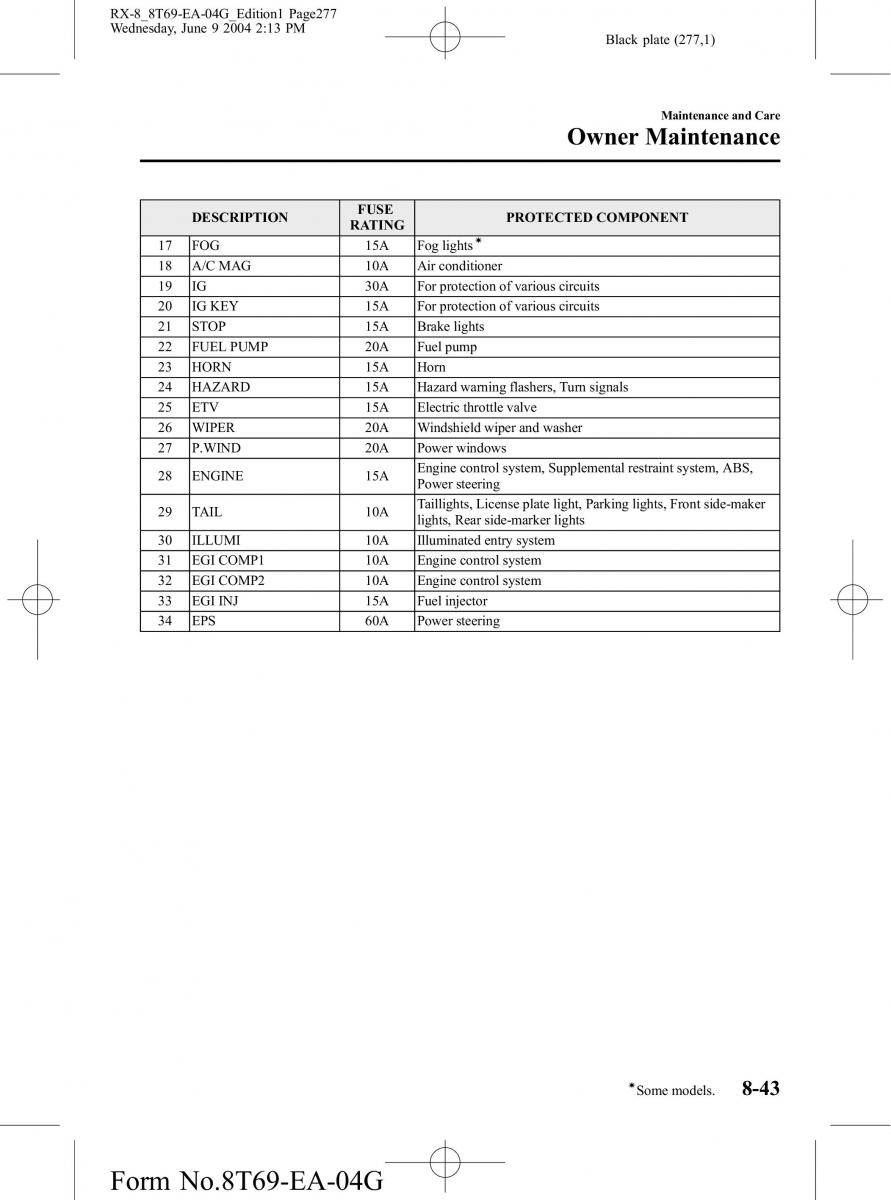

RX-8_8T69-EA-04G_Edition1 Page277
Wednesday, June 9 2004 2:13 PM
Black plate (277,1)
Maintenance and Care
OwnerMaintenance
DESCRIPTION FUSE PROTECTEDCOMPONENT
RATING
17 FOG 15A Foglightsí
18 A/CMAG 10A Air conditioner
19 IG 30A For protection of various circuits
20 IGKEY 15A For protection of various circuits
21 STOP 15A Brake lights
22 FUELPUMP 20A Fuel pump
23 HORN 15A Horn
24 HAZARD 15A Hazard warning flashers, Turn signals
25 ETV 15A Electric throttle valve
26 WIPER 20A Windshield wiper and washer
27 P.WIND 20A Powerwindows
28 ENGINE 15A Engine control system, Supplemental restraint system, ABS,
Powersteering
29 TAIL 10A Taillights, License plate light, Parking lights, Front side-maker
lights, Rear side-marker lights
30 ILLUMI 10A Illuminated entry system
31 EGICOMP1 10A Engine control system
32 EGICOMP2 10A Engine control system
33 EGIINJ 15A Fuel injector
34 EPS 60A Powersteering
í
Somemodels. 8-43
Form No.8T69-EA-04G
