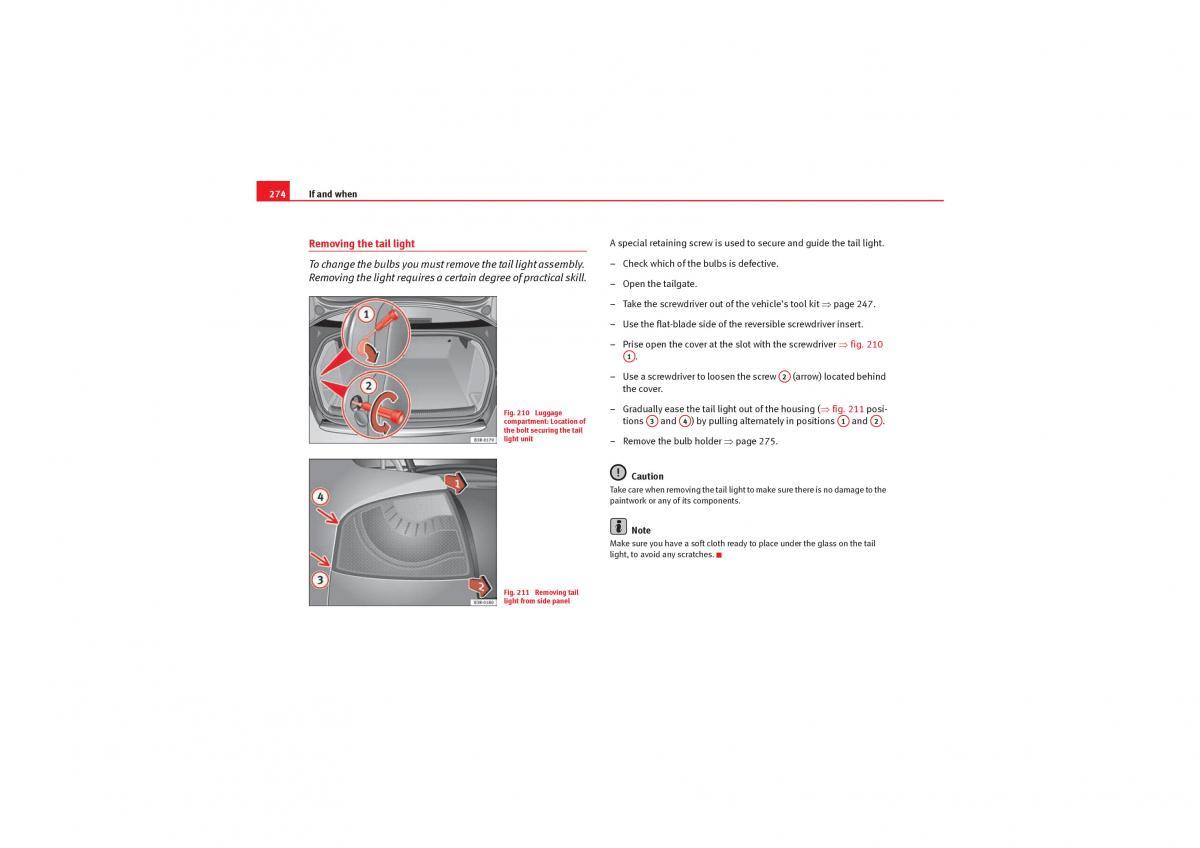

exeo_EN.book Seite 274 Montag, 30. August 2010 4:45 16
274 If and when
Removing the tail light A special retaining screw is used to secure and guide the tail light.
To change the bulbs you must remove the tail light assembly. – Check which of the bulbs is defective.
Removing the light requires a certain degree of practical skill.–Open the tailgate.
– Take the screwdriver out of the vehicle’s tool kit ⇒ page 247.
– Use the flat-blade side of the reversible screwdriver insert.
– Prise open the cover at the slot with the screwdriver ⇒ fig. 210
1 .
A
2
– Use a screwdriver to loosen the screw A (arrow) located behind
the cover.
Fig. 210 Luggage – Gradually ease the tail light out of the housing (⇒ fig. 211 posi-
compartment: Location of tions 3 and 4 ) by pulling alternately in positions 1 and 2 .
A A A A
the bolt securing the tail
light unit – Remove the bulb holder ⇒page275.
Caution
Take care when removing the tail light to make sure there is no damage to the
paintwork or any of its components.
Note
Make sure you have a soft cloth ready to place under the glass on the tail
light, to avoid any scratches.
Fig. 211 Removing tail
light from side panel
