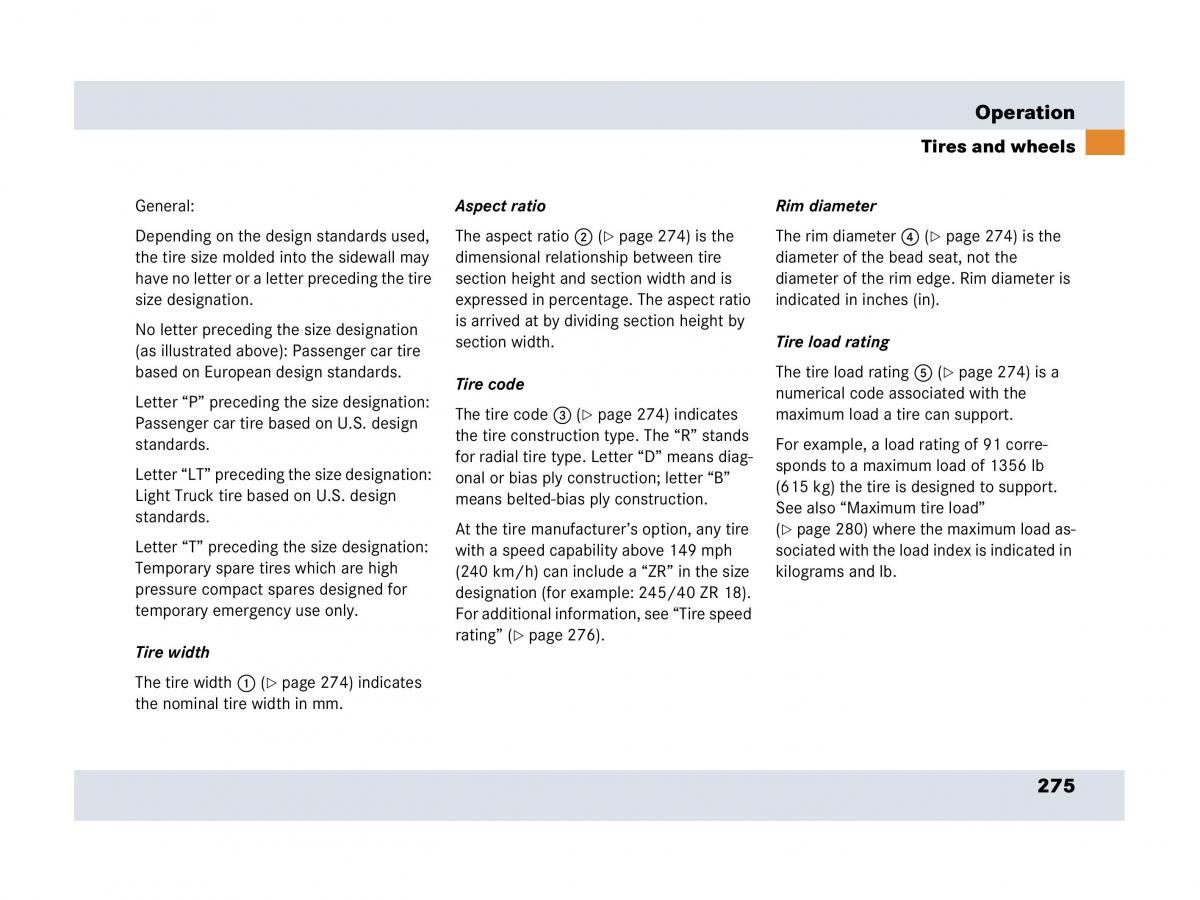

text version of content this owner's manual page from owners manual to the vehicle Mercedes SLR, year of production 2003 - 2009:

Operation Tires and wheels General: Aspect ratio Rim diameter The aspect ratio 2 ( Depending on the design standards used, page274) is the The rim diameter 4 ( page 274) is the the tire size molded into the sidewall may dimensional relationship between tire diameter of the bead seat, not the have no letter or a letter preceding the tire section height and section width and is diameter of the rim edge. Rim diameter is size designation. expressed in percentage. The aspect ratio indicated in inches (in). No letter preceding the size designation is arrived at by dividing section height by (as illustrated above): Passenger car tire section width. Tire load rating based on European design standards.Tire code The tire load rating 5 ( page 274) is a Letter “P” preceding the size designation: numerical code associated with the Passenger car tire based on U.S. design The tire code3 ( page 274) indicates maximum load a tire can support. standards. the tire construction type. The “R” stands For example, a load rating of 91 corre- for radial tire type. Letter “D” means diag-sponds to a maximum load of 1356 lb Letter “LT” preceding the size designation: onal or bias ply construction; letter “B” (615 kg) the tire is designed to support. Light Truck tire based on U.S. design means belted-bias ply construction.See also “Maximum tire load” standards. At the tire manufacturer’s option, any tire ( page 280) where the maximum load as- Letter “T” preceding the size designation: with a speed capability above 149 mph sociated with the load index is indicated in Temporary spare tires which are high (240 km/h) can include a “ZR” in the size kilograms and lb. pressure compact spares designed for designation (for example: 245/40 ZR 18). temporary emergency use only. For additional information, see “Tire speed rating” ( page 276). Tire width The tire width1 ( page274) indicates the nominal tire width in mm. 275
