owners manual Volvo XC60

all ratings: 0 average rating: 5

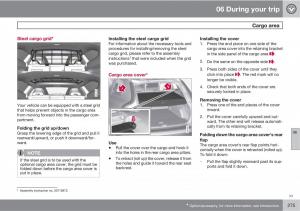

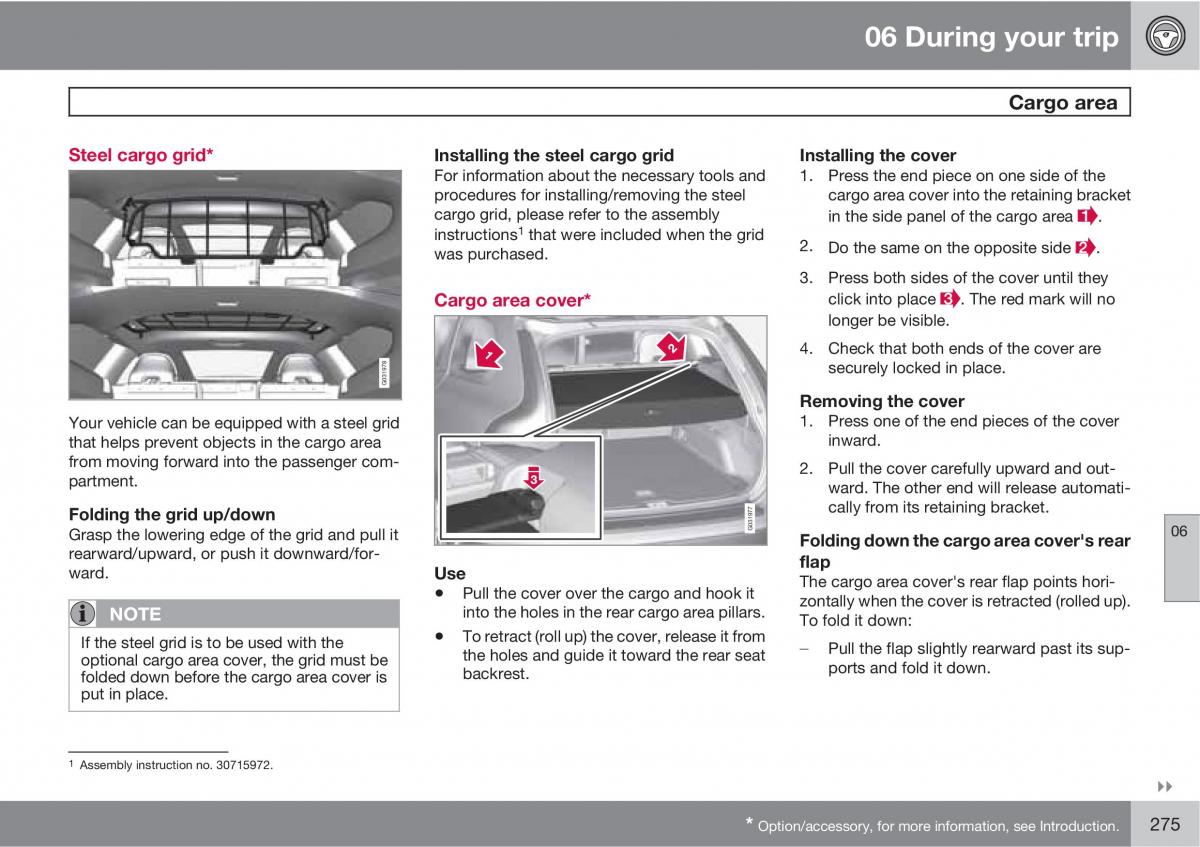

06 During your trip Cargo area Steel cargo grid* Installing the steel cargo grid Installing the cover For information about the necessary tools and 1. Press the end piece on one side of the procedures for installing/removing the steel cargo area cover into the retaining bracket cargo grid, please refer to the assembly in the side panel of the cargo area . 1 instructions that were included when the grid 2. Do the same on the opposite side . was purchased. 3. Press both sides of the cover until they Cargo area cover* click into place . The red mark will no longer be visible. 4. Check that both ends of the cover are securely locked in place. G031978 Removing the cover Your vehicle can be equipped with a steel grid 1. Press one of the end pieces of the cover that helps prevent objects in the cargo area inward. from moving forward into the passenger com- 2. Pull the cover carefully upward and out- partment. ward. The other end will release automati- Folding the grid up/down cally from its retaining bracket. Grasp the lowering edge of the grid and pull it G031977 Folding down the cargo area cover's rear 06 rearward/upward, or push it downward/for- flap ward. Use The cargo area cover's rear flap points hori- • Pull the cover over the cargo and hook it zontally when the cover is retracted (rolled up). NOTE into the holes in the rear cargo area pillars. To fold it down: If the steel grid is to be used with the • To retract (roll up) the cover, release it from  Pull the flap slightly rearward past its sup- optional cargo area cover, the grid must be the holes and guide it toward the rear seat ports and fold it down. folded down before the cargo area cover is backrest. put in place. 1 Assembly instruction no. 30715972.  * Option/accessory, for more information, see Introduction. 275
