owners manual Hyundai ix55

owners manual Hyundai ix55 - year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015 - Hyundai ix55 Veracruz owners manual EN

Document: pdf (8.67 MB) 425 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Hyundai ix55, year of production 2006 - 2015:

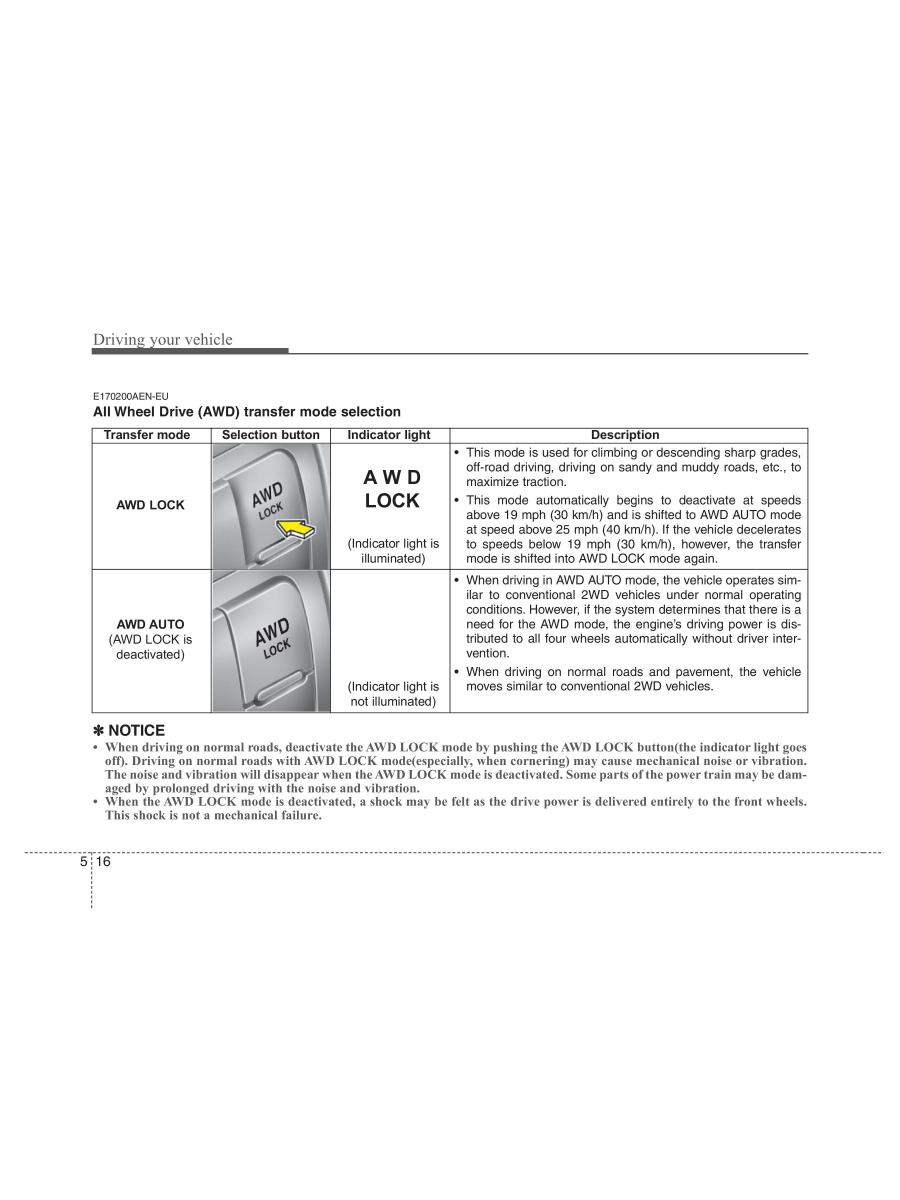

Driving your vehicle E170200AEN-EU All Wheel Drive (AWD) transfer mode selection Transfer mode Selection button Indicator light Description • This mode is used for climbing or descending sharp grades, AW D off-road driving, driving on sandy and muddy roads, etc., to maximize traction. AWD LOCK LOCK • This mode automatically begins to deactivate at speeds above 19 mph (30 km/h) and is shifted to AWD AUTO mode at speed above 25 mph (40 km/h).If the vehicle decelerates (Indicator light isto speeds below 19 mph (30 km/h), however, the transfer illuminated) mode is shifted into AWD LOCK mode again. • When driving in AWD AUTO mode, the vehicle operates sim- ilar to conventional 2WD vehicles under normal operating conditions. However, if the system determines that there is a AWD AUTO need for the AWD mode, the engine’s driving power is dis- (AWD LOCK is tributed to all four wheels automatically without driver inter- deactivated) vention. • When driving on normal roads and pavement, the vehicle (Indicator light ismoves similar to conventional 2WD vehicles. not illuminated) ✽✽ NOTICE • When driving on normal roads, deactivate the AWD LOCK mode by pushing the AWD LOCK button(the indicatorlight goes off). Driving on normal roads with AWD LOCK mode(especially, when cornering) may cause mechanical noise orvibration. The noise and vibration will disappear when the AWD LOCK mode is deactivated. Some parts of the power train may be dam- aged by prolonged driving with the noise and vibration. • When the AWD LOCK mode is deactivated, a shock may be felt as the drive poweris delivered entirely to the front wheels. This shock is not a mechanical failure. 5 16
