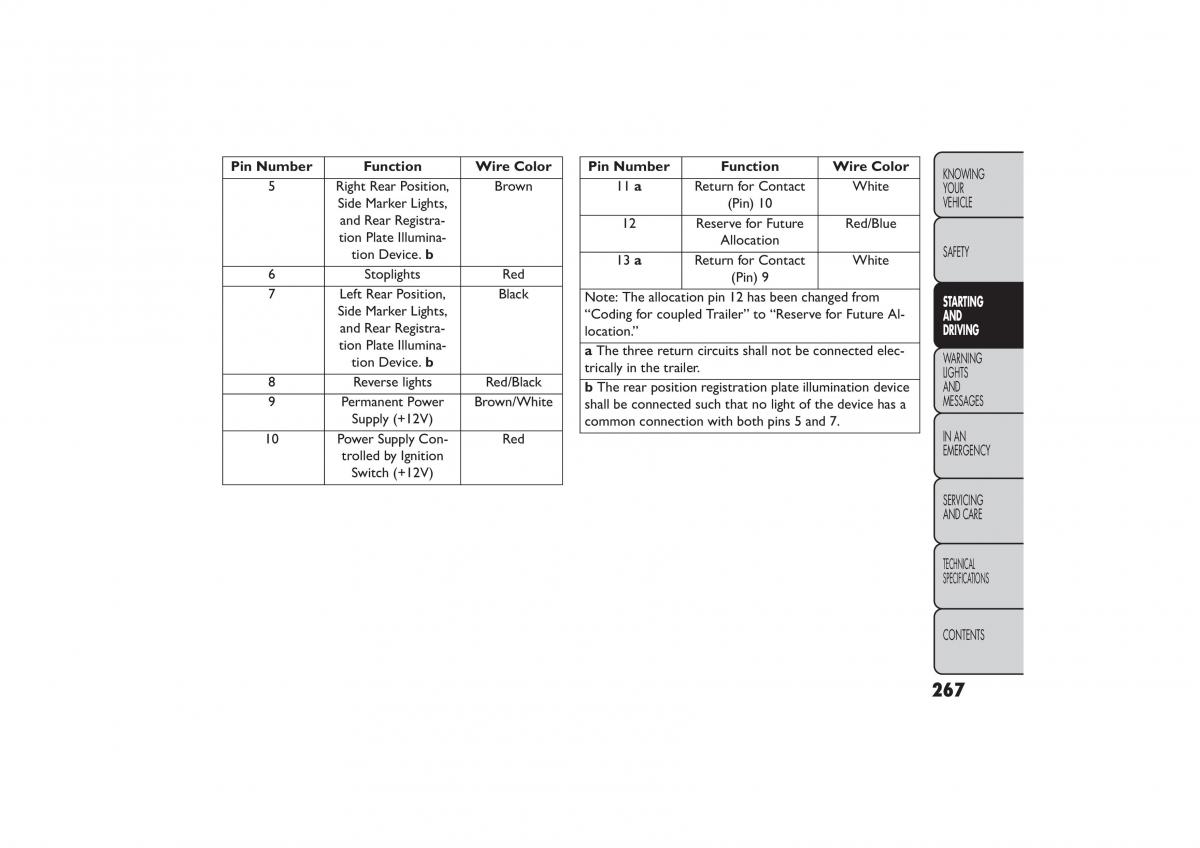

Pin Number Function WireColor Pin Number Function WireColor KNOWING
5 Right Rear Position,Brown11 a Return for ContactWhiteYOUR
Side Marker Lights, (Pin) 10 VEHICLE
and Rear Registra- 12 Reserve for FutureRed/Blue
tion Plate Illumina- Allocation
tion Device. b 13 a Return for ContactWhiteSAFETY
6 Stoplights Red (Pin) 9
7 Left Rear Position,BlackNote: The allocation pin 12 has been changed fromSTARTING
Side Marker Lights, “Coding for coupled Trailer” to “Reserve for Future Al-AND
and Rear Registra- location.” DRIVING
tion Plate Illumina- a The three return circuits shall not be connected elec-WARNING
tion Device. b trically in the trailer. LIGHTS
8 Reverse lightsRed/BlackbTherear position registration plate illumination deviceAND
9 Permanent PowerBrown/Whiteshall be connected such that no light of the device has aMESSAGES
Supply (+12V) commonconnection with both pins 5 and 7.
10 Power Supply Con-Red IN AN
trolled by Ignition EMERGENCY
Switch (+12V)
SERVICING
ANDCARE
TECHNICAL
SPECIFICATIONS
