from owners manual to the vehicle Mercedes CLK, year of production 1997 - 2003:

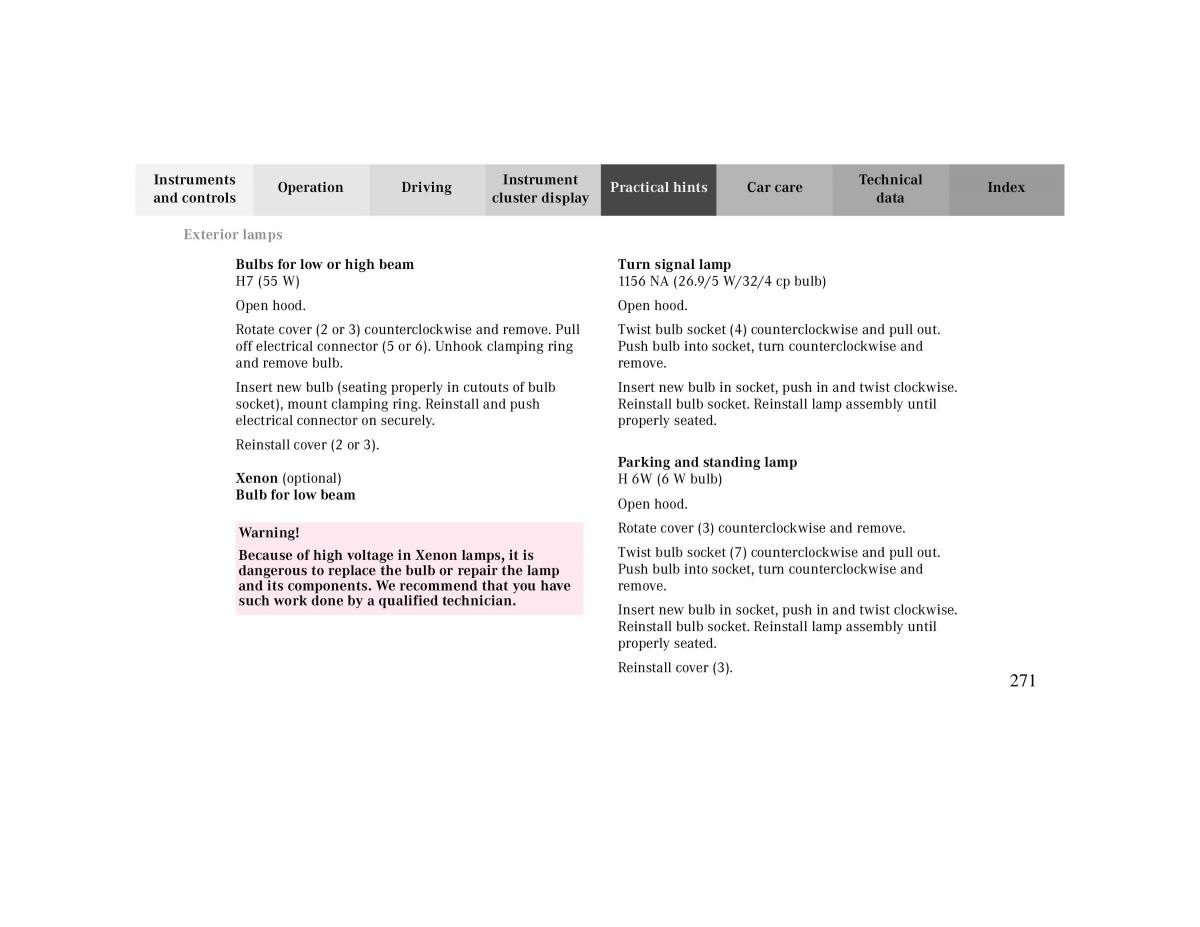

Instruments OperationDrivingInstrument Practical hintsCar careTechnicalIndex
and controls cluster display data
Exterior lamps
Bulbs for low or high beamTurn signal lamp
H7 (55 W) 1156 NA (26.9/5 W/32/4 cp bulb)
Open hood. Open hood.
Rotate cover (2 or 3) counterclockwise and remove. Pull Twist bulb socket (4) counterclockwise and pull out.
off electrical connector (5 or 6). Unhook clamping ring Push bulb into socket, turn counterclockwise and
and remove bulb. remove.
Insert new bulb (seating properly in cutouts of bulb Insert new bulb in socket, push in and twist clockwise.
socket), mount clamping ring. Reinstall and push Reinstall bulb socket. Reinstall lamp assembly until
electrical connector on securely.properly seated.
Reinstall cover (2 or 3).
Parking and standing lamp
Xenon (optional) H6W (6Wbulb)
Bulb for low beam Open hood.
Warning! Rotate cover (3) counterclockwise and remove.
Because of high voltage in Xenon lamps, it is Twist bulb socket (7) counterclockwise and pull out.
dangerous to replace the bulb or repair the lamp Push bulb into socket, turn counterclockwise and
and its components. We recommend that you have remove.
such work done by a qualified technician.Insert new bulb in socket, push in and twist clockwise.
Reinstall bulb socket. Reinstall lamp assembly until
properly seated.
Reinstall cover (3). 271
