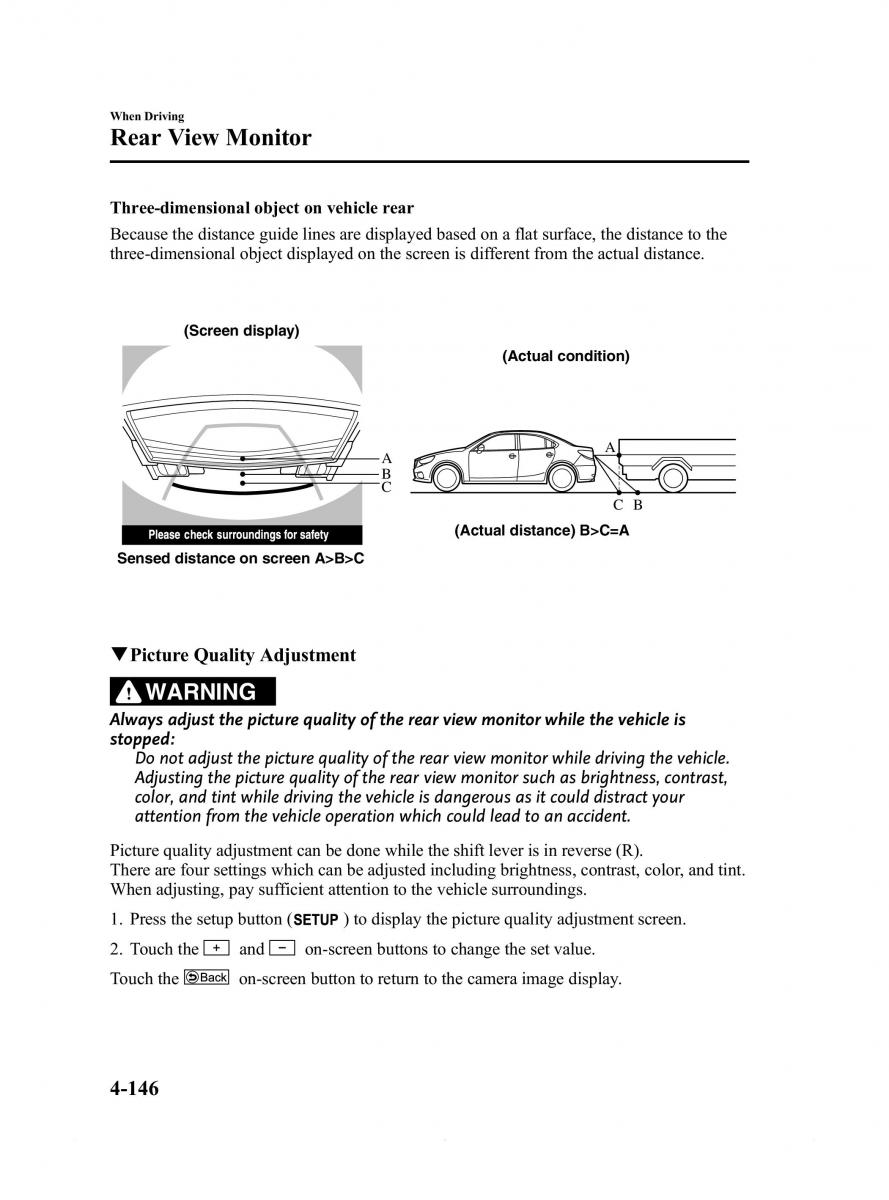

Mazda6_8DQ8-EA-13L_Edition3 Page270
Friday, June 13 2014 6:21 PM
Black plate (270,1)
WhenDriving
RearViewMonitor
Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a flat surface, the distance to the
three-dimensional object displayed on the screen is different from the actual distance.
(Screen display)
(Actual condition)
A A
B
C
CB
(Actual distance) B>C=A
Sensed distance on screen A>B>C
qPictureQualityAdjustment
WARNING
Always adjust the picture quality of the rear view monitor while the vehicle is
stopped:
Donotadjust the picture quality of the rear view monitor while driving the vehicle.
Adjusting the picture quality of the rear view monitor such as brightness, contrast,
color, and tint while driving the vehicle is dangerous as it could distract your
attention from the vehicle operation which could lead to an accident.
Picture quality adjustment can be done while the shift lever is in reverse (R).
There are four settings which can be adjusted including brightness, contrast, color, and tint.
Whenadjusting, pay sufficient attention to the vehicle surroundings.
1. Press the setup button () to display the picture quality adjustment screen.
2. Touch the and on-screen buttons to change the set value.
Touch the on-screen button to return to the camera image display.
4-146
Form No.8DQ8-EA-13L
