owners manual Suzuki Grand Vitara

all ratings: 1 average rating: 5

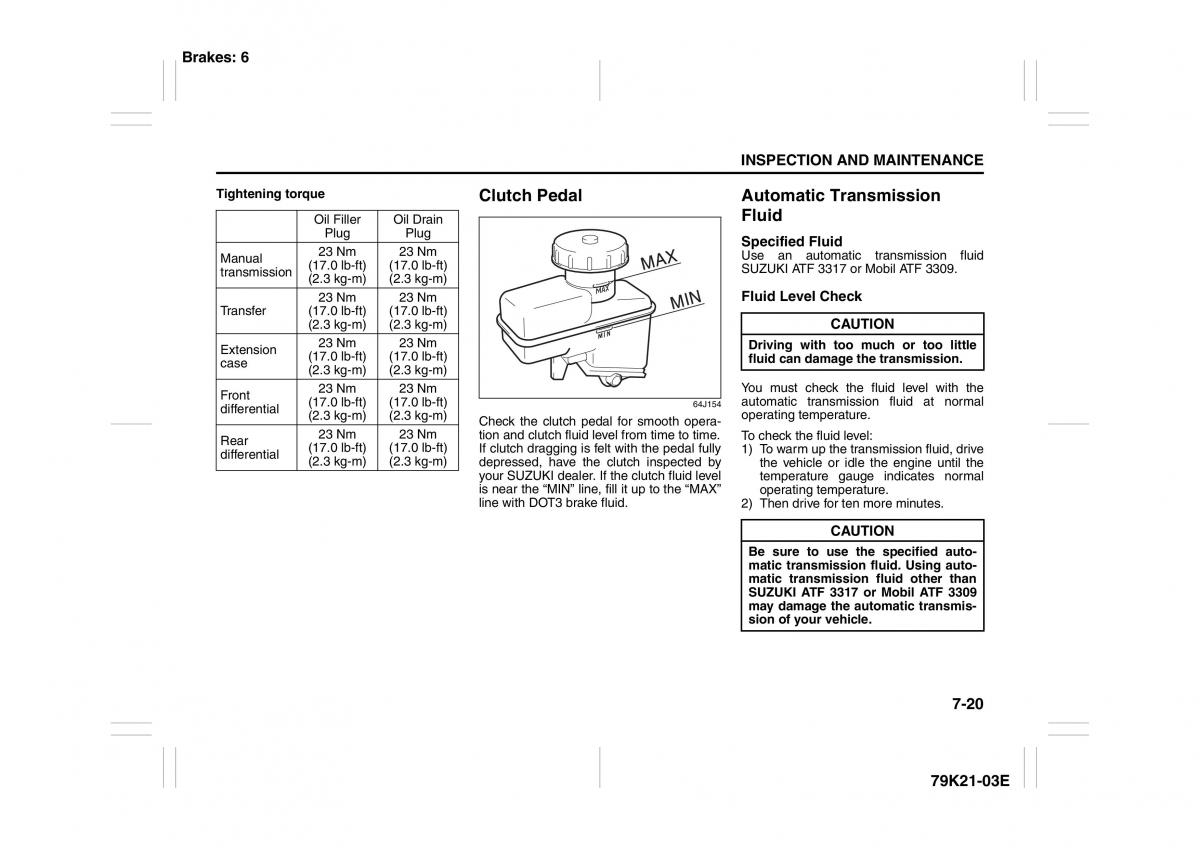

Brakes: 6 INSPECTION AND MAINTENANCE Tightening torque Clutch Pedal Automatic Transmission Oil Filler Oil Drain Fluid Plug Plug Specified Fluid Manual 23 Nm 23 Nm Use an automatic transmission fluid transmission (17.0 lb-ft) (17.0 lb-ft) SUZUKI ATF 3317 or Mobil ATF 3309. (2.3 kg-m) (2.3 kg-m) 23 Nm 23 Nm Fluid Level Check Transfer (17.0 lb-ft) (17.0 lb-ft) (2.3 kg-m) (2.3 kg-m) CAUTION Extension 23 Nm 23 Nm Driving with too much or too little case (17.0 lb-ft) (17.0 lb-ft) fluid can damage the transmission. (2.3 kg-m) (2.3 kg-m) Front 23 Nm 23 Nm You must check the fluid level with the differential (17.0 lb-ft) (17.0 lb-ft) 64J154 automatic transmission fluid at normal (2.3 kg-m) (2.3 kg-m) operating temperature. Check the clutch pedal for smooth opera- Rear 23 Nm 23 Nm tion and clutch fluid level from time to time.To check the fluid level: differential (17.0 lb-ft) (17.0 lb-ft) If clutch dragging is felt with the pedal fully 1) To warm up the transmission fluid, drive (2.3 kg-m) (2.3 kg-m) depressed, have the clutch inspected by the vehicle or idle the engine until the your SUZUKI dealer. If the clutch fluid leveltemperature gauge indicates normal is near the “MIN” line, fill it up to the “MAX”operating temperature. line with DOT3 brake fluid. 2) Then drive for ten more minutes. CAUTION Be sure to use the specified auto- matic transmission fluid. Using auto- matic transmission fluid other than SUZUKI ATF 3317 or Mobil ATF 3309 may damage the automatic transmis- sion of your vehicle. 7-20 79K21-03E
