text version of content this owner's manual page from owners manual to the vehicle Mazda 2, year of production 2014:

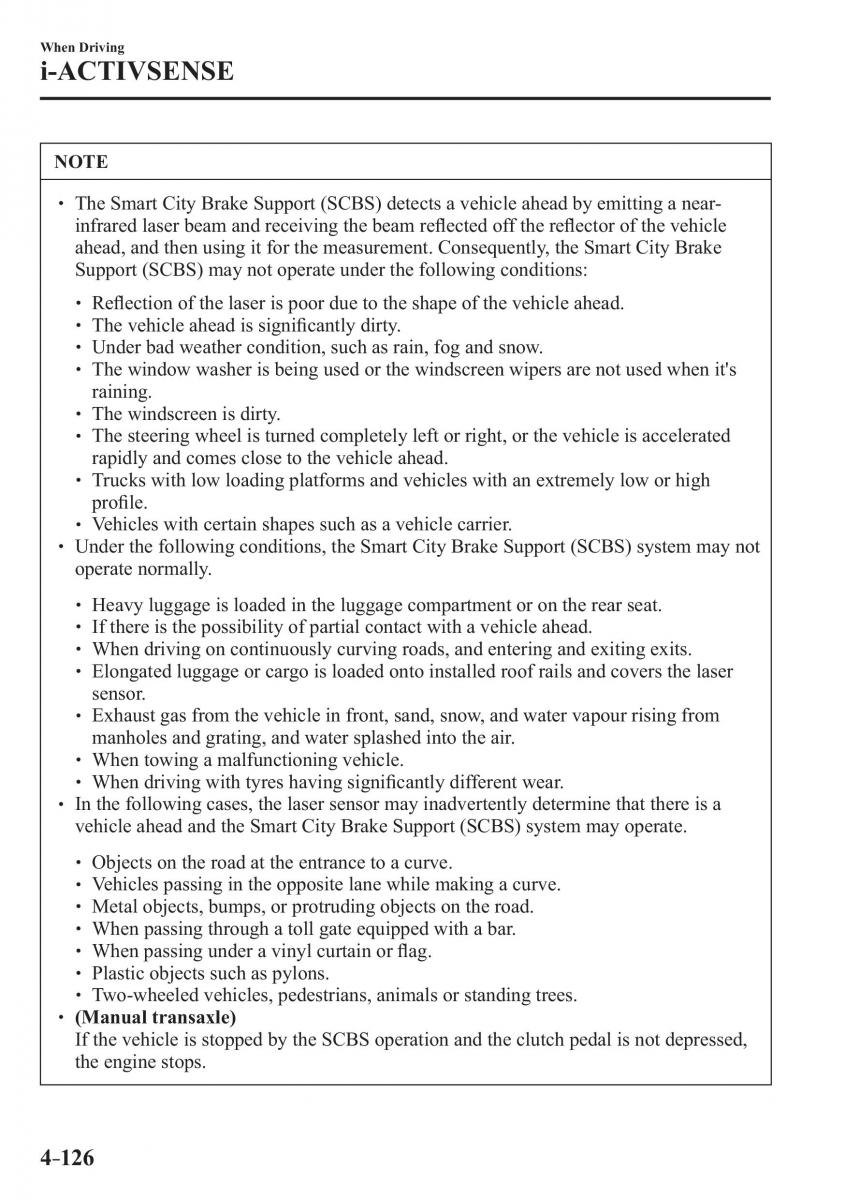

When Driving i-ACTIVSENSE NOTE The Smart City Brake Support (SCBS) detects a vehicle ahead by emitting a near- infrared laser beam and receiving the beam reﬂ ected off the reﬂ ector of the vehicle ahead, and then using it for the measurement. Consequently, the Smart City Brake Support (SCBS) may not operate under the following conditions: Reﬂ ection of the laser is poor due to the shape of the vehicle ahead. The vehicle ahead is signiﬁ cantly dirty. Under bad weather condition, such as rain, fog and snow. The window washer is being used or the windscreen wipers are not used when it's raining. The windscreen is dirty. The steering wheel is turned completely left or right, or the vehicle is accelerated rapidly and comes close to the vehicle ahead. Trucks with low loading platforms and vehicles with an extremely low or high proﬁ le. Vehicles with certain shapes such as a vehicle carrier. Under the following conditions, the Smart City Brake Support (SCBS) system may not operate normally. Heavy luggage is loaded in the luggage compartment or on the rear seat. If there is the possibility of partial contact with a vehicle ahead. When driving on continuously curving roads, and entering and exiting exits. Elongated luggage or cargo is loaded onto installed roof rails and covers the laser sensor. Exhaust gas from the vehicle in front, sand, snow, and water vapour rising from manholes and grating, and water splashed into the air. When towing a malfunctioning vehicle. When driving with tyres having signiﬁ cantly different wear. In the following cases, the laser sensor may inadvertently determine that there is a vehicle ahead and the Smart City Brake Support (SCBS) system may operate. Objects on the road at the entrance to a curve. Vehicles passing in the opposite lane while making a curve. Metal objects, bumps, or protruding objects on the road. When passing through a toll gate equipped with a bar. When passing under a vinyl curtain or ﬂ ag. Plastic objects such as pylons. Two-wheeled vehicles, pedestrians, animals or standing trees. (Manual transaxle) If the vehicle is stopped by the SCBS operation and the clutch pedal is not depressed, the engine stops. 4–126 .B[EB@&$&&-@&EJUJPOJOEC
