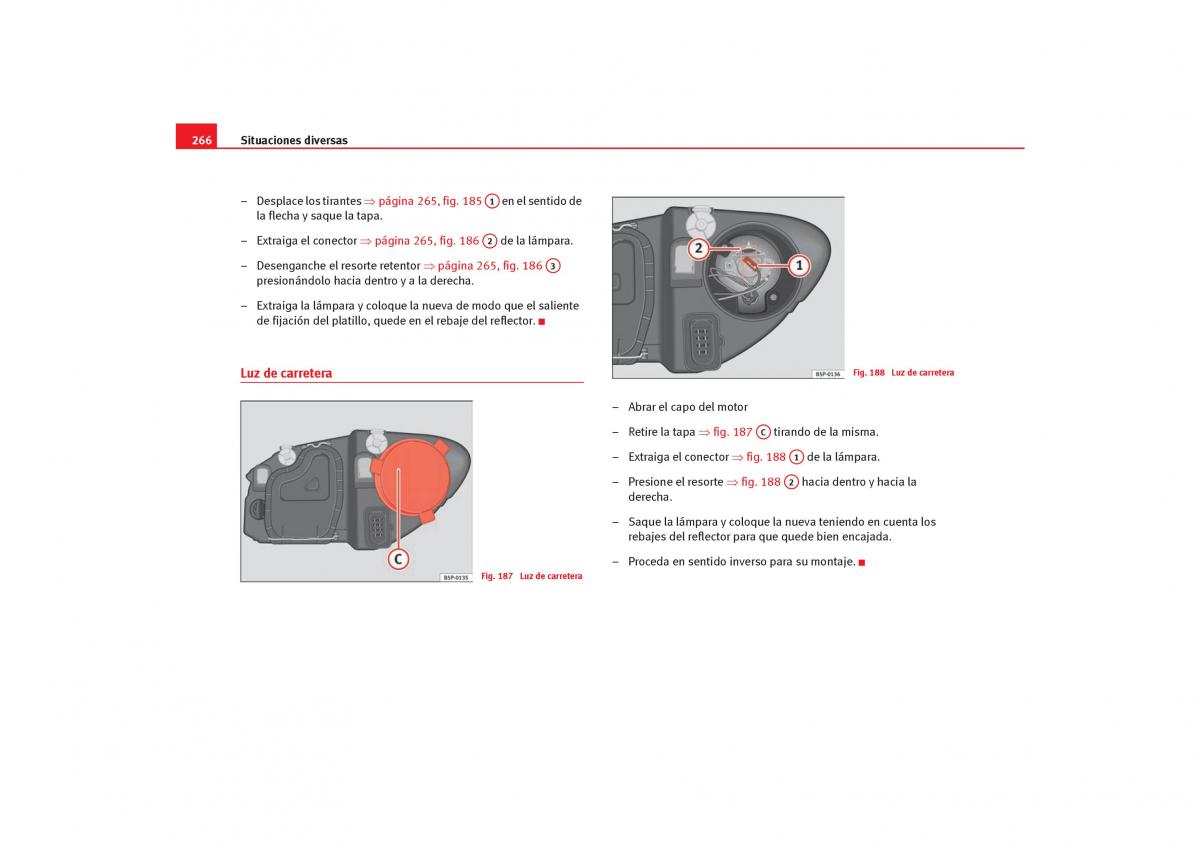

s3rk.3.book Seite 266 Montag, 26. Februar 2007 2:05 14
266 Situaciones diversas
– Desplace los tirantes ⇒ página 265, fig. 185 1 en el sentido de
A
la flecha y saque la tapa.
– Extraiga el conector ⇒página265, fig.186 2 de la lámpara.
A
3
– Desenganche el resorte retentor ⇒ página 265, fig. 186 A
presionándolo hacia dentro y a la derecha.
– Extraiga la lámpara y coloque la nueva de modo que el saliente
de fijación del platillo, quede en el rebaje del reflector.
Luz de carretera Fig. 188 Luz de carretera
–Abrar el capo del motor
C
– Retire la tapa ⇒fig. 187 A tirando de la misma.
– Extraiga el conector ⇒ fig. 188 1 de la lámpara.
A
– Presione el resorte ⇒fig. 188 2 hacia dentro y hacia la
A
derecha.
– Saque la lámpara y coloque la nueva teniendo en cuenta los
rebajes del reflector para que quede bien encajada.
– Proceda en sentido inverso para su montaje.
Fig. 187 Luz de carretera
