text version of content this owner's manual page from owners manual to the vehicle Citroen DS4, year of production 2011:

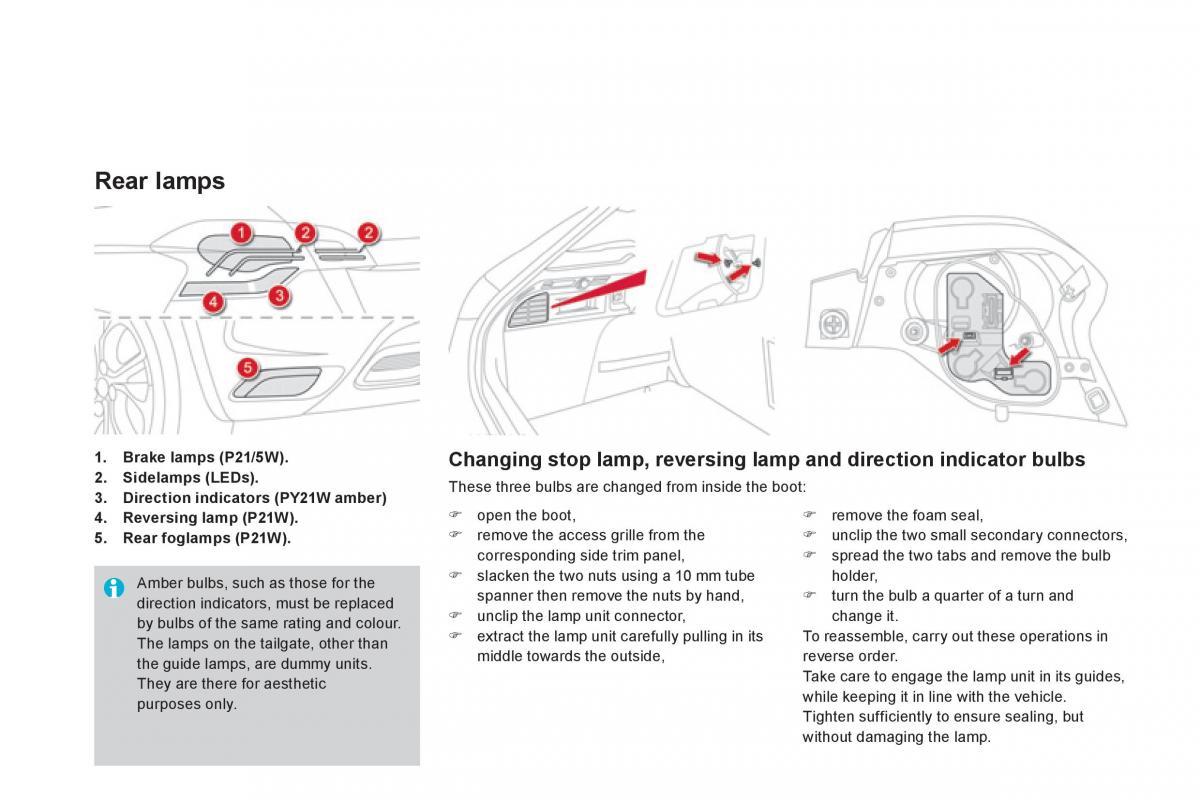

Re ar lamps 1. Brake lamps (P21/5W). C hanging stop lamp, reversing lamp and direction indicator bulbs 2. Sidelamps (LEDs). These three bulbs are changed from inside the boot: 3. Direction indicators (PY21W amber) 4. Reversing lamp (P21W).  open the boot,  remove the foam seal, 5. Rear foglamps (P21W).  remove the access grille from the  unclip the two small secondary connectors, corresponding side trim panel,  spread the two tabs and remove the bulb Amber bulbs, such as those for the  slacken the two nuts using a 10 mm tube holder, direction indicators, must be replaced spanner then remove the nuts by hand,  turn the bulb a quarter of a turn and by bulbs of the same rating and colour.  unclip the lamp unit connector, change it. The lamps on the tailgate, other than  extract the lamp unit carefully pulling in its To reassemble, carry out these operations in the guide lamps, are dummy units. middle towards the outside, reverse order. They are there for aesthetic Take care to engage the lamp unit in its guides, purposes only. while keeping it in line with the vehicle. Tighten sufficiently to ensure sealing, but without damaging the lamp.
