owners manual Ford Mustang

all ratings: 0 average rating: 5

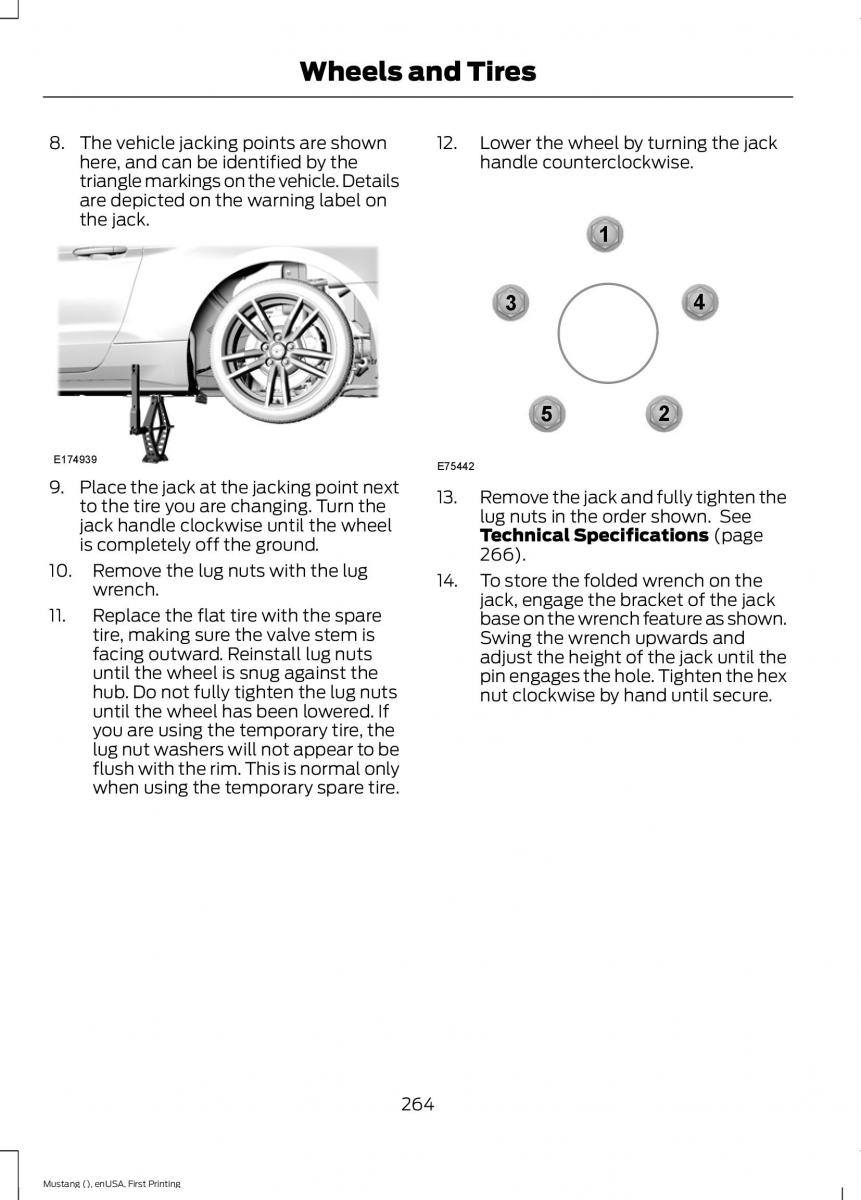

Wheels and Tires 8. The vehicle jacking points are shown 12. Lower the wheel by turning the jack here, and can be identified by the handle counterclockwise. triangle markings on the vehicle. Details are depicted on the warning label on the jack. 1 3 4 5 2 E174939 E75442 9. Place the jack at the jacking point next 13. Remove the jack and fully tighten the to the tire you are changing. Turn the lug nuts in the order shown. See jack handle clockwise until the wheel Technical Specifications (page is completely off the ground. 266). 10. Remove the lug nuts with the lug 14. To store the folded wrench on the wrench. jack, engage the bracket of the jack 11. Replace the flat tire with the spare base on the wrench feature as shown. tire, making sure the valve stem is Swing the wrench upwards and facing outward. Reinstall lug nuts adjust the height of the jack until the until the wheel is snug against the pin engages the hole. Tighten the hex hub. Do not fully tighten the lug nuts nut clockwise by hand until secure. until the wheel has been lowered. If you are using the temporary tire, the lug nut washers will not appear to be flush with the rim. This is normal only when using the temporary spare tire. 264 Mustang (), enUSA, First Printing
