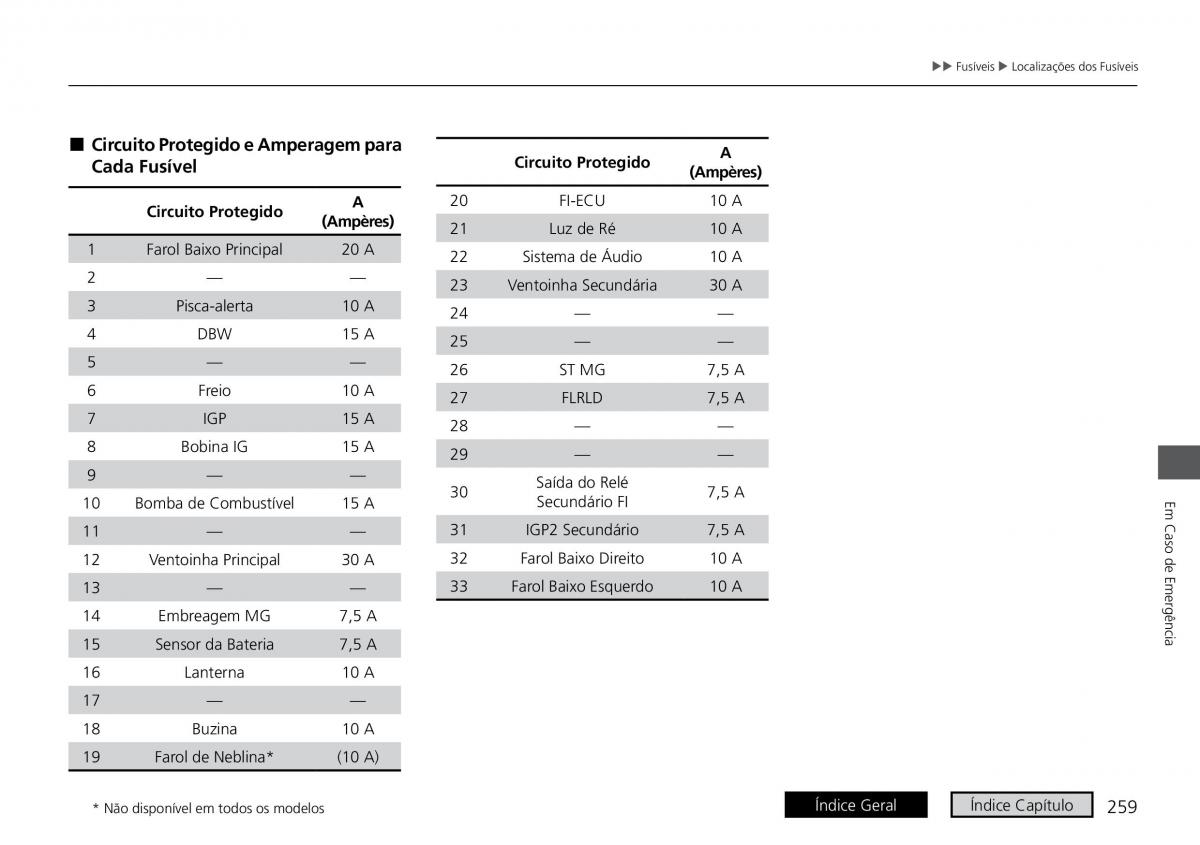

XX Fusíveis X Localizações dos Fusíveis
Circuito Protegido e Amperagem para A
Cada Fusível Circuito Protegido (Ampères)
Circuito Protegido A 20 FI-ECU 10 A
(Ampères) 21 Luz de Ré 10 A
1 Farol Baixo Principal20 A 22 Sistema de Áudio 10 A
2 — — 23 Ventoinha Secundária 30 A
3 Pisca-alerta 10 A 24 — —
4 DBW 15 A 25 — —
5 — — 26 ST MG 7,5 A
6 Freio 10 A 27 FLRLD 7,5 A
7 IGP 15 A 28 — —
8 Bobina IG 15 A 29 — —
9 — — Saída do Relé
30 7,5 A
10 Bomba de Combustível 15 A Secundário FI Em Caso de Emergência
11 — — 31 IGP2 Secundário 7,5 A
12 Ventoinha Principal 30 A 32 Farol Baixo Direito 10 A
13 — — 33 Farol Baixo Esquerdo 10 A
14 Embreagem MG 7,5 A
15 Sensor da Bateria 7,5 A
16 Lanterna 10 A
17 — —
18 Buzina 10 A
19 Farol de Neblina* (10 A)
Índice Geral Índice Capítulo
* Não disponível em todos os modelos 259
