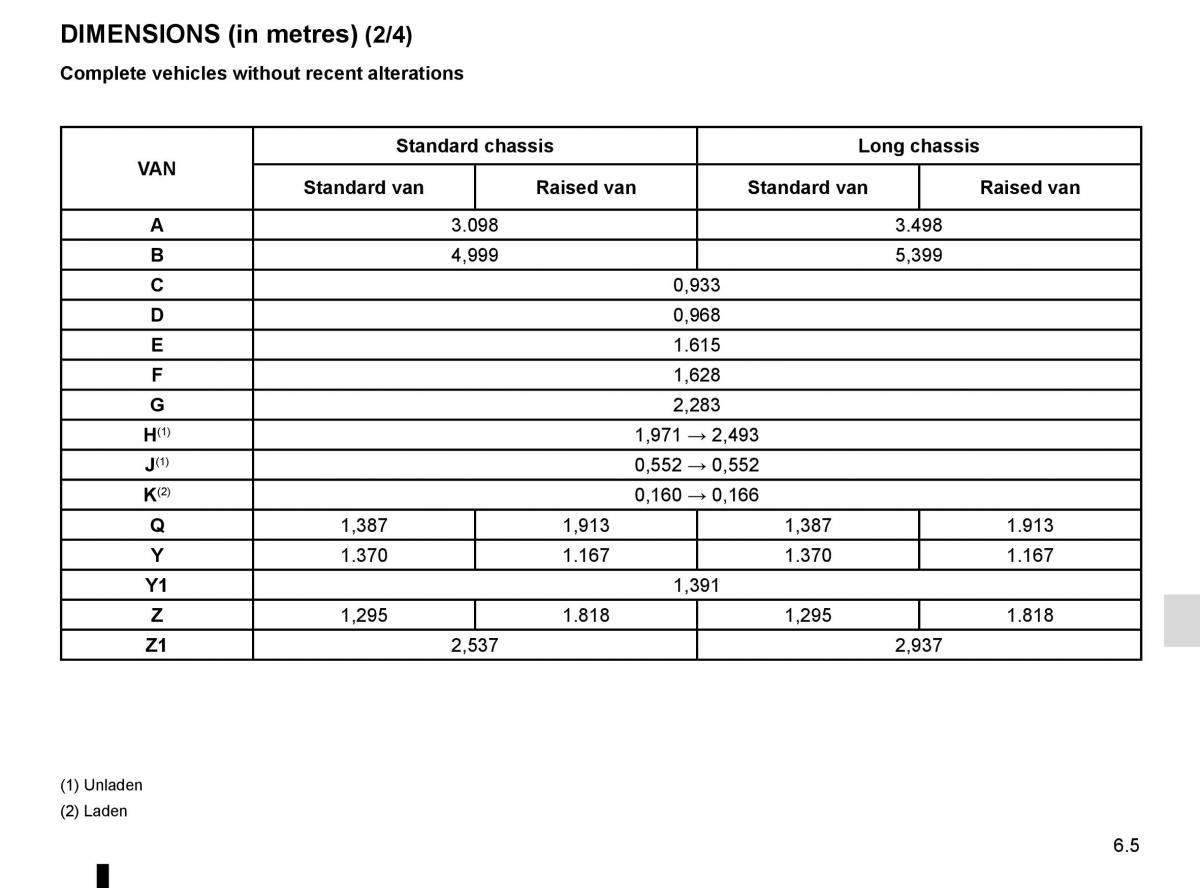

DIMENSIONS (in metres) (2/4)
Complete vehicles without recent alterations
Standard chassis Long chassis
VAN Standard van Raised van Standard van Raised van
A 3.098 3.498
B 4,999 5,399
C 0,933
D 0,968
E 1.615
F 1,628
G 2,283
H(1) 1,971 → 2,493
(1)
J 0,552 → 0,552
K(2) 0,160 → 0,166
Q 1,387 1,913 1,387 1.913
Y 1.370 1.167 1.370 1.167
Y1 1,391
Z 1,295 1.818 1,295 1.818
Z1 2,537 2,937
(1) Unladen
(2) Laden
6.5
