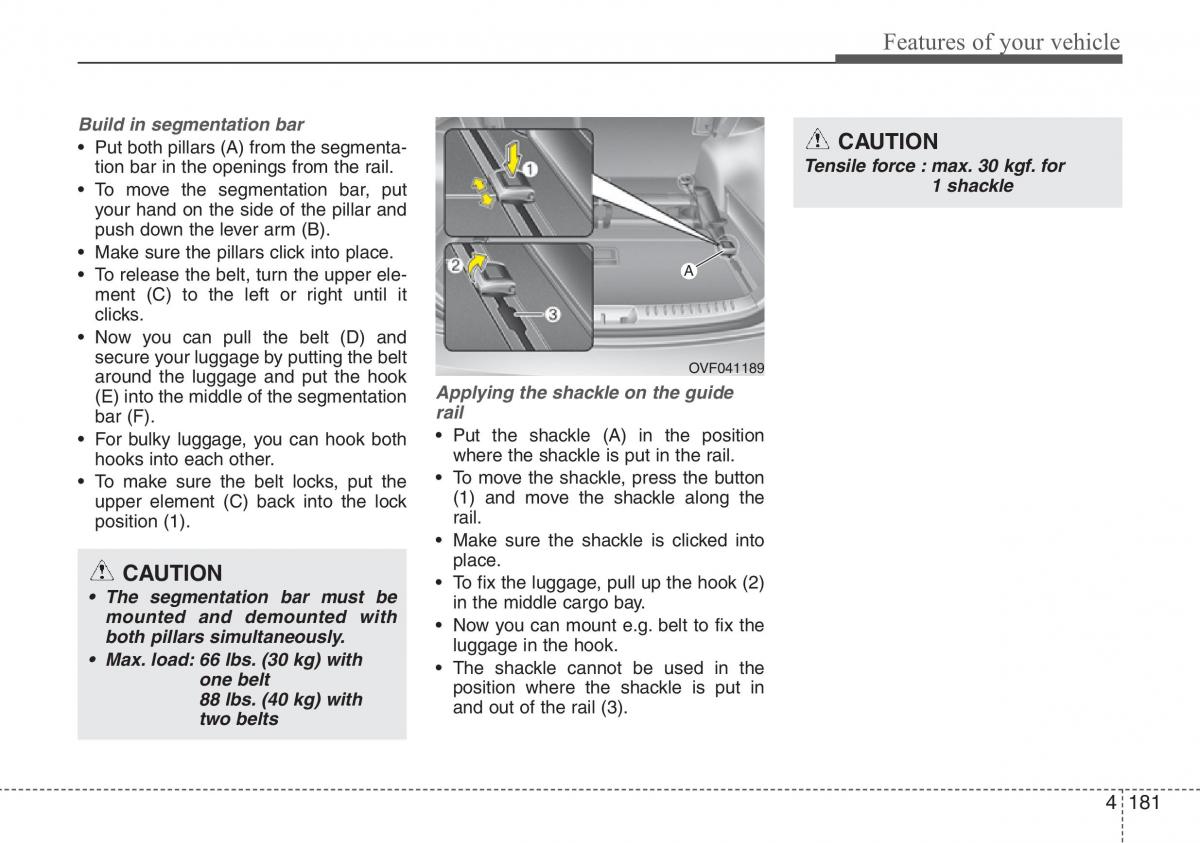

Features of your vehicle Build in segmentation bar CAUTION • Put both pillars (A) from the segmenta- tion bar in the openings from the rail. Tensile force : max. 30 kgf. for • To move the segmentation bar, put 1 shackle your hand on the side of the pillar and push down the lever arm (B). • Make sure the pillars click into place. • To release the belt, turn the upper ele- A ment (C) to the left or right until it clicks. • Now you can pull the belt (D) and secure your luggage by putting the belt OVF041189 around the luggage and put the hook (E) into the middle of the segmentationApplying the shackle on the guide bar (F). rail • Put the shackle (A) in the position • For bulky luggage, you can hook both hooks into each other. where the shackle is put in the rail. • To move the shackle, press the button • To make sure the belt locks, put the (1) and move the shackle along the upper element (C) back into the lock position (1). rail. • Make sure the shackle is clicked into CAUTION place. • To fix the luggage, pull up the hook (2) • The segmentation bar must be in the middle cargo bay. mounted and demounted with both pillars simultaneously. • Now you can mount e.g. belt to fix the • Max. load: 66 lbs. (30 kg) with luggage in the hook. one belt • The shackle cannot be used in the 88 lbs. (40 kg) with position where the shackle is put in two belts and out of the rail (3). 4181
