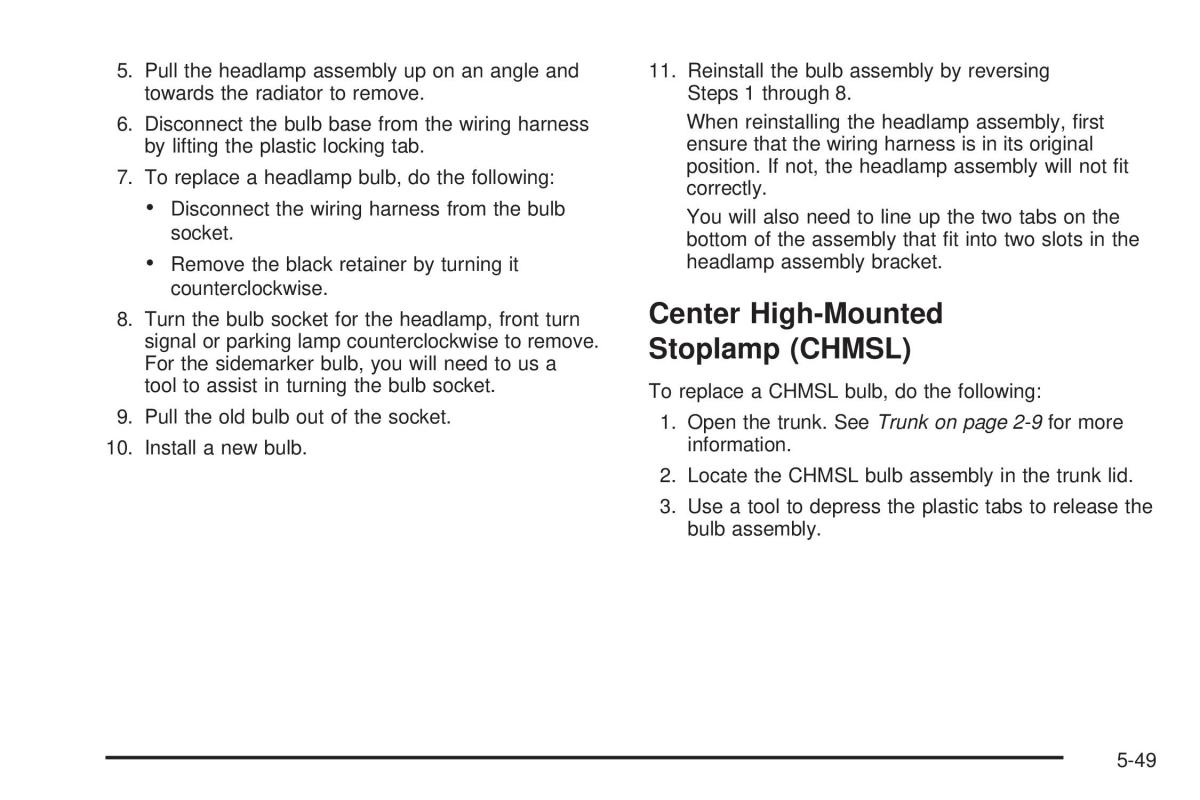

text version of content this owner's manual page from owners manual to the vehicle Chevrolet Cobalt, year of production 2004 - 2010:

5. Pull the headlamp assembly up on an angle and11. Reinstall the bulb assembly by reversing towards the radiator to remove. Steps 1 through 8. 6. Disconnect the bulb base from the wiring harnessWhen reinstalling the headlamp assembly, ﬁrst by lifting the plastic locking tab.ensure that the wiring harness is in its original 7. To replace a headlamp bulb, do the following:position. If not, the headlamp assembly will not ﬁt • Disconnect the wiring harness from the bulbcorrectly. socket. You will also need to line up the two tabs on the bottom of the assembly that ﬁt into two slots in the • Remove the black retainer by turning itheadlamp assembly bracket. counterclockwise. Center High-Mounted 8. Turn the bulb socket for the headlamp, front turn signal or parking lamp counterclockwise to remove.Stoplamp (CHMSL) For the sidemarker bulb, you will need to us a tool to assist in turning the bulb socket.To replace a CHMSL bulb, do the following: 9. Pull the old bulb out of the socket.1. Open the trunk. See Trunk on page 2-9 for more 10. Install a new bulb. information. 2. Locate the CHMSL bulb assembly in the trunk lid. 3. Use a tool to depress the plastic tabs to release the bulb assembly. 5-49
