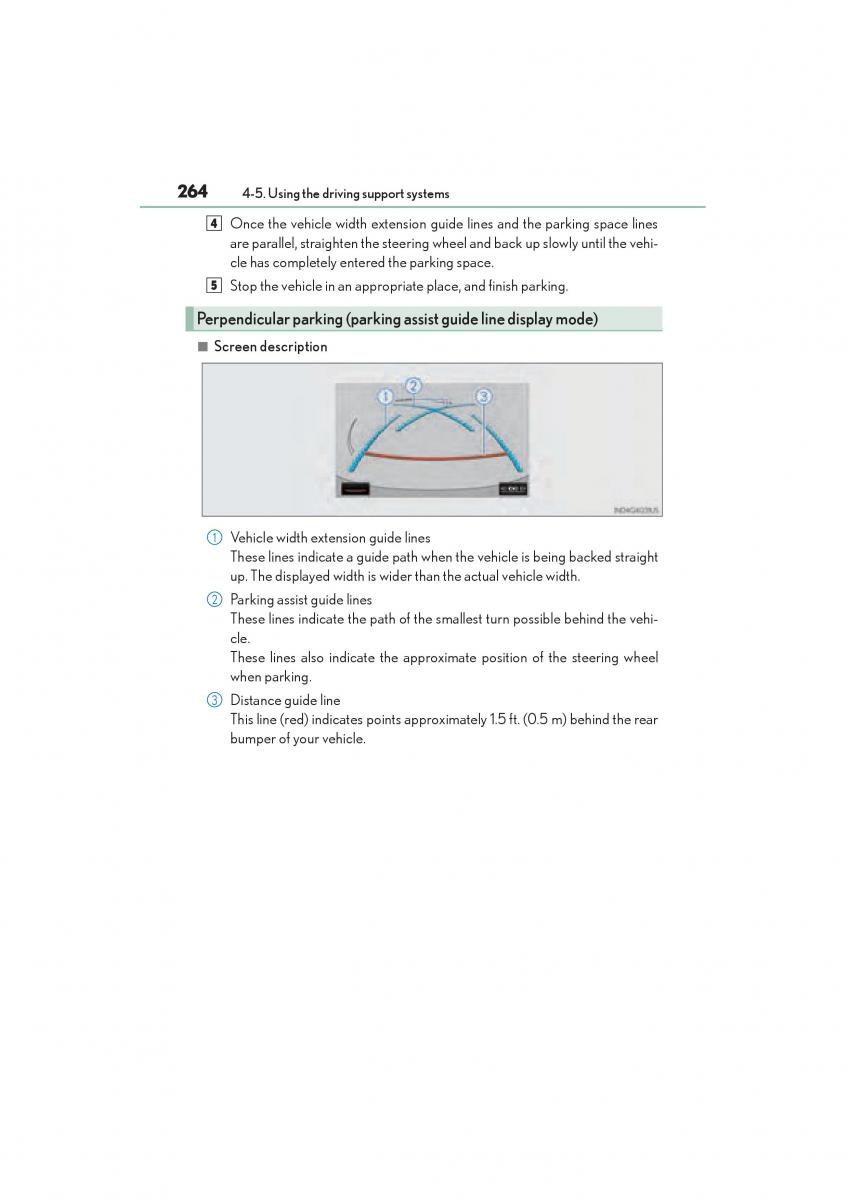

GX460_OM_OM60L72U_(U).book Page 264 Friday, May 16, 2014 3:03 PM 264 4-5. Using the driving support systems 4 Once the vehicle width extension guide lines and the parking space lines are parallel, straighten the steering wheel and back up slowly until the vehi- cle has completely entered the parking space. 5 Stop the vehicle in an appropriate place, and finish parking. Perpendicular parking (parking assist guide line display mode) ■ Screen description 1 Vehicle width extension guide lines These lines indicate a guide path when the vehicle is being backed straight up. The displayed width is wider than the actual vehicle width. 2 Parking assist guide lines These lines indicate the path of the smallest turn possible behind the vehi- cle. These lines also indicate the approximate position of the steering wheel when parking. 3 Distance guide line This line (red) indicates points approximately 1.5 ft. (0.5 m) behind the rear bumper of your vehicle. GX460_OM_OM60L72U_(U)
