text version of content this owner's manual page from owners manual to the vehicle Mercedes G, year of production 2004:

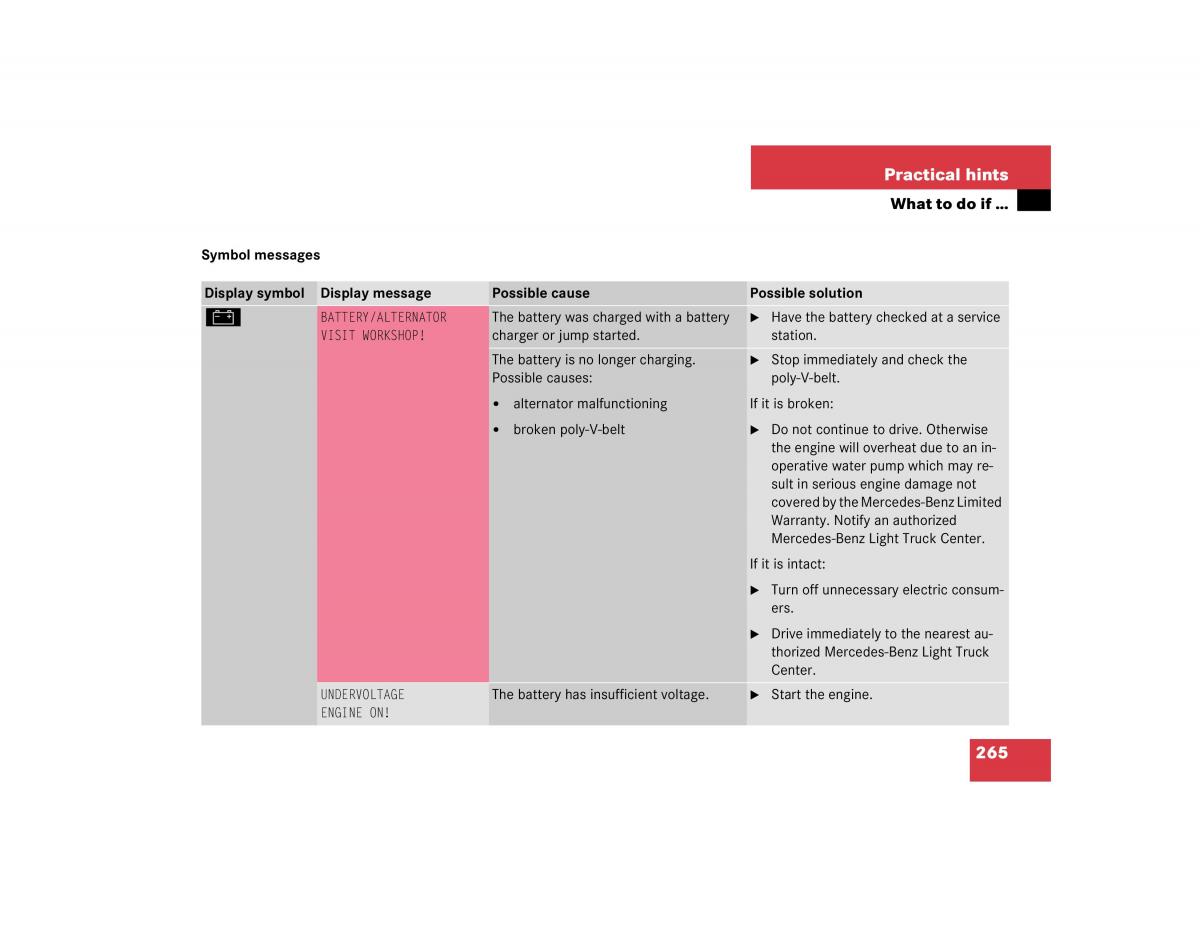

Practical hints What to do if Symbol messages Display symbolDisplay messagePossible cause Possible solution # BATTERY/ALTERNATORThe battery was charged with a battery Have the battery checked at a service VISIT WORKSHOP!charger or jump started. station. The battery is no longer charging. Stop immediately and check the Possible causes: poly-V-belt. alternator malfunctioningIf it is broken: broken poly-V-belt Do not continue to drive. Otherwise the engine will overheat due to an in- operative water pump which may re- sult in serious engine damage not covered by the Mercedes-Benz Limited Warranty. Notify an authorized Mercedes-Benz Light Truck Center. If it is intact: Turn off unnecessary electric consum- ers. Drive immediately to the nearest au- thorized Mercedes-Benz Light Truck Center. UNDERVOLTAGE The battery has insufficient voltage. Start the engine. ENGINE ON! 265
