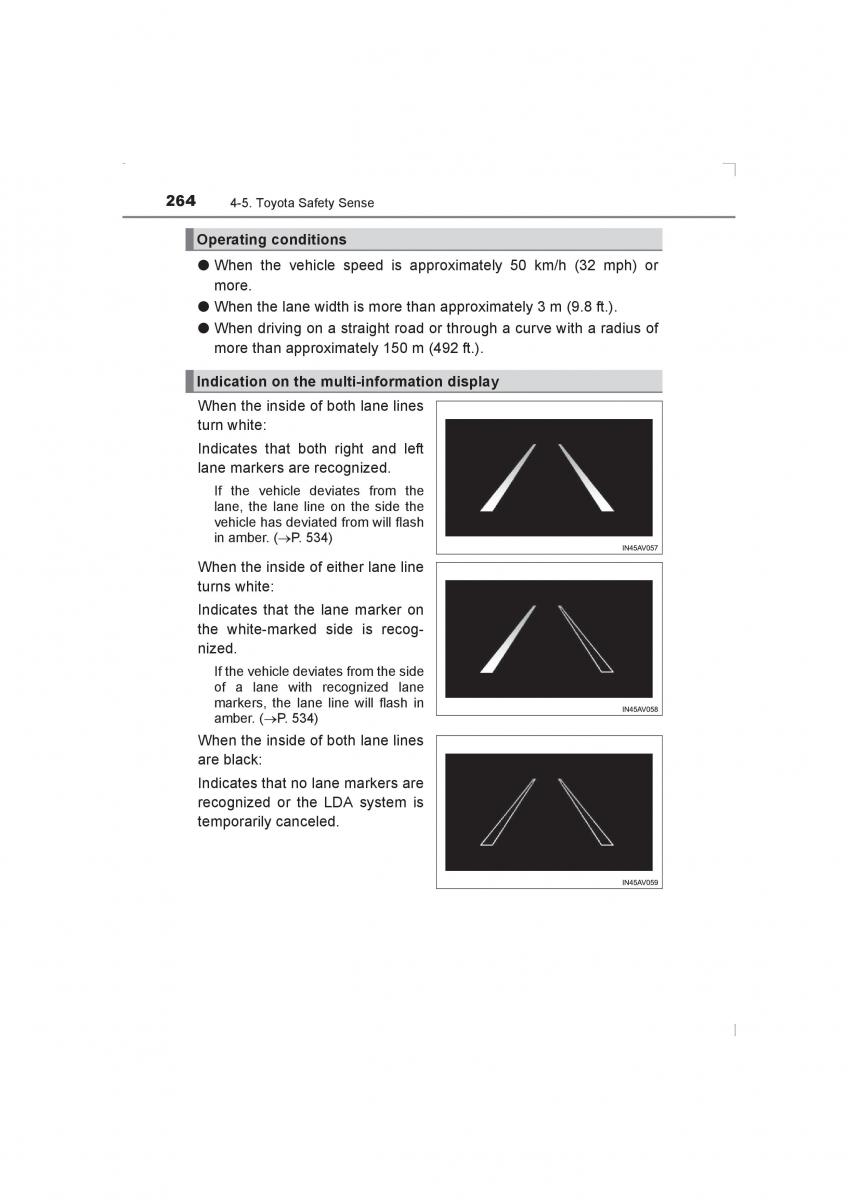

AVENSIS_OM_OM20C20E_(EE).book Page 264 Thursday, January 29, 2015 1:47 PM
264 4-5. Toyota Safety Sense
Operating conditions
●When the vehicle speed is approximately 50 km/h (32 mph) or
more.
●When the lane width is more than approximately 3 m (9.8 ft.).
●When driving on a straight road or through a curve with a radius of
more than approximately 150 m (492 ft.).
Indication on the multi-information display
When the inside of both lane lines
turn white:
Indicates that both right and left
lane markers are recognized.
If the vehicle deviates from the
lane, the lane line on the side the
vehicle has deviated from will flash
in amber. (→P. 534)
When the inside of either lane line
turns white:
Indicates that the lane marker on
the white-marked side is recog-
nized.
If the vehicle deviates from the side
of a lane with recognized lane
markers, the lane line will flash in
amber. (→P. 534)
When the inside of both lane lines
are black:
Indicates that no lane markers are
recognized or the LDA system is
temporarily canceled.
AVENSIS_OM_OM20C20E_(EE)
