text version of content this owner's manual page from owners manual to the vehicle Mazda 3, year of production 2003 - 2009:

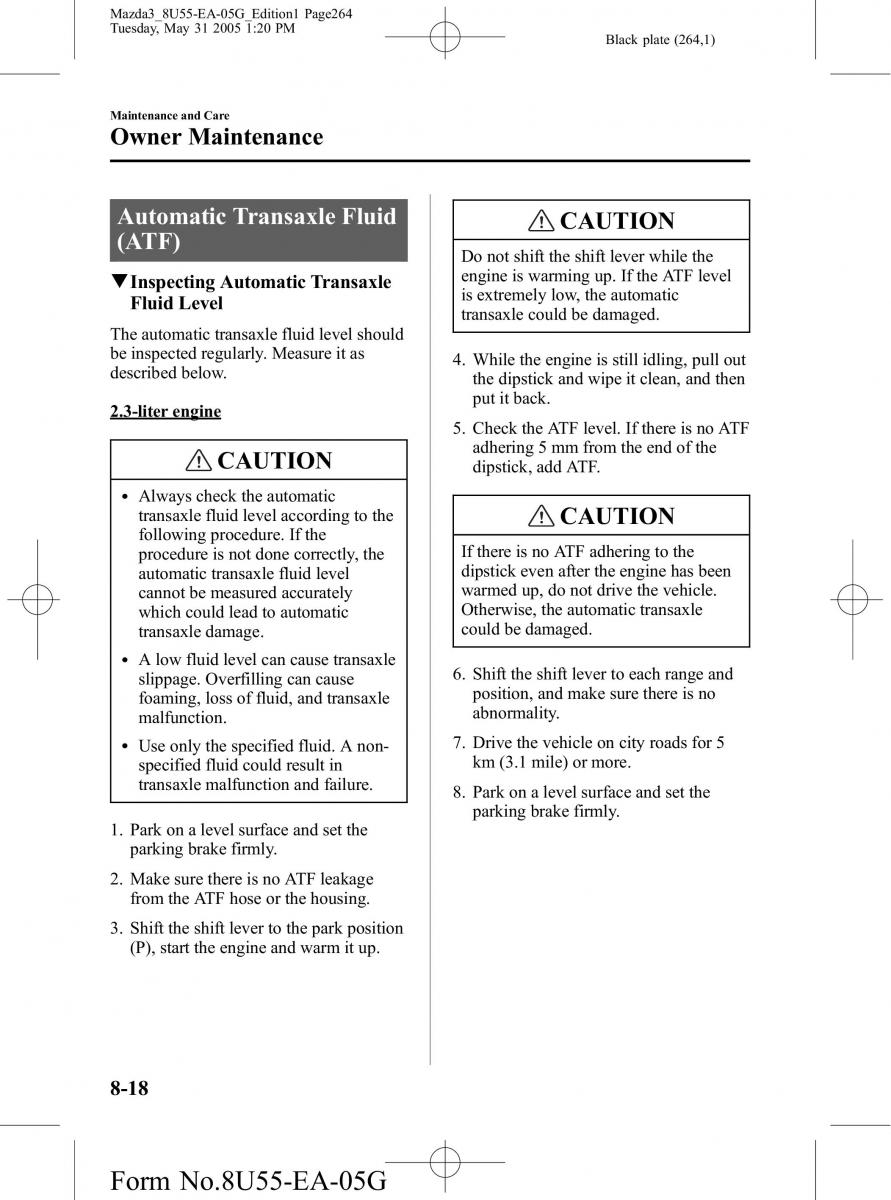

Mazda3_8U55-EA-05G_Edition1 Page264 Tuesday, May 31 2005 1:20 PM Black plate (264,1) MaintenanceandCare OwnerMaintenance Automatic Transaxle Fluid CAUTION (ATF) Donotshift the shift lever while the qInspecting Automatic Transaxle engine is warming up. If the ATF level Fluid Level is extremely low, the automatic transaxle could be damaged. Theautomatic transaxle fluid level should be inspected regularly. Measure it as 4. While the engine is still idling, pull out described below. the dipstick and wipe it clean, and then 2.3-liter engine put it back. 5. Check the ATF level. If there is no ATF CAUTION adhering 5 mm from the end of the dipstick, add ATF. l Always check the automatic transaxle fluid level according to the CAUTION following procedure. If the procedure is not done correctly, the If there is no ATF adhering to the automatic transaxle fluid level dipstick even after the engine has been cannot be measured accurately warmedup,donotdrive the vehicle. which could lead to automatic Otherwise, the automatic transaxle transaxle damage. could be damaged. l Alowfluid level can cause transaxle slippage. Overfilling can cause 6. Shift the shift lever to each range and foaming, loss of fluid, and transaxle position, and make sure there is no malfunction. abnormality. l Use only the specified fluid. A non- 7. Drive the vehicle on city roads for 5 specified fluid could result in km(3.1mile) or more. transaxle malfunction and failure. 8. Park on a level surface and set the parking brake firmly. 1. Park on a level surface and set the parking brake firmly. 2. Make sure there is no ATF leakage from the ATF hose or the housing. 3. Shift the shift lever to the park position (P), start the engine and warm it up. 8-18 Form No.8U55-EA-05G
