Mazda6_8DQ8-EA-13L_Edition3 Page263
Friday, June 13 2014 6:21 PM
Black plate (263,1)
WhenDriving
RearViewMonitor

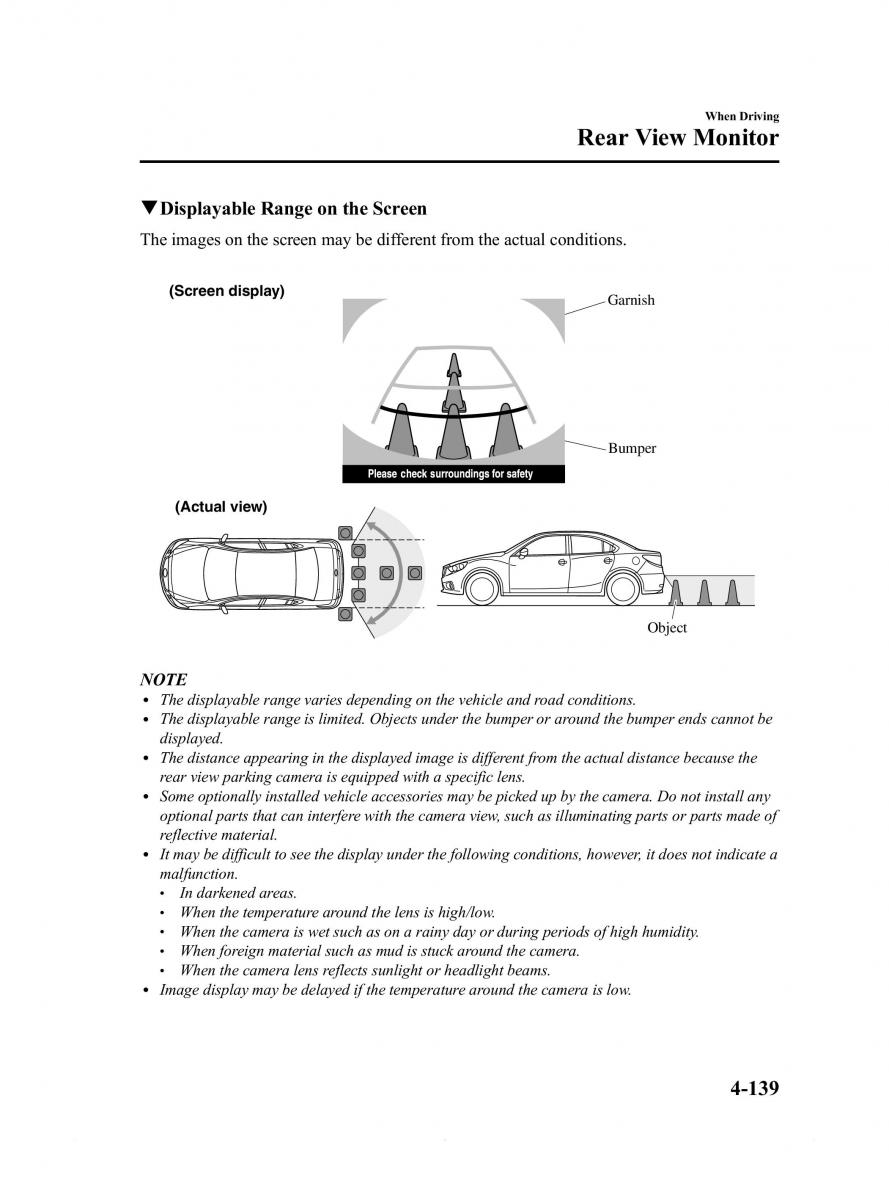

qDisplayable RangeontheScreen
Theimagesonthescreen may be different from the actual conditions.
(Screen display) Garnish
Bumper
(Actual view)
Object
NOTE
l Thedisplayable range varies depending on the vehicle and road conditions.
l Thedisplayable range is limited. Objects under the bumper or around the bumper ends cannot be
displayed.
l Thedistance appearing in the displayed image is different from the actual distance because the
rear view parking camera is equipped with a specific lens.
l Someoptionally installed vehicle accessories may be picked up by the camera. Do not install any
optional parts that can interfere with the camera view, such as illuminating parts or parts made of
reflective material.
l It may be difficult to see the display under the following conditions, however, it does not indicate a
malfunction.
l In darkened areas.
l Whenthetemperature around the lens is high/low.
l Whenthecameraiswetsuchasonarainydayorduringperiodsofhighhumidity.
l Whenforeign material such as mud is stuck around the camera.
l Whenthecameralensreflects sunlight or headlight beams.
l Image display may be delayed if the temperature around the camera is low.
4-139
