text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Lancer Sportback, year of production 2007 - 2016:

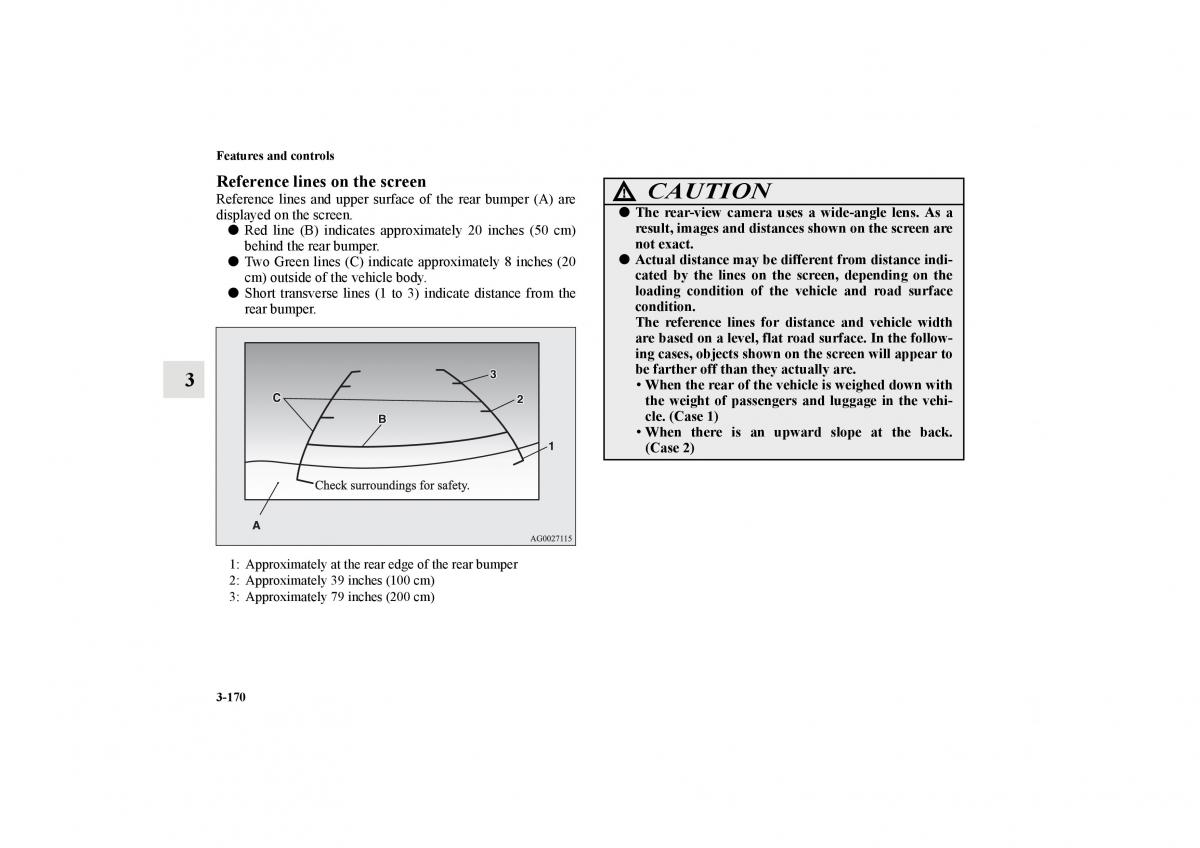

BK0151000US.book 170 ページ㧞㧜㧝㧞年㧟月㧞㧥日　木曜日　午後６時㧤分 Features and controls Reference lines on the screen ! CAUTION Reference lines and upper surface of the rear bumper (A) are●The rear-view camera uses a wide-angle lens. As a displayed on the screen. result, images and distances shown on the screen are ●Red line (B) indicates approximately 20 inches (50 cm)not exact. behind the rear bumper. ●Actual distance may be different from distance indi- ●Two Green lines (C) indicate approximately 8 inches (20cated by the lines on the screen, depending on the cm) outside of the vehicle body. loading condition of the vehicle and road surface ●Short transverse lines (1 to 3) indicate distance from thecondition. rear bumper. The reference lines for distance and vehicle width are based on a level, flat road surface. In the follow- ing cases, objects shown on the screen will appear to 3 be farther off than they actually are. When the rear of the vehicle is weighed down with the weight of passengers and luggage in the vehi- cle. (Case 1) When there is an upward slope at the back. (Case 2) 1: Approximately at the rear edge of the rear bumper 2: Approximately 39 inches (100 cm) 3: Approximately 79 inches (200 cm) 3-170
