owners manual Toyota Yaris

all ratings: 0 average rating: 5

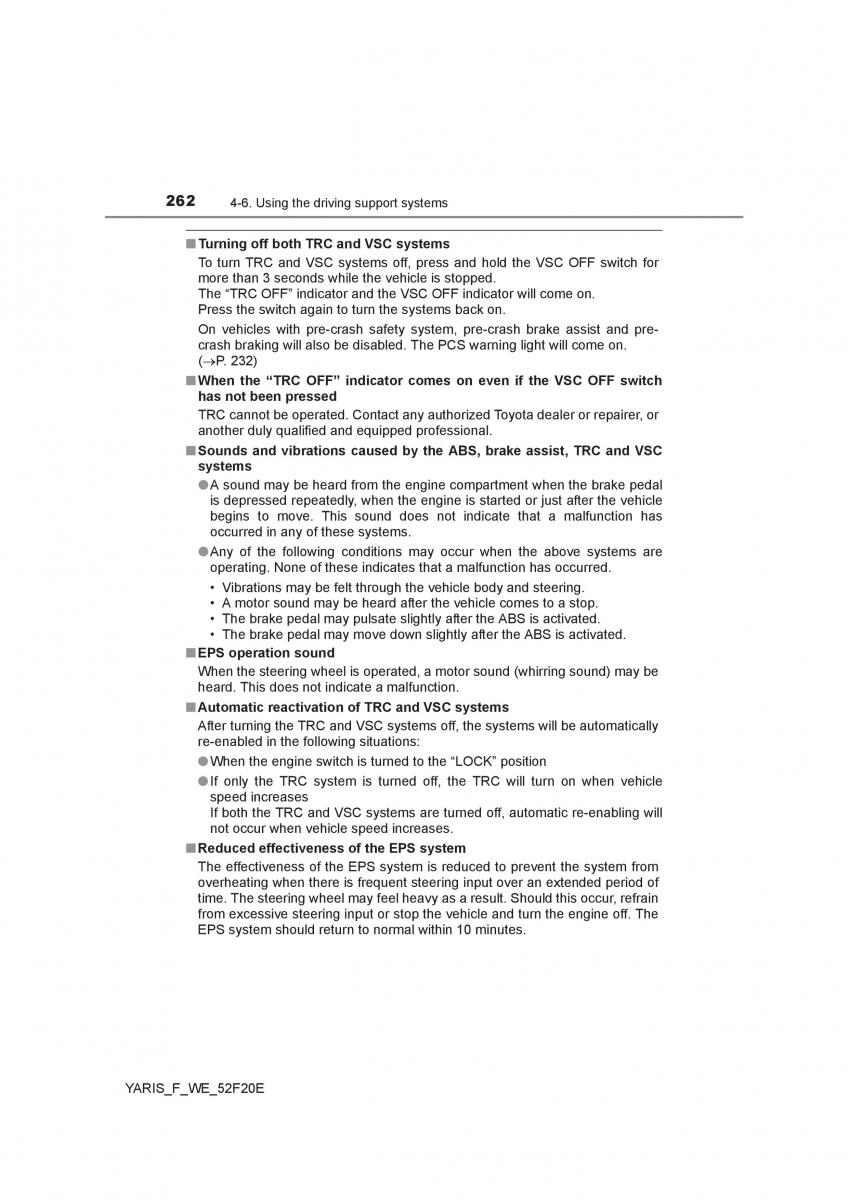

262 4-6. Using the driving support systems ■Turning off both TRC and VSC systems To turn TRC and VSC systems off, press and hold the VSC OFF switch for more than 3 seconds while the vehicle is stopped. The “TRC OFF” indicator and the VSC OFF indicator will come on. Press the switch again to turn the systems back on. On vehicles with pre-crash safety system, pre-crash brake assist and pre- crash braking will also be disabled. The PCS warning light will come on. (→P. 232) ■When the “TRC OFF” indicator comes on even if the VSC OFF switch has not been pressed TRC cannot be operated. Contact any authorized Toyota dealer or repairer, or another duly qualified and equipped professional. ■Sounds and vibrations caused by the ABS, brake assist, TRC and VSC systems ●A sound may be heard from the engine compartment when the brake pedal is depressed repeatedly, when the engine is started or just after the vehicle begins to move. This sound does not indicate that a malfunction has occurred in any of these systems. ●Any of the following conditions may occur when the above systems are operating. None of these indicates that a malfunction has occurred. • Vibrations may be felt through the vehicle body and steering. • A motor sound may be heard after the vehicle comes to a stop. • The brake pedal may pulsate slightly after the ABS is activated. • The brake pedal may move down slightly after the ABS is activated. ■EPS operation sound When the steering wheel is operated, a motor sound (whirring sound) may be heard. This does not indicate a malfunction. ■Automatic reactivation of TRC and VSC systems After turning the TRC and VSC systems off, the systems will be automatically re-enabled in the following situations: ●When the engine switch is turned to the “LOCK” position ●If only the TRC system is turned off, the TRC will turn on when vehicle speed increases If both the TRC and VSC systems are turned off, automatic re-enabling will not occur when vehicle speed increases. ■Reduced effectiveness of the EPS system The effectiveness of the EPS system is reduced to prevent the system from overheating when there is frequent steering input over an extended period of time. The steering wheel may feel heavy as a result. Should this occur, refrain from excessive steering input or stop the vehicle and turn the engine off. The EPS system should return to normal within 10 minutes. YARIS_F_WE_52F20E
