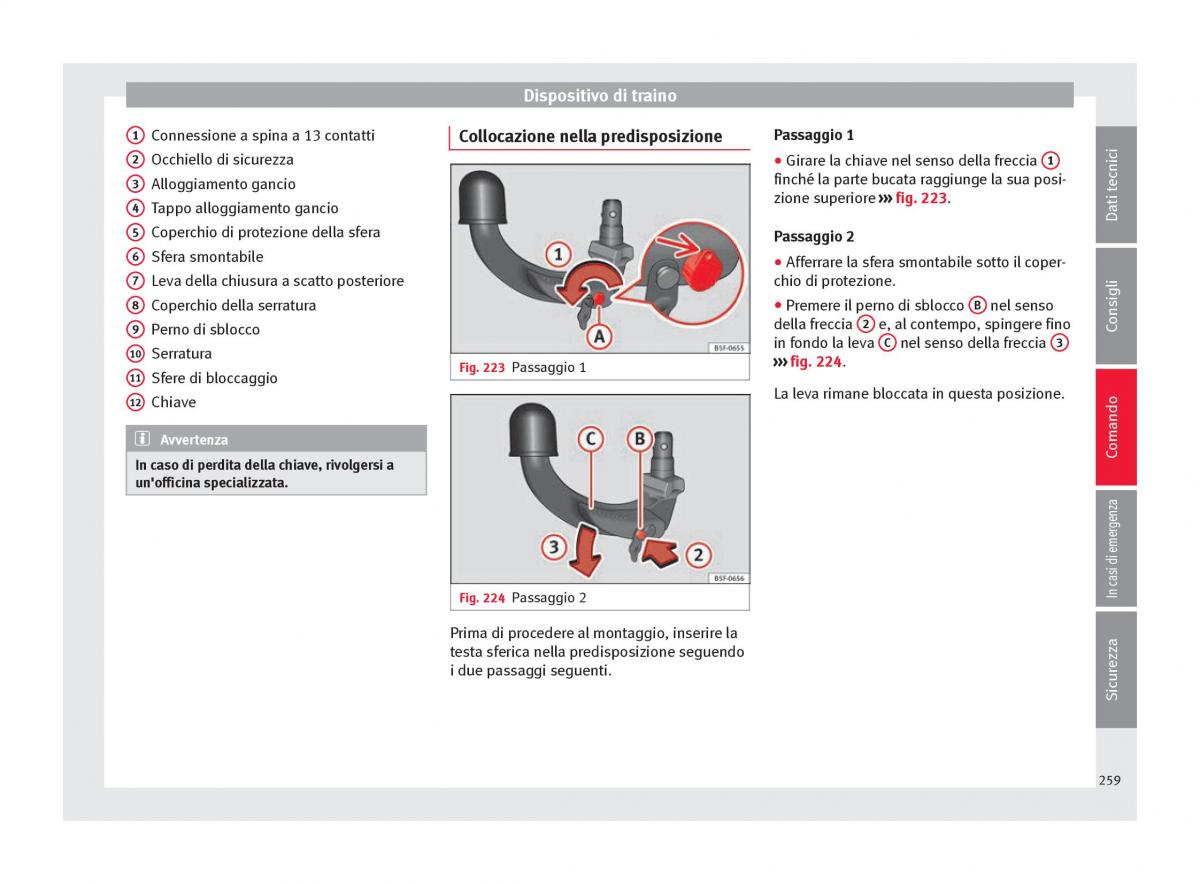

Dispositivo di traino
1 Connessione a spina a 13 contatti Passaggio 1
Collocazione nella predisposizione
i
2 c lo di sicurezza ●
Oc hiel Girare la chiave nel senso della freccia 1
nic
finché la parte bucata raggiunge la sua posi-ec
3 Alloggiamento gancio
zione superiore ››› fig. 223.
4 Tappo alloggiamento gancio
Dati t
5 Coperchio di protezione della sfera
Passaggio 2
6 Sfera smontabile
●Afferrare la sfera smontabile sotto il coper-
7 Leva della chiusura a scatto posteriore chio di protezione.
igli
● s
8 Coperchio della serratura Premere il perno di sblocco B nel senso
on
della freccia 2 e, al contempo, spingere fino
9 C
Perno di sblocco
ondo l C 3
in f a leva nel senso della freccia
10 Serratura
››› fig. 224.
Fig. 223 Passaggio 1
11 Sfere di bloccaggio
La leva rimane bloccata in questa posizione.
12 Chiave
ando
Avvertenza
om
C
In caso di perdita della chiave, rivolgersi a
un'officina specializzata.
a
z
en
g
i di emer
s
a
In c
Fig. 224 Passaggio 2
Prima di procedere al montaggio, inserire la
a
testa sferica nella predisposizione seguendo
ezz
i due passaggi seguenti.
ur
Sic
259
