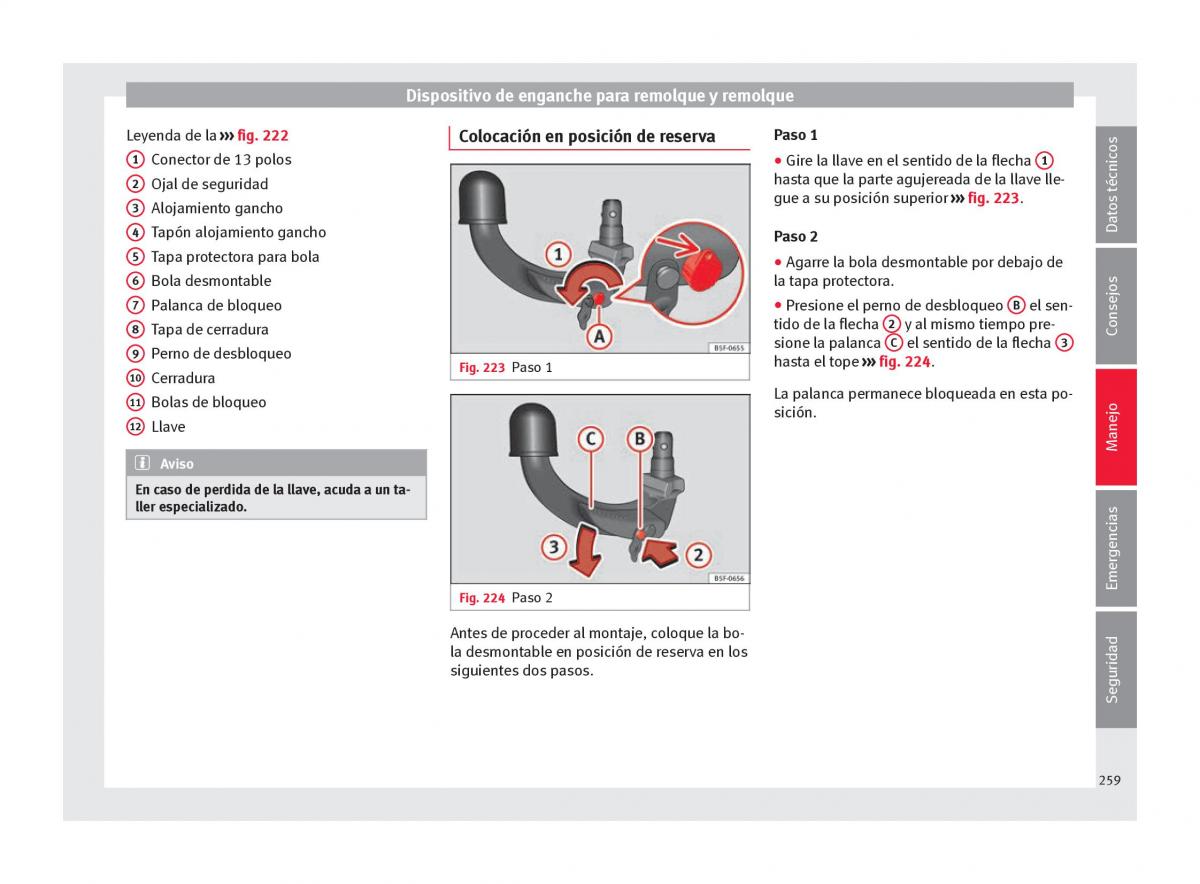

Dispositivo de enganche para remolque y remolque
Leyenda de la ››› fig. 222 Paso 1
Colocación en posición de reserva s
o
1 Conector de 13 polos ● 1
Gire la llave en el sentido de la flecha
nic
hasta que la parte agujereada de la llave lle-
2 Ojal de seguridad
téc
gue a su posición superior ››› fig. 223. s
3 o
Alojamiento gancho
Dat
4 Tapón alojamiento gancho
Paso 2
5 Tapa protectora para bola
●Agarre la bola desmontable por debajo de
6 s
Bola desmontable la tapa protectora.
o
7 Palanca de bloqueo ●Presione el perno de desbloqueo B el sen-sej
tido de la flecha 2 y al mismo tiempo pre-on
8 Tapa de cerradura C
ione l C 3
s a palanca el sentido de la flecha
9 Perno de desbloqueo
hasta el tope ››› fig. 224.
Fig. 223 Paso 1
10 Cerradura
La palanca permanece bloqueada en esta po-
11 Bolas de bloqueo
o
sición.
12 Llave
anej
M
Aviso
En caso de perdida de la llave, acuda a un ta-
ller especializado. s
a
i
enc
g
Emer
Fig. 224 Paso 2
Antes de proceder al montaje, coloque la bo-
d
a
la desmontable en posición de reserva en los
siguientes dos pasos.
gurid
Se
259
