owners manual Fiat Punto
owners manual Fiat Punto - year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011 - Fiat Punto II 2 owners manual EN
Document: pdf (4.7 MB) 298 pages
all ratings: 0 average rating: 5
text version of content this owner's manual page from owners manual to the vehicle Fiat Punto, year of production 1999 - 2011:

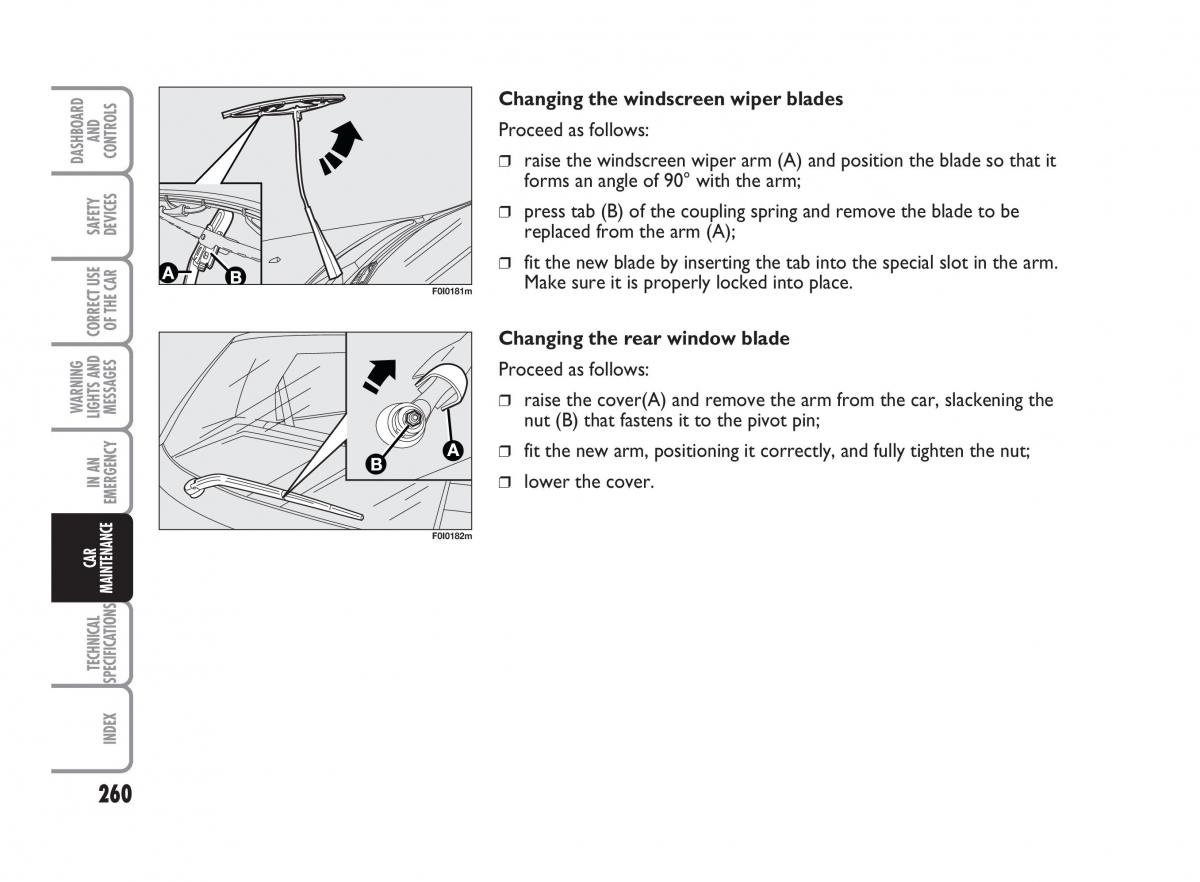

Changing the windscreen wiper blades
AND Proceed as follows:
DASHBOARDCONTROLS ❒ raise the windscreen wiper arm (A) and position the blade so that it
forms an angle of 90° with the arm;
❒ press tab (B) of the coupling spring and remove the blade to be
SAFETYDEVICES replaced from the arm (A);
❒ fit the new blade by inserting the tab into the special slot in the arm.
F0I0181m Make sure it is properly locked into place.
CORRECT USEOF THE CAR Changing the rear window blade
Proceed as follows:
ARNING ❒ raise the cover(A) and remove the arm from the car, slackening the
W LIGHTS ANDMESSAGES nut (B) that fastens it to the pivot pin;
❒ fit the new arm, positioning it correctly, and fully tighten the nut;
IN AN ❒ lower the cover.
EMERGENCY
F0I0182m
CAR
MAINTENANCE
TIONS
TECHNICALSPECIFICA
INDEX
260
