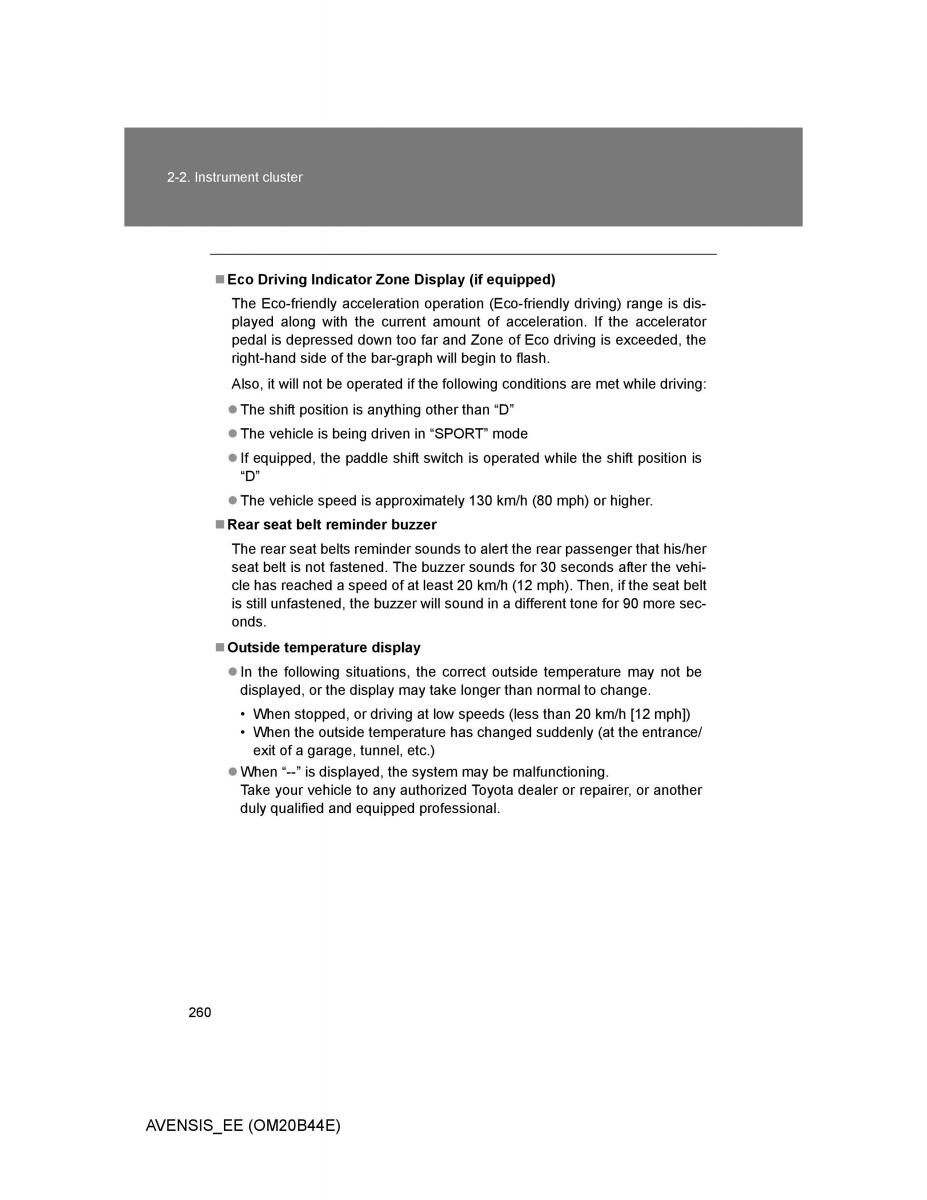

2-2. Instrument cluster
Eco Driving Indicator Zone Display (if equipped)
The Eco-friendly acceleration operation (Eco-friendly driving) range is dis-
played along with the current amount of acceleration. If the accelerator
pedal is depressed down too far and Zone of Eco driving is exceeded, the
right-hand side of the bar-graph will begin to flash.
Also, it will not be operated if the following conditions are met while driving:
The shift position is anything other than “D”
The vehicle is being driven in “SPORT” mode
If equipped, the paddle shift switch is operated while the shift position is
“D”
The vehicle speed is approximately 130 km/h (80 mph) or higher.
Rear seat belt reminder buzzer
The rear seat belts reminder sounds to alert the rear passenger that his/her
seat belt is not fastened. The buzzer sounds for 30 seconds after the vehi-
cle has reached a speed of at least 20 km/h (12 mph). Then, if the seat belt
is still unfastened, the buzzer will sound in a different tone for 90 more sec-
onds.
Outside temperature display
In the following situations, the correct outside temperature may not be
displayed, or the display may take longer than normal to change.
When stopped, or driving at low speeds (less than 20 km/h [12 mph])
When the outside temperature has changed suddenly (at the entrance/
exit of a garage, tunnel, etc.)
When “--” is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
260
AVENSIS_EE (OM20B44E)
